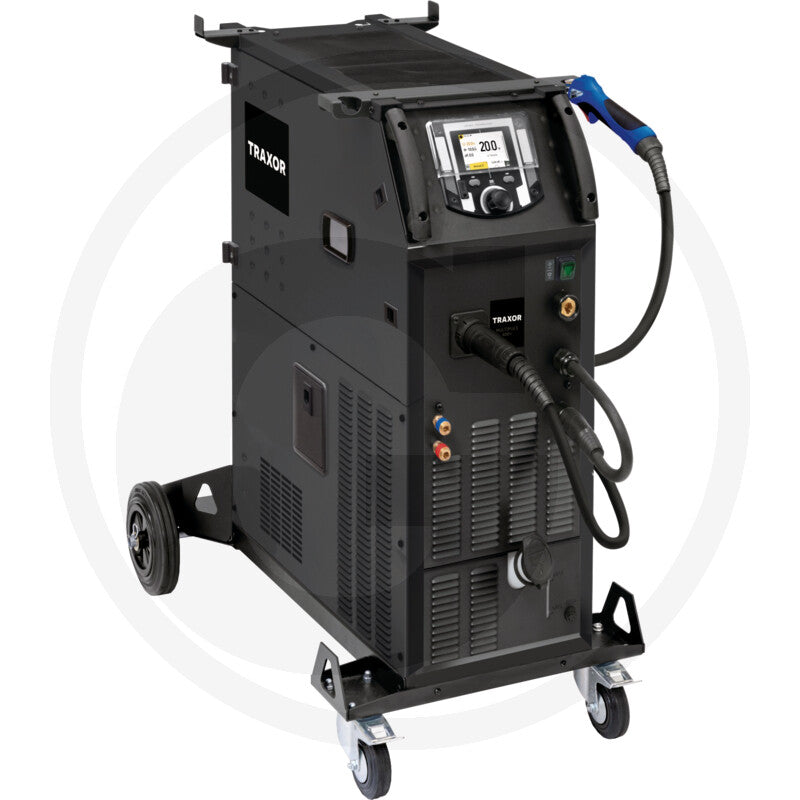

The TRAXOR Multipuls 400+ is a multi-process welding machine with an integrated cooling unit, handling MIG/MAG, TIG, and MMA welding processes. The pulsed MIG/MAG mode offers precise welding energy control, reducing deformation of welded parts, while pulsed synergies increase welding speed, reduce spatter, and improve weld aesthetics. It is well suited to welding thin aluminium and stainless steel components.

The unit offers 4 welding types: Standard for fast, simple welding; Pulsed for reduced spatter and reworking in all positions; ModulArc for joining aluminium alloys requiring flawless aesthetics; and Manual for experienced welders and DMOS welding. Digital arc control provides instant ignition with no crater at the end of the weld, and the pulsed arc can achieve up to 30% higher welding speeds.

Key Features

• Multi-process welder: MIG/MAG, TIG, MMA
• Integrated cooling unit
• 4 welding types: Standard, Pulsed, ModulArc, Manual
• Pulsed MIG/MAG mode for reduced deformation and spatter
• Up to 30% higher welding speeds with pulsed arc
• Digital arc control with instant ignition, no end-of-weld crater
• Wire feed drive with 4 rollers and digital encoder
• Suited to thin aluminium and stainless steel welding

Included with Delivery

• 1x MIG 500 torch, 4m
• 1x hose set, 4m (with carbon core)
• 1x earth terminal, 70mm², 4m
• 2x wire feed roller B 0.8/1.0
• 2x wire feed roller B 1.0/1.2
• 1x wearing parts box, MB 501
• 1x contact tube, 0.8mm, steel
• 1x wire core, steel, 4m, 0.6/0.8mm
• First filling of coolant
