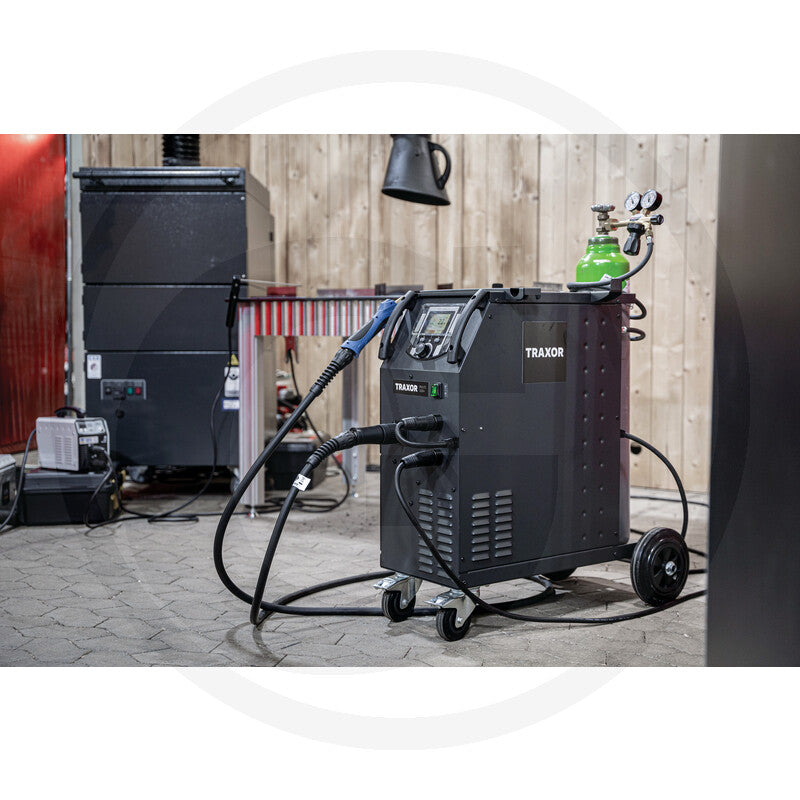

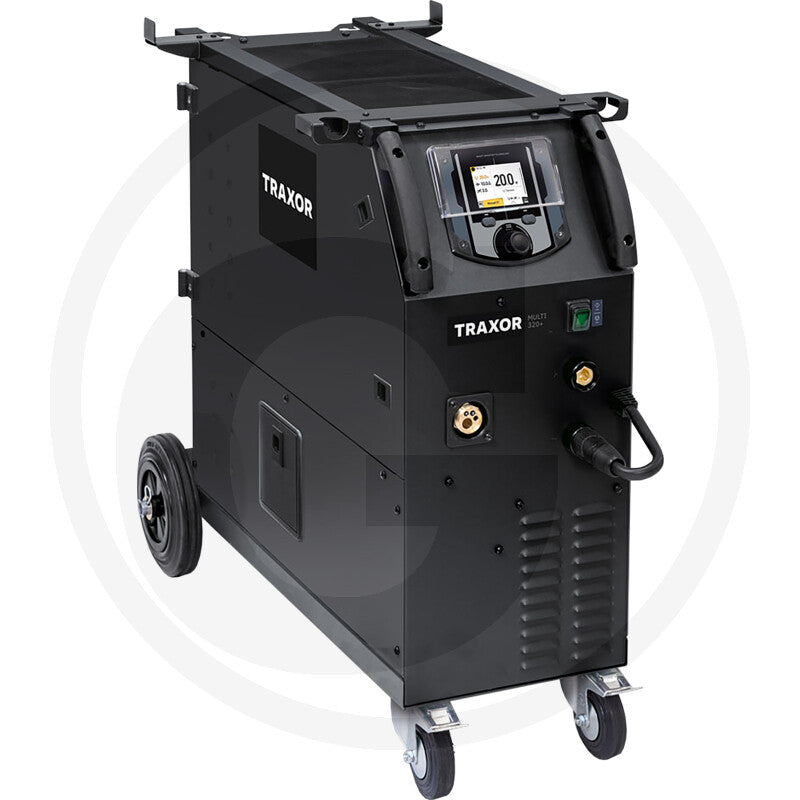

The TRAXOR Multi 320+ is a three-phase multi-process inverter welder engineered for outstanding arc properties in demanding MIG/MAG applications. Built-in synergies simplify adjustments and reduce spatter during welding, while the illuminated, easily accessible user interface offers precise control of welding parameters for consistent seam quality.
The unit supports MIG/MAG, MMA DC/Pulse, and TIG DC Lift/Pulse processes across steel, stainless steel, aluminium, and flux-cored wire, with specific synergies for steel, AlMg, AlSi, CrNi, and CuSi materials. A 3.5" multilingual HMI display offers Easy and Expert modes, and the unit stores up to 200 welding programs with USB backup and configuration transfer.
Key Features
- Three-phase multi-process inverter welder
- Supports MIG/MAG, MMA DC/Pulse, and TIG DC Lift/Pulse
- Specific synergies for steel, AlMg, AlSi, CrNi, and CuSi materials

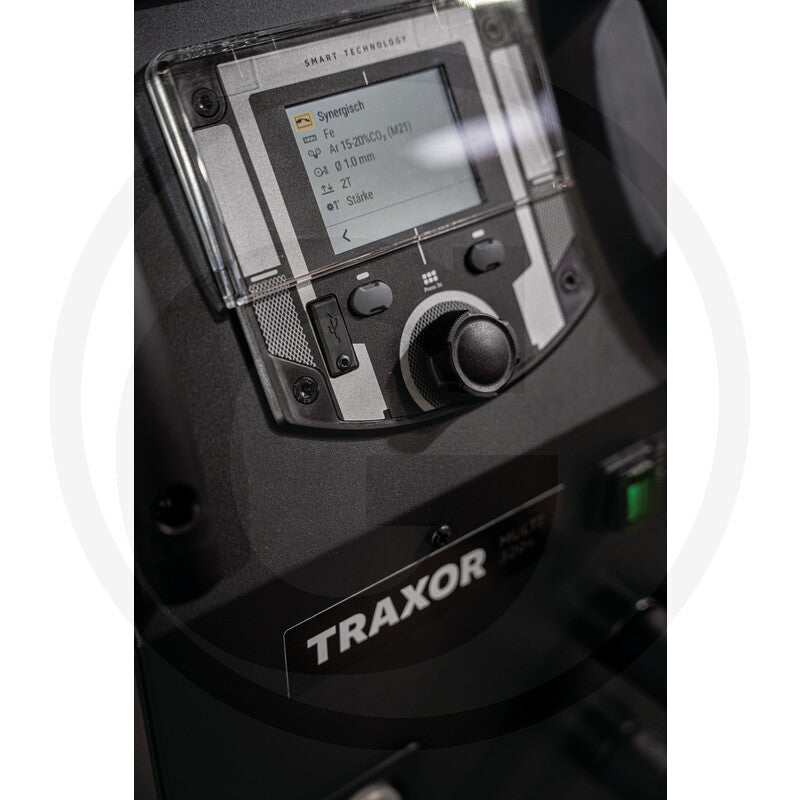

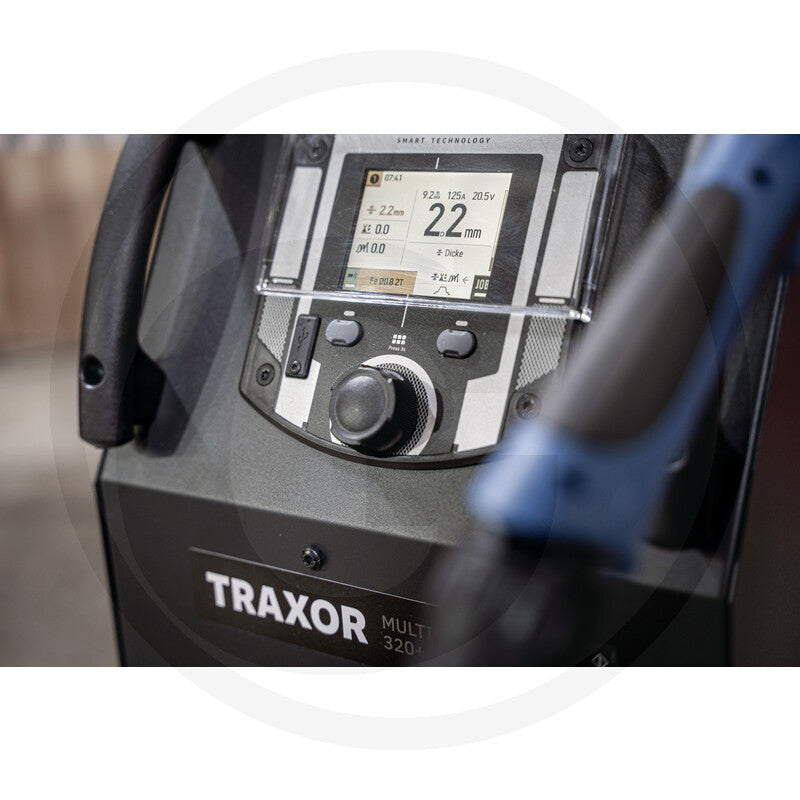

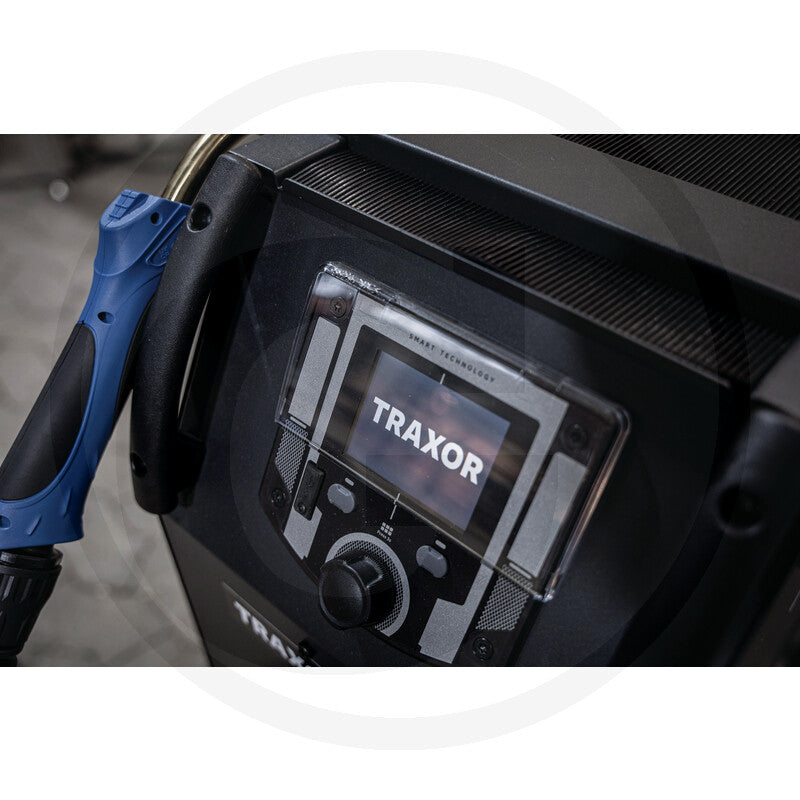

- 3.5" intuitive multilingual HMI display with Easy and Expert modes
- Storage for up to 200 welding programs (jobs)
- USB backup/save/transfer of jobs and device configuration
- Digital arc control with instant ignition for a stable arc and reduced spatter

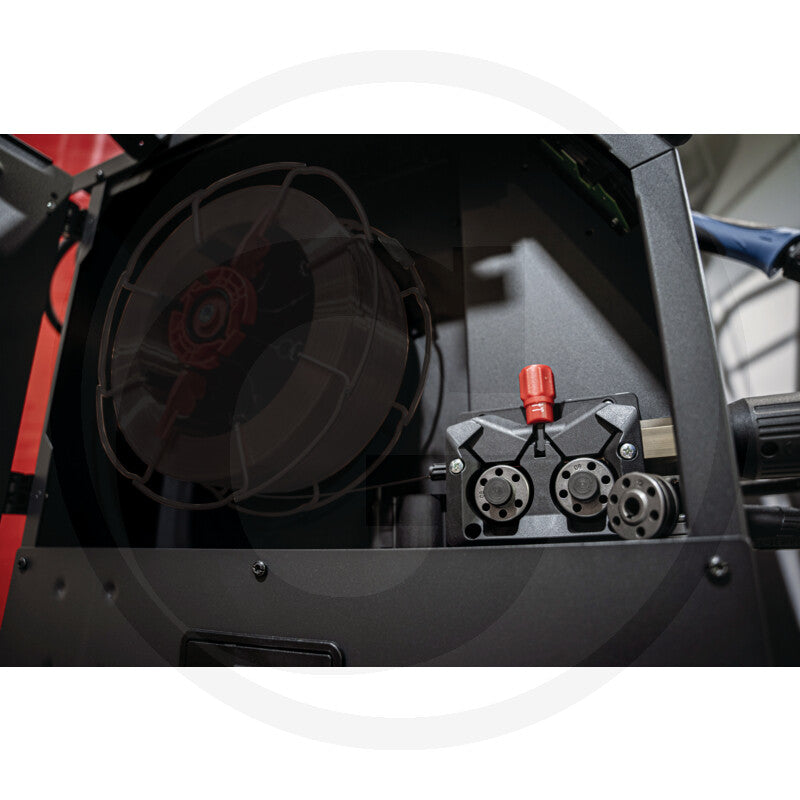

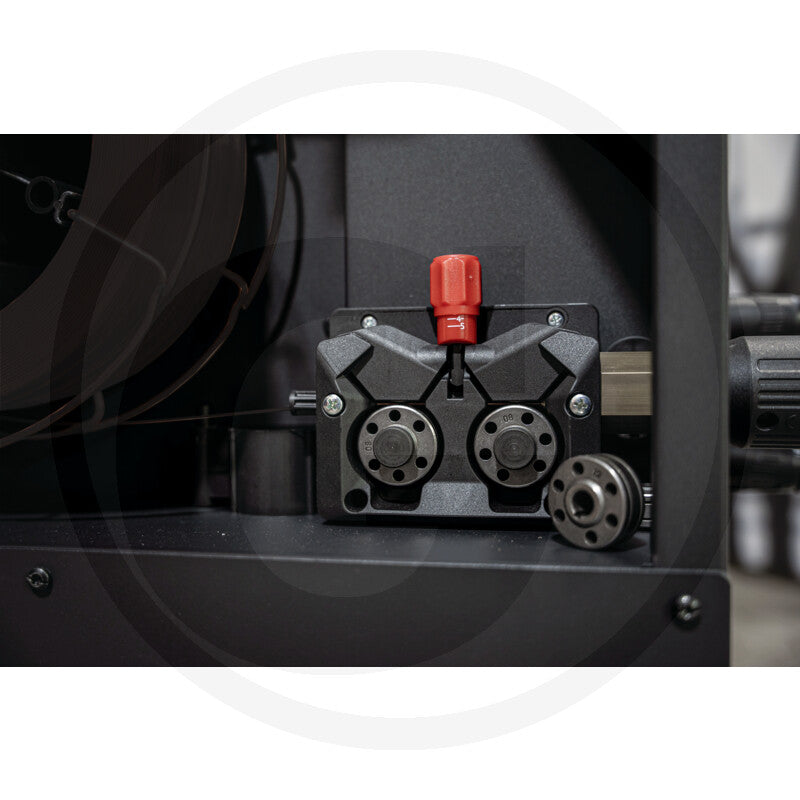

- Wire feed case with 4 rollers and digital encoder
- Reinforced wheels for stability and manoeuvrability
- Gas bottle holder (up to 4m³/20 litres)
- IP23S rated for harsh environments
- Storage compartment and easy front-facing polarity change
- Optional ventilation system to reduce dust intake
Included with Delivery
- 1x Multi 320+ welding machine
- 2x wire guide rollers, type B, Ø0.8/1.0mm (steel/stainless steel)
- 2x wire guide rollers, type B, Ø1.0/1.2mm (steel/stainless steel)
- 1x MIG/MAG torch, 350A (MB36)
- 1x hose assembly, 4m (with carbon core)
- 1x wire guide core, steel, 4m, Ø1.0/1.2mm, red
- 1x earth terminal, 400A, 35/50mm², 4m cable
- 1x accessory set MB36
- Operating instructions
Process Specifications
| Process | Wire/Electrode Detail |
|---|---|
| MIG/MAG - Steel/Stainless wire | Ø 0.8 - 1.2 mm |
| MIG/MAG - Aluminium wire | Ø 0.8 - 1.2 mm |
| MIG/MAG - Flux-cored wire (reverse polarity) | Ø 0.9 - 1.6 mm |
| MMA DC/Pulse | Basic and rutile electrodes, Ø 1.6 - 5.0 mm |
| TIG | DC Lift/Pulse |
Specifications
| Specification | Detail |
|---|---|
| Type | Multi-Process Inverter Welder |
| Dimensions (L x W x H) | 750 x 450 x 800 mm |
| Current range | 15 - 320 A |
| Voltage/Frequency | 400 V, 50/60 Hz |
| Mains fuse | 16 A |
| Open circuit voltage | 69 V |
| Protection class | IP23S |
| Cable length | 5 m |
| Hose length | 4 m |
| Part number | 18523695 |
| Reference number | 085701 |
| Weight | 51.50 kg |
| EAN | 4059139530885 |
| Condition | New |
