LifeGuard CPD & Mounting – Trax (Black) is backordered and will ship as soon as it is back in stock.

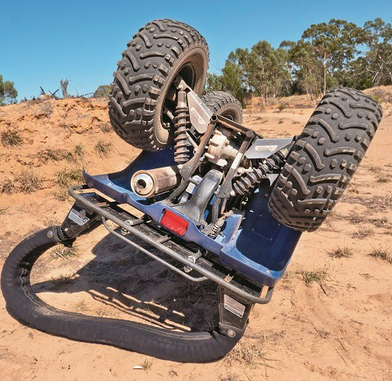

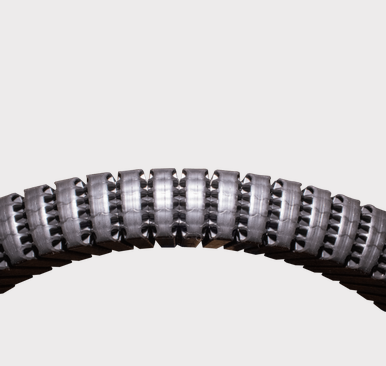

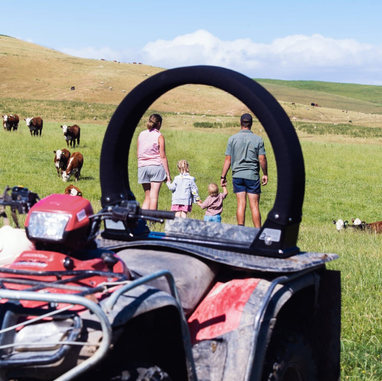

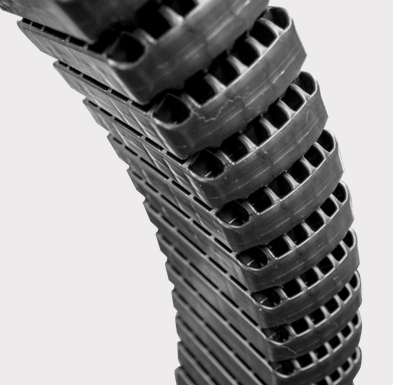

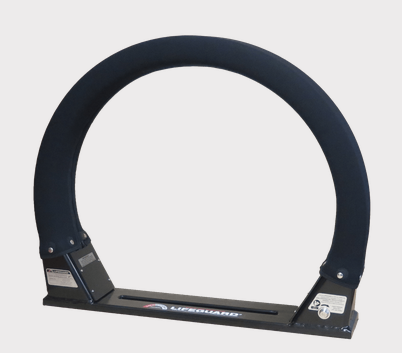

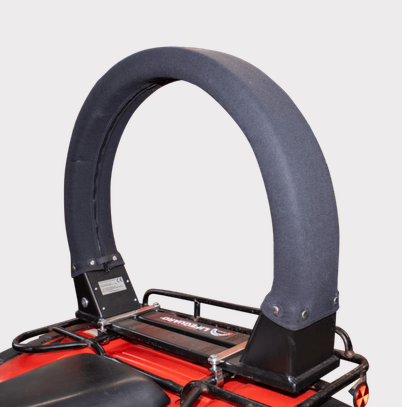

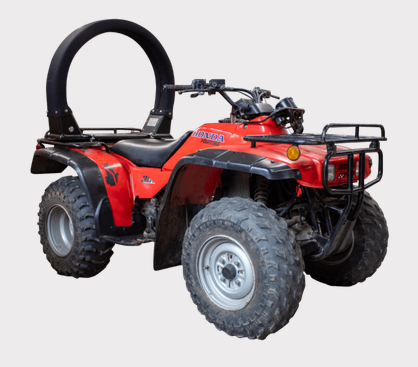

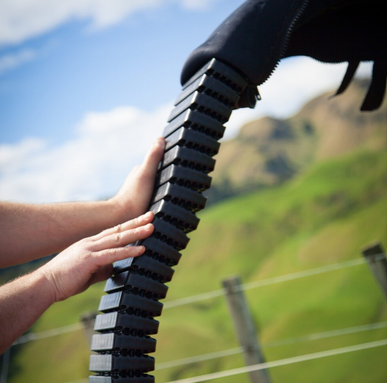

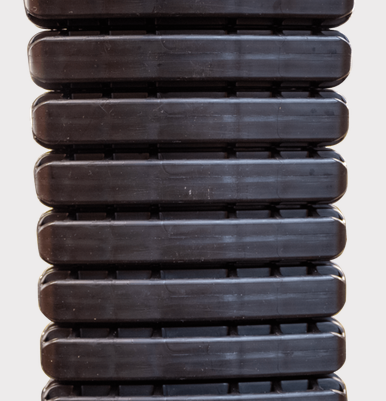

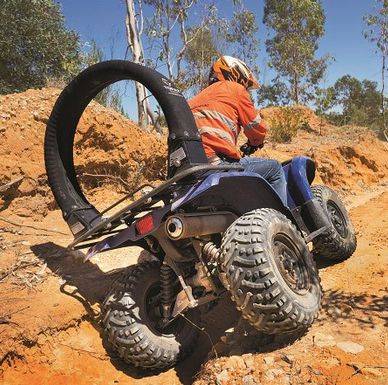

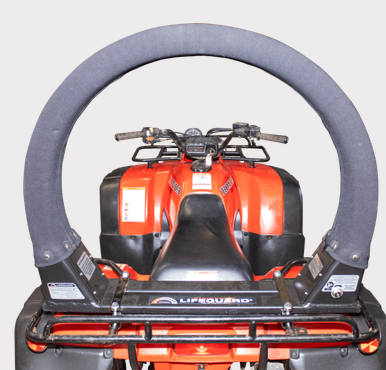

This is the Trax LifeGuard crush protection device in black, supplied with a standard mounting kit. The LifeGuard is a segmented, flexible arc that mounts to the rear carrier of a quad bike, designed to create survival space under an upturned ATV in the event of a rollover. The arc is constructed from plastic segments on an aluminium base, held under tension by a cord, with a neoprene cover fitted over the assembly. Its flexible construction allows it to deform around the rider on impact rather than acting as a rigid bar. The total weight including mounting kit is 14.6kg, and the arc is rated to support a vehicle weight of up to 500kg. The LifeGuard is designed and manufactured in New Zealand and fits most ATV models. It cannot be mounted to a plastic rear carrier. The mounting arc and tension should be checked every 12 months, with the arc maintained at 33Nm (25ft/lb) and the mounting hooks at 12Nm (10ft/lb).
Specifications
| Specification | Detail |
|---|---|
| Total weight (inc. mounting kit) | 14.6kg |
| Maximum supported vehicle weight | 500kg |
| Colour | Black |
| Carrier compatibility | Metal carriers only |
| Origin | New Zealand |
| Arc tension setting | 33Nm (25ft/lb) |
| Mounting hook torque setting | 12Nm (10ft/lb) |
Awards
| Award | Year |
|---|---|
| NSCA Foundation WHS Risk Award | 2017 |
| Agfest Safety Award (PASS) | 2014 |
| SAFEGUARD Workplace Health & Safety Award (NZ) | 2013 |
| Fieldays Golden Standard Innovation Award | 2012 |
