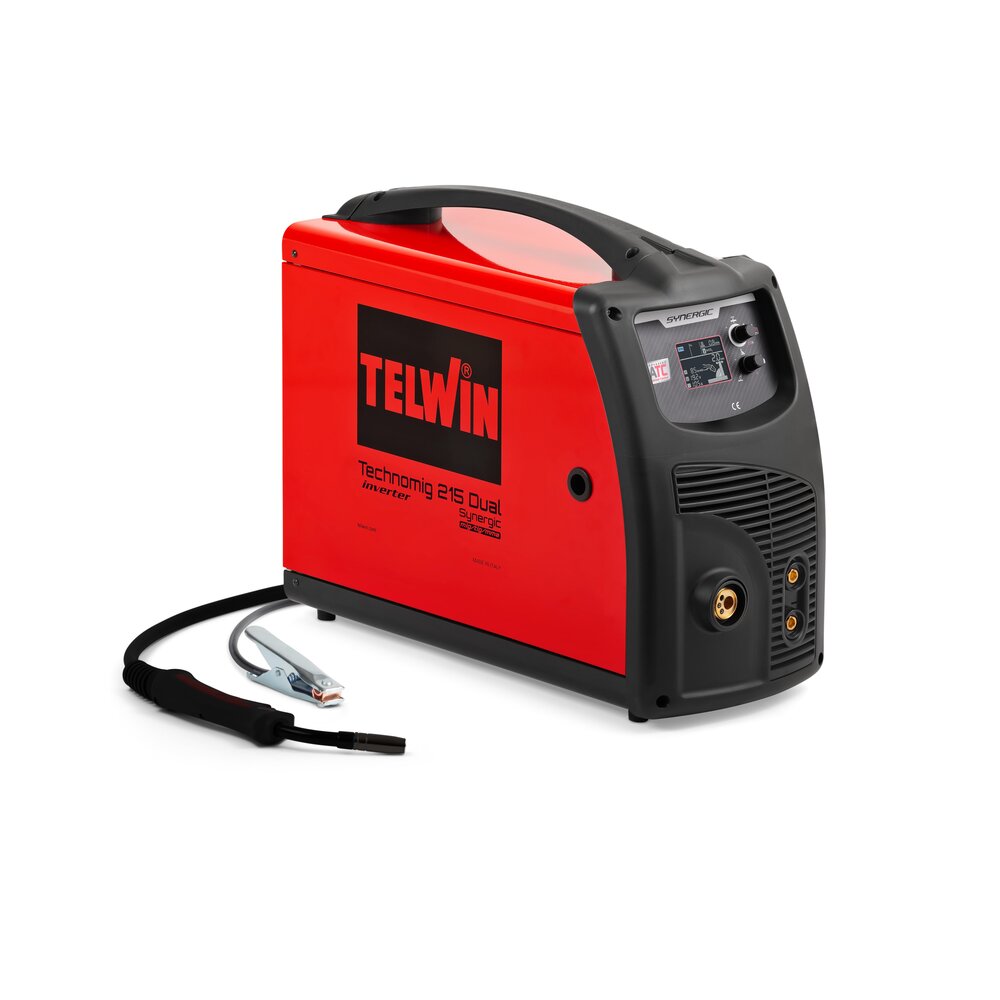

The Telwin Technomig 215 Dual Synergic is a portable, microprocessor-controlled multi-process welder for MIG/MAG, flux, brazing, MMA, and TIG DC lift, built with inverter technology. Its flexible application options and wide range of compatible materials, including steel, stainless steel, aluminium, and galvanised sheet brazing, suit applications ranging from maintenance and installation to bodywork repairs.
Rapid synergistic welding parameter adjustment via ONE TOUCH LCD SYNERGY technology makes the unit straightforward to use, with intelligent automatic arc control maintaining welding performance across materials and gases. Arc length can be adjusted manually to suit the welder's working style, and all parameters are shown clearly on the ONE TOUCH LCD graphic display. Its low weight and compact dimensions make it easy to transport for indoor and outdoor work.
Key Features
- Portable, microprocessor-controlled welder: MIG/MAG, flux, brazing, MMA, TIG DC lift
- 17 preset synergy curves

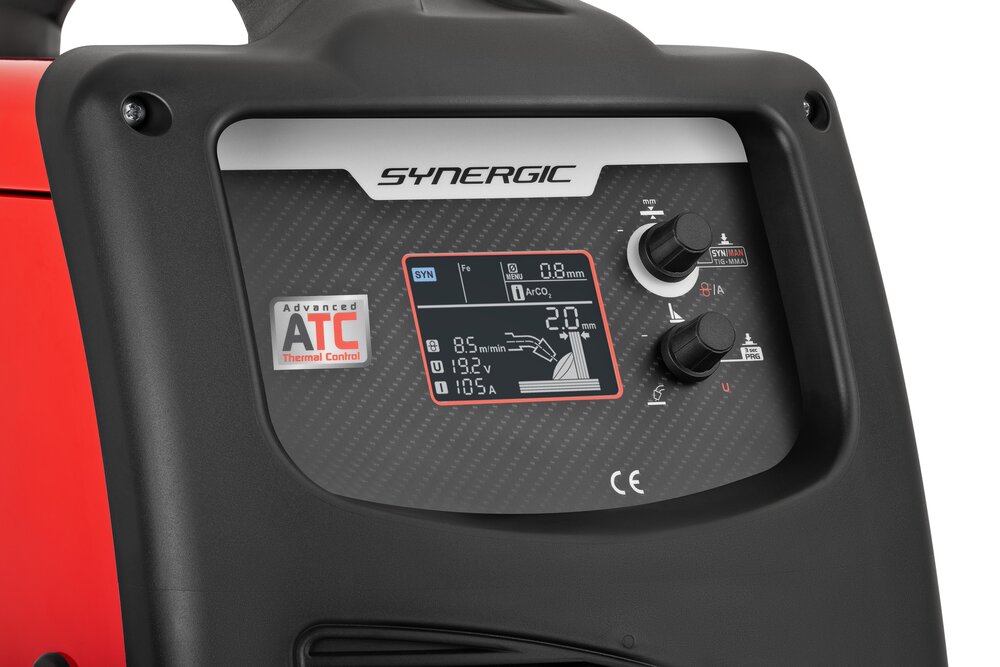

- ONE TOUCH LCD SYNERGY technology and graphic display
- Adjustable wire feed speed characteristic, electronic reactance, wire burn-back time, and post-gas duration
- Choice of 2-/4-stroke operation, plus spot welding
- Polarity switching during welding for GAS MIG/MAG/brazing
- Protection functions: thermostat, overvoltage, undervoltage, overload, generator (+/-15%)
- Manually adjustable arc length
- Low weight and compact dimensions for easy transport
Included with Delivery
- 1x hose set, 3.0m, with MT 15 torch (Euro central plug)
- 1x wire guide roller, 0.6 - 0.8mm
- 1x gas hose
- 1x earth cable, 3.0m
Process Specifications
| Process | Wire/Electrode Detail |
|---|---|
| Steel wire | Ø 0.6 - 1.0 mm (max. 15kg spool) |
| Stainless steel wire | Ø 0.8 - 1.0 mm (max. 15kg spool) |
| Aluminium wire | Ø 0.8 - 1.0 mm (max. 15kg spool) |
| Flux-cored wire | Ø 0.8 - 1.2 mm (max. 15kg spool) |
| Solder wire | Ø 0.8 - 1.0 mm (max. 15kg spool) |
| Electrodes | Ø 1.6 - 3.2 mm |
Specifications
| Specification | Detail |
|---|---|
| Type | Portable Multi-Process Welder (MIG/MAG, Flux, Brazing, MMA, TIG) |
| Dimensions (L x W x H) | 620 x 260 x 490 mm |
| Control range | 20 - 220 A DC |
| Current | 180A (20%) - 125A (60%) |
| Current requirement | 2.2 - 5 A |
| Max power consumption | 15 - 32 kW (60%) |
| Open circuit voltage | 78 V |
| Power factor (cos phi) | 0.7 |
| Mains voltage | 230V, single-phase |
| Voltage/Frequency | 230 V, 50/60 Hz |
| Mains fuse | 16 A |
| Protection class | IP23 |
| Part number | 500816053 |
| Reference number | 816232 |
| Weight | 11.50 kg |
| EAN | 8004897917634 |
| Condition | New |
