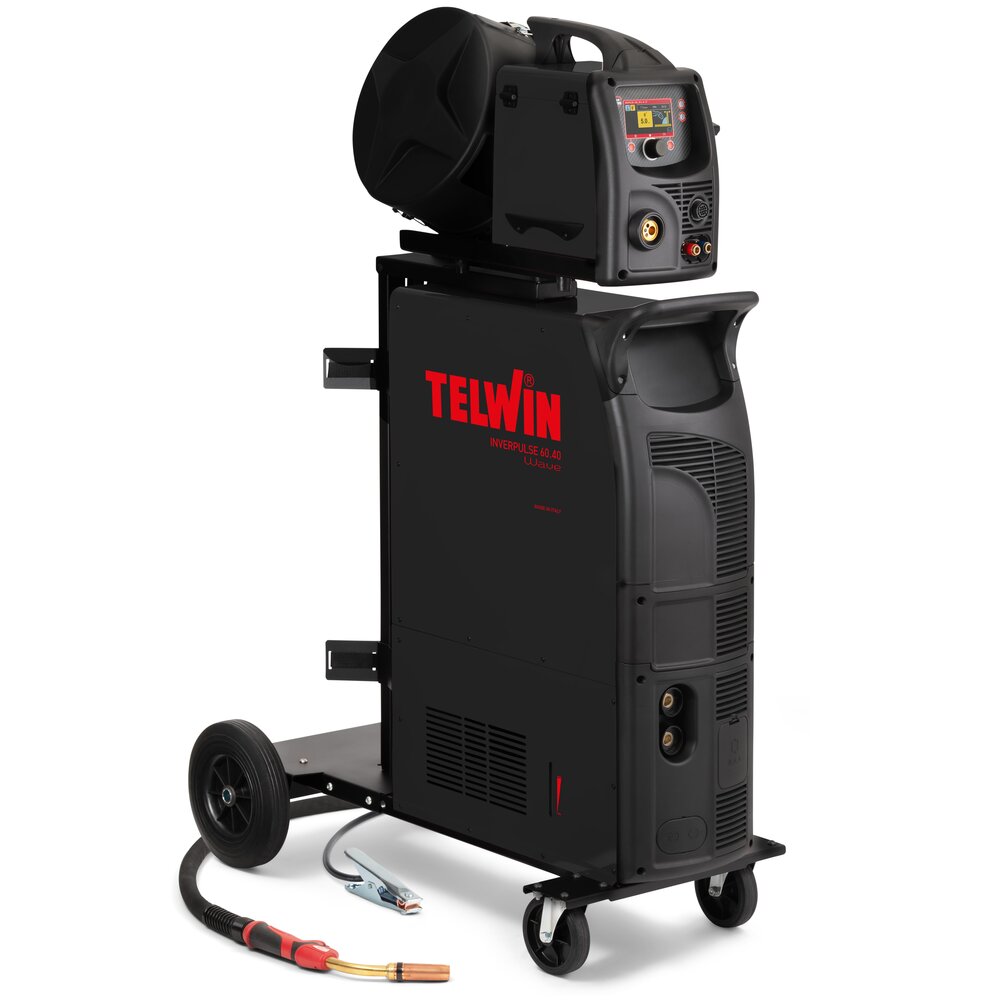

The Telwin Inverpulse 60.40 Wave Aqua is a multi-process welding machine with inverter technology, supporting continuous and pulse welding across MIG/MAG, flux, brazing, MMA, and TIG DC-Lift processes. It features a 4-roller wire feed system rated to 500A, a 3-phase 230/400V supply, and an integrated AQUA cooling unit.
The unit runs on the Wave OS operating system with EASY and EXPERT operating modes, allowing the working environment to be customised. Pulse and double pulse (PULSE and POP) applications handle materials that weld or braze differently, while extended welding arcs (ROOT-MIG, ATC, DEEP MIG) support specific applications. Welding programmes can be individually created, saved, and recalled, with a TFT colour display for straightforward interaction, and welding data can be tracked and analysed via USB or an optional cloud platform.
Key Features
- Multi-process welder: MIG/MAG, flux, brazing, MMA, TIG DC-Lift
- Continuous and pulse welding with inverter technology
- 4-roller wire feed system, rated to 500A
- Integrated AQUA cooling unit
- Wave OS operating system with EASY and EXPERT modes
- Pulse and double pulse (PULSE, POP) applications
- Extended welding arcs: ROOT-MIG, ATC, DEEP MIG
- Individually creatable, savable, and recallable welding programmes
- TFT colour display
- Data tracking via USB or optional cloud platform
- High performance with low power consumption
Process Specifications
| Process | Wire/Electrode Detail |
|---|---|
| Steel wire | Ø 0.6 - 2.4 mm (max. 15kg spool) |
| Stainless steel wire | Ø 0.8 - 2.4 mm (max. 15kg spool) |
| Aluminium wire | Ø 0.8 - 1.6 mm (max. 15kg spool) |
| Electrodes | Ø 1.6 - 8.0 mm |
Specifications
| Specification | Detail |
|---|---|
| Type | Multi-Process Inverter Welder with AQUA Cooling |
| Dimensions (L x W x H) | 103 x 51 x 145 mm |
| Control range | 20 - 500 A (DC) / 20 - 400 A (230V DC) |
| Mains voltage | 230/400V, 3-phase |
| Voltage/Frequency | 230-400 V, 50/60 Hz |
| Max power consumption | 16 kW |
| Mains fuse | 32 A |
| Open circuit voltage | 110 V |
| Protection class | IP23 |
| Part number | 36097640 |
| Reference number | 816979 |
| Weight | 123.20 kg |
| EAN | 8056590375877 |
| Condition | New |
