Stator & Aluminium MOSFET Regulator Rectifier Kit – Honda VFR80...

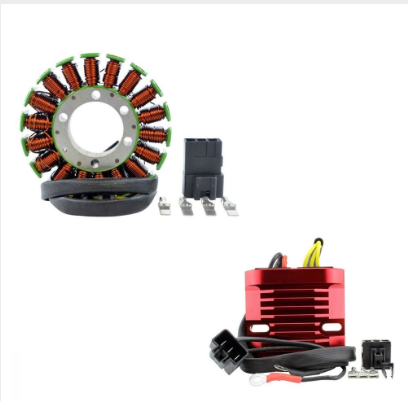

This complete stator and aluminium MOSFET regulator rectifier kit is a direct replacement for the Honda VFR800 Interceptor, covering 2002 to 2009 model years. The kit restores full charging system function to standard specification with no modification required, replacing both the stator and voltage regulator rectifier in a single matched solution.
The MOSFET regulator rectifier features a red machined aluminium housing for improved heat dissipation and charging efficiency over the original OEM unit, and replaces OEM reference 107630-R00. Manufactured from premium materials for consistent performance and long service life across all applications.
Fitment
| Model | Year Range |
|---|---|
| Honda VFR800 Interceptor | 2002–2009 |
Key Features
| Feature | Detail |
|---|---|
| Kit Contents | Stator + Aluminium MOSFET Regulator Rectifier |
| Regulator Type | Red machined aluminium MOSFET |
| Fitment | Direct replacement — no modification required |
| OEM Reference | Replaces 107630-R00 |
| Charging Voltage | 14.5V ± 0.5V minimum |
| Operating Temperature | -20°C to +85°C |
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| 107630-R00 | Honda |

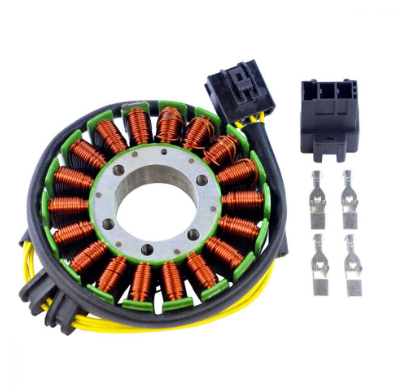

Stator Specifications
| Specification | Detail |
|---|---|
| Interior Diameter | 42mm |
| Exterior Diameter | 115mm |
| Thickness | 18mm |
| Wire Length (stator to grommet) | 90mm |
| Wire Length (grommet to plug) | 600mm |
| Poles | 18 |
| Plugs / Pins / Wires | 1 plug / 3 pins / 3 wires |
| Resistance (black to black) | 0.6 ohms ±20% |
| Resistance (to ground) | O.L |

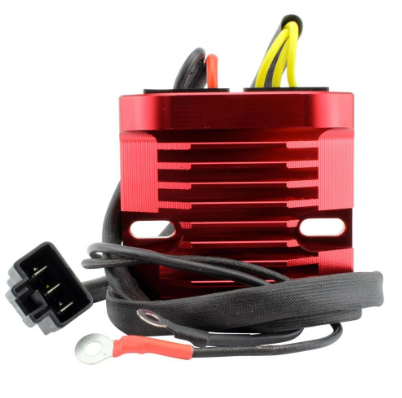

Regulator Rectifier Specifications
| Specification | Detail |
|---|---|
| Width / Length / Height | 95mm / 90mm / 30mm |
| Wire Lengths | 810mm and 350mm |
| Fixation Hole Centres | 75mm |
| Plugs / Pins / Wires | 2 plugs / 5 pins / 5 wires |
| Minimum Charging Voltage | 14.5V ± 0.5V |
| Maximum Charging Current | 50A / 500W |
| Open Circuit Voltage | Less than 15V |
| Operating Temperature | -20°C to +85°C |
