Series Voltage Regulator – Suzuki V-Strom DL1000 / DL1050 – Replace...

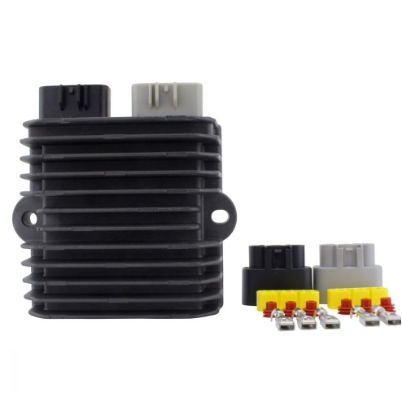

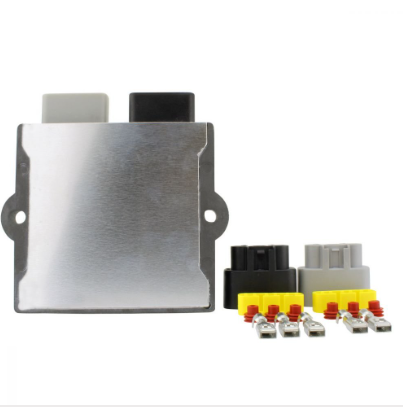

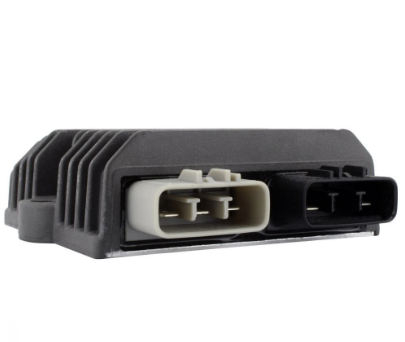

This series voltage regulator is a direct replacement for the Suzuki V-Strom DL1000 and DL1050, covering all variants from 2014 to 2021. It restores correct charging system function to standard specification with no modification required.
Manufactured from premium materials for consistent performance and long service life, this unit replaces Suzuki OEM reference 32800-31J00, making it a dependable aftermarket solution for servicing the Suzuki V-Strom 1000/1050 range.
Fitment
| Model | Year Range |
|---|---|
| Suzuki DL1000 V-Strom | 2014–2019 |
| Suzuki DL1000X V-Strom | 2018–2019 |
| Suzuki DL1050 V-Strom | 2020–2021 |
| Suzuki DL1050 V-Strom XT | 2020 |
Key Features
| Feature | Detail |
|---|---|
| Type | Series Voltage Regulator |
| Fitment | Direct replacement — no modification required |
| OEM Reference | Replaces Suzuki 32800-31J00 |
| Charging Voltage | 14.5V ± 0.5V minimum |
| Max Charging Current | 50A / 500W |
| Operating Temperature | -20°C to +85°C |
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| 32800-31J00 | Suzuki |
Specifications
| Specification | Detail |
|---|---|
| Component | Series Voltage Regulator |
| Width / Length / Height | 119mm / 100mm / 38mm |
| Fixation Hole Centres | 100mm |

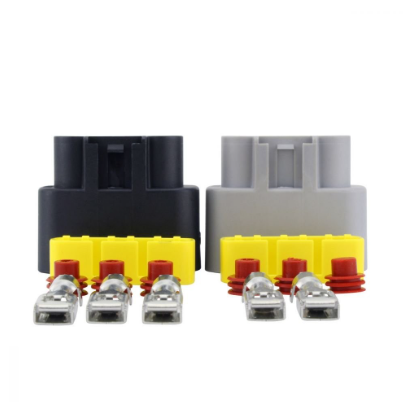

| Plugs / Pins | 2 plugs / 5 pins |
| Minimum Charging Voltage | 14.5V ± 0.5V |
| Maximum Charging Current | 50A / 500W |
| Open Circuit Voltage | Less than 15V |
| Operating Temperature | -20°C to +85°C |
| Application | Suzuki V-Strom DL1000 / DL1050 |
| Year Range | 2014–2021 |
| Condition | New |
