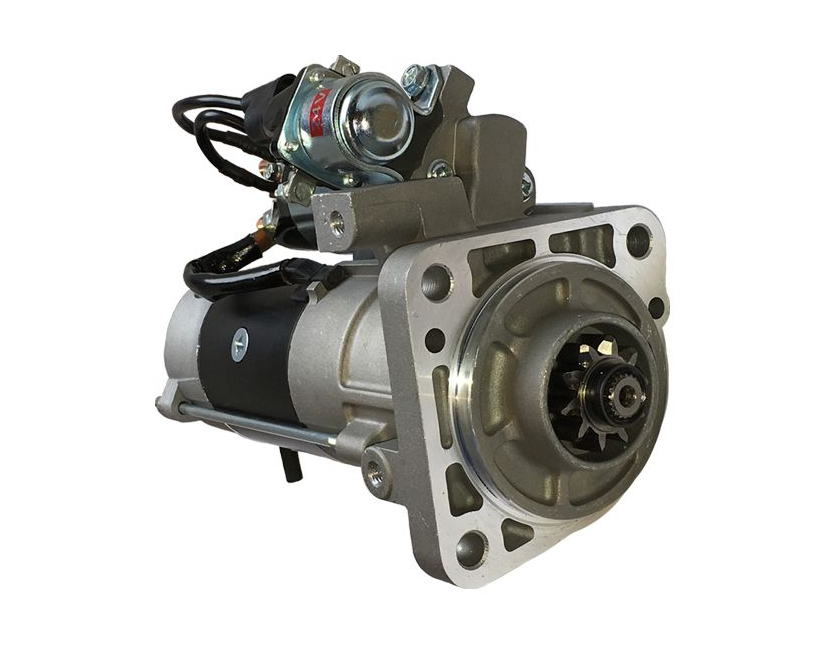

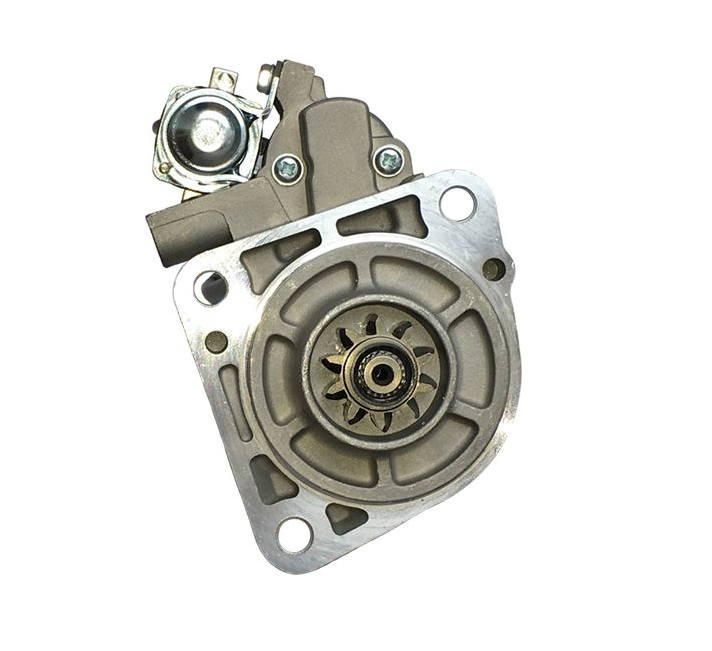

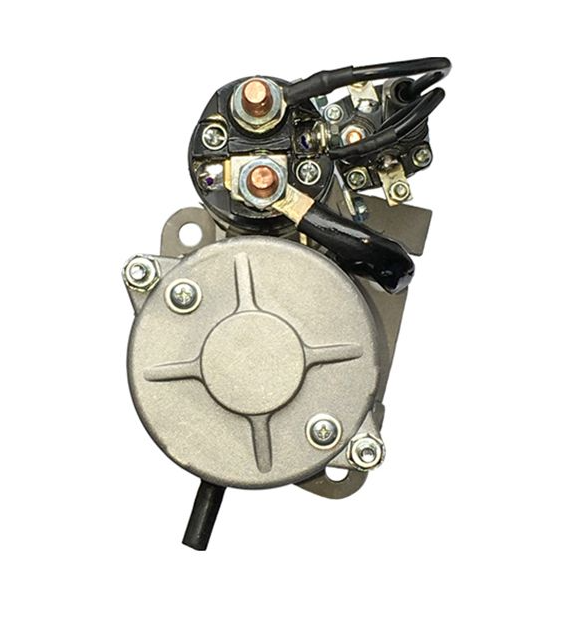

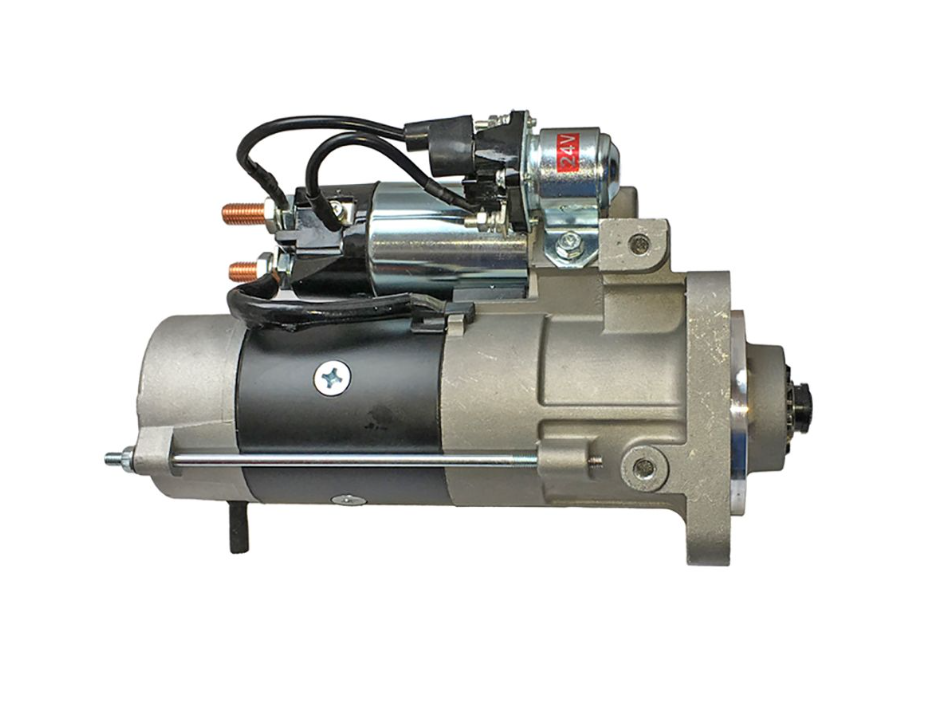

The Prestolite Starter Motor is a 24V, 5kW starter with a 10-tooth pinion, supplied with clockwise rotation. It uses an SAE1 mounting type with grounded (earth return) polarity, and is a direct fit replacement using original manufacturer specifications, suiting Volvo and Deutz applications.
Cross-referencing an extensive range of OE part numbers across Volvo, Deutz (KHD), MAHLE, Renault, Hella, Delco-Remy, and other brands, this starter is engineered to original fitment standards for reliable starting performance.
Fitment
| Brand |
Series / Type |
|---|---|
| Volvo | Not specified |
| Deutz | Not specified |
Key Features
- 24V, 5kW starter motor
- 10-tooth pinion
- Clockwise rotation
- SAE1 mounting type
- Grounded (earth return) polarity
- Fits Volvo and Deutz applications
- Cross-references an extensive range of OE part numbers across multiple brands
OE Reference Numbers
| Part Number | Brand |
|---|---|
| M85401 | Prestolite |
| 861292 | Prestolite |
| M85R3001SE | Prestolite |
| 21774084 | Volvo |
| 21645118 | Volvo |
| 20997663 | Volvo |
| 20938971 | Volvo |
| 23025980 | Volvo |
| 22859056 | Volvo |
| 3801168 | Volvo |
| 85000750 | Volvo |
| 01182758 | Deutz (KHD) |
| 01183209 | Deutz (KHD) |
| 01182195 | Deutz (KHD) |
| 11.139.180 | MAHLE |
| 72.483.384 | MAHLE |
| AZF4898 | MAHLE |
| IS9484 | MAHLE |
| 7420997664 | Renault |
| 7485003033 | Renault |
| 8EA 012 586-281 | Hella |
| 19081102 | Delco-Remy |
| DRS0392 | Delco-Remy |
| M8T62471 | Mitsubishi |
| CST35638AS | Casco |
Specifications
| Specification | Detail |
|---|---|
| Type | Starter Motor |
| Nominal voltage | 24 V |
| Output | 5 kW |
| No. of pinion teeth | 10 |
| Pinion diameter | 39 mm |
| Pinion pitch | M3 |
| Pinion rest position | 28 mm |
| Spigot diameter | 89 mm |
| Switch position | 58 degrees |
| Mounting type | SAE1 |
| Polarity | Grounded (earth return) |
| Direction of rotation | Clockwise |
| Ignition protection | No |
| Jump start protection | No |
| OCP | No |
| Wet clutch | No |
| Product family | M85 |
| Weight | 8.82 kg |
| EAN | 5052629098826 |
| Condition | New |
