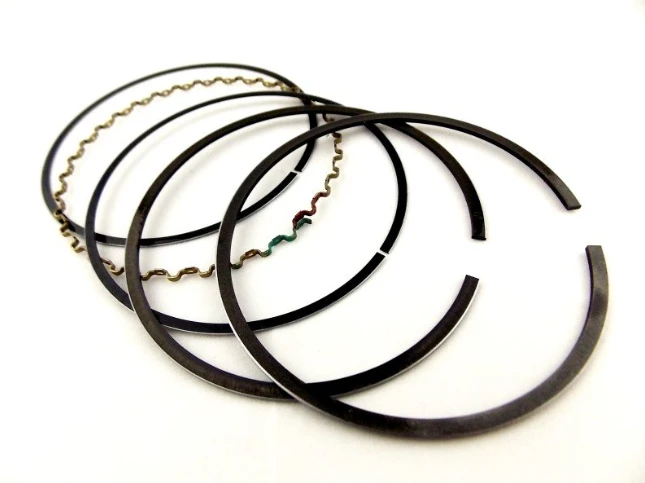

This piston ring kit is designed for the 420cc TRX420 Rancher with STD bore, covering model years 2007–2013. It renews the top-end seal by replacing worn piston rings, restoring compression, and reducing oil consumption for reliable, consistent power on tough trails and demanding farm work. The kit is an aftermarket replacement that drops into the existing top end, with a standard 86.5 mm bore to match your original cylinder.

By delivering a focused, cost-conscious refresh of the piston rings, wristpin, and circlips, this kit addresses common wear that leads to power loss, smoky starts, and higher oil consumption. It’s engineered for rugged use - whether you’re crawling through mud, pushing through dust, or hauling gear on the farm - so your Rancher stays responsive, starts readily, and maintains steady throttle response between rebuilds. Compatibility notes from OEM references and aftermarket listings confirm suitability for early TRX420 Rancher generations and related top-end kits.

Comprehensive Vehicle Fitment

Compatibility data drawn from OEM part references and aftermarket top-end listings for the TRX420 Rancher family.

Product Specifications

OEM & Aftermarket Cross-Reference Information

What's Included

Includes the essential parts needed for a top-end refresh on the TRX420 Rancher’s cylinder/piston area:

• Piston Rings
• Wristpin
• Circlips

Note: The kit may not include the cylinder, base gasket, head gasket, or other ancillary seals unless explicitly listed on the product page.

Why Choose This Aftermarket Replacement?

• Direct-Fit Compatibility: Engineered to match the TRX420 Rancher’s standard bore size (86.5 mm) for straightforward installation without modification.
• OEM Cross-Reference: Includes OEM part numbers commonly used in TRX420 top-end rebuilds, ensuring reliable interchangeability.
• Premium Fit for Top-End Rebuilds: Specifically designed to restore compression and control oil blow-by in the 420cc engine family operating in harsh trail and farm conditions.
• Cost-Effective Alternative: Delivers authentic-replacement performance without OEM pricing, helping you stay productive between rides and workdays.
• Comprehensive Top-End Refresh: Included components (rings, wristpin, and circlips) cover the core sealing elements required for a reliable rebuild.
• Proven Compatibility with TRX420 Variants: Listed in multiple aftermarket references for the 2007–2013 Rancher lineup and closely related top-end kits.

Installation Notes:

• Quality cleaning: Thoroughly clean the cylinder bore and piston lands; remove all carbon and debris before reassembly.
• Lubrication during assembly: Apply assembly lube to rings and wristpin to prevent dry-start wear.
• Ring orientation and seating: Install rings with correct orientation; ensure proper ring gap alignment per service manual guidelines.
• Check bore for wear: Confirm bore remains within standard spec (86.5 mm) and inspect for scoring or glazing that could affect sealing.
• Wristpin and circlip security: Verify wristpin seating and fully secure both circlips to prevent wristpin migration during operation.
• Basic top-end procedure awareness: This kit is part of a top-end refresh; if you’re also replacing the cylinder or head gasket, follow the manufacturer torque specs and gasket seating procedures for those parts.

Why Upgrade?

Worn piston rings allow blow-by, leading to reduced compression, power loss, and increased oil consumption. Replacing with this aftermarket piston ring kit re-establishes proper sealing in the top end, restoring throttle response, easier cold starts, and reliable operation under muddy, dusty, or heavy-duty farm conditions.
