OS 1.00 OEM Direct Fit Piston Kit for Yamaha YFM 660 Grizzly, Rhino, and Raptor models from 2002 through 2007 is a purpose-built engine component designed to restore factory compression and dependable power. This aftermarket replacement delivers a cost-effective path to peak performance without sacrificing the tolerances required for long-term reliability. Built to align with Yamaha specifications, it provides a direct-fit solution that helps your trail or farm work run smoother, cooler, and more reliably crank after crank.
The OS 1.00 piston kit offers a clear value proposition for riders facing typical wear on these engines - declining compression, oil consumption, and throttle response slowdowns from worn piston rings and lands. By delivering a properly sized, durable aluminum piston with precise ring fit, this aftermarket option helps restore consistent power and reliable sealing in dusty, heavy-use conditions common on trails and in fields, all while keeping operating costs down.

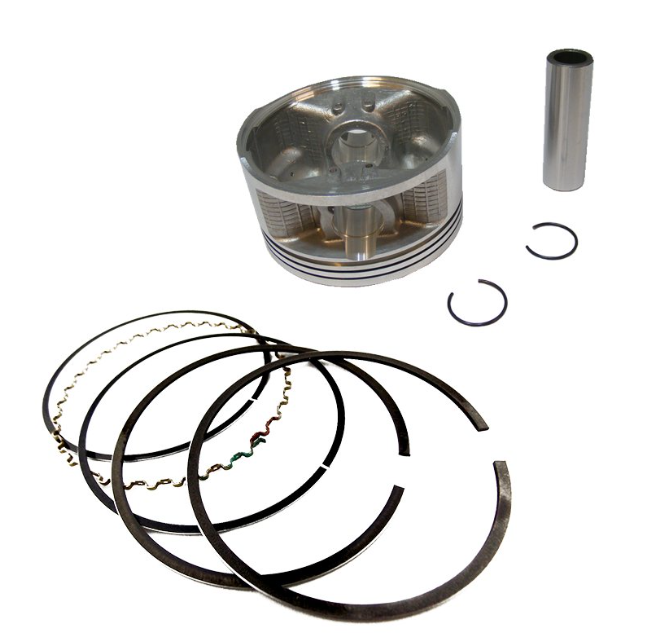

What's Included
Includes the essential top-end components needed to rebuild the piston area on Yamaha YFM 660 engines:
- Piston
- Piston Rings
- Wrist Pin
- Circlips
*Gaskets and top-end seals are not included; use a separate top-end gasket kit for a complete rebuild.*
OEM & Aftermarket Cross-Reference Information
| Part Number | Brand / Type | Cross-Reference Notes |
|---|---|---|
| 2C6-11638-00-00 | Yamaha OEM | Direct cross-reference for YFM660 piston kit OS 1.00 |
| 3YF-11638-00-00 | Yamaha OEM | Direct cross-reference for YFM660 piston kit OS 1.00 |
Fitment
| Manufacturer | Models / Series | Years / Details |
|---|---|---|
| Yamaha | YFM 660 Grizzly | 2002 - 2007 |
| Yamaha | YFM 660 Rhino | 2002 - 2007 |
| Yamaha | YFM 660 Raptor | 2002 - 2007 |
Specifications
| Attribute | Details |
|---|---|
| OEM Reference Part Numbers | 2C6-11638-00-00, 3YF-11638-00-00 |
| Type | Piston Kit |
| Manufacturer | Aftermarket Replacement |
| Application | Yamaha YFM 660 Grizzly, Rhino, and Raptor (2002 - 2007) |
| Piston Size | OS 1.00 |
| Bore Size | STD 100mm |
| Material | Aluminum Alloy |
Installation Notes
- Inspect the cylinder bore for scoring or out-of-round wear; hone or bore as necessary before installing the kit.
- Verify the bore diameter and OS size match the kit’s specifications; ensure no debris or burrs remain in the cylinder.
- Lubricate the piston, rings, and wrist pin with assembly lubricant prior to assembly to prevent dry-start wear.
- Install the wrist pin and circlips securely; confirm circlips are fully seated and not protruding into the crankcase.
- Orient piston rings correctly and stagger ring gaps to optimize sealing; verify ring end gaps per manual guidelines.
- Follow the engine service manual for proper torque specs and break-in procedures to avoid glazing or ring set failure.
