Piston Kit OS 1.00 - Kawasaki KLF250 Bayou
Piston Kit OS 1.00 - Kawasaki KLF250 Bayou is backordered and will ship as soon as it is back in stock.
OS 1.00 Piston Kit for Kawasaki KLF250 Bayou (2003 - 2011) is an oversize top-end rebuild solution designed to restore compression and revitalize power in dusty, off-road conditions. The 1.00 mm oversize bore provides rebuild-ready material and precise machining for optimal sealing and longevity, making it ideal for a full top-end rebuild or restoring lost power on the KLF250 Bayou. This aftermarket replacement piston kit is engineered to meet or exceed Kawasaki engine standards, delivering reliable performance when the trail or farm demands it.
Unique value comes from a purpose-built approach to the Bayou’s single-cylinder, air-cooled engine. The OS 1.00 kit targets wear-and-tear issues like ring land wear, piston skirt scuffing, and degraded sealing that reduce compression and throttle response. With a high-quality alloy piston, rings, wrist pin, and circlips included, this kit provides a reliable, install-ready solution designed for demanding off-road use and long-term durability in trail and farm environments.

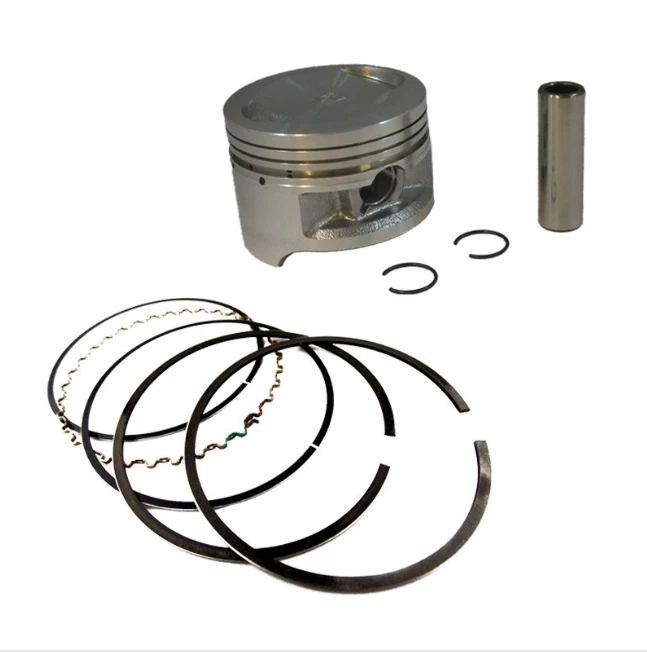

What's Included
This OS 1.00 piston kit includes everything you need to complete a top-end rebuild on the Kawasaki KLF250 Bayou.
- Piston
- Rings
- Piston Wrist Pin
- Circlips
OEM & Aftermarket Cross-Reference Information
| Part Number | Brand / Type | Cross-Reference Notes |
|---|---|---|
| 13001-1663 | Kawasaki OEM Piston | Piston, Standard Bore; common reference for 2003 - 2011 Bayou kits |
| 13001-1654 | Kawasaki OEM Piston | Alternate standard-bore piston reference |
| 13002-1004 | Kawasaki OEM Piston Pin | Piston pin reference for stock/oversize builds |
| 13008-1209 | Kawasaki OEM Rings | Ring set reference for stock/oversize kits |
| 92033-1161 | Kawasaki OEM Circlips | Piston circlips reference |
| 50-252 | WSM (Aftermarket Replacement OEM Cross-Ref) | Stock bore piston kit cross-ref compatible with KLF250 Bayou; includes piston, rings, pin, clips |
Fitment
| Manufacturer | Models / Series | Years / Details |
|---|---|---|
| Kawasaki | KLF250 Bayou | 2003 - 2011 |
| Kawasaki | KLF250 Bayou A1 (2003) | 2003 |
| Kawasaki | KLF250 Bayou A2 (2004) | 2004 |
| Kawasaki | KLF250 Bayou A3 (2005) | 2005 |
| Kawasaki | KLF250 Bayou A6F (2006) | 2006 |
| Kawasaki | KLF250 Bayou A7F (2007) | 2007 |
| Kawasaki | KLF250 Bayou A8F (2008) | 2008 |
| Kawasaki | KLF250 Bayou A9F (2009) | 2009 |
| Kawasaki | KLF250 Bayou AAF (2010) | 2010 |
| Kawasaki | KLF250 Bayou ABF (2011) | 2011 |
Specifications
| Attribute | Details |
|---|---|
| OEM Reference Part Numbers | - |
| Type | Piston Kit (Oversize 1.00) |
| Manufacturer | Aftermarket Replacement |
| Application | Kawasaki KLF250 Bayou (2003 - 2011) |
| Material | High-quality alloy piston with rings, wrist pin, and circlips |
| Oversize | 1.00 mm |
| Bore Size | 70.00 mm (OS 1.00) - requires cylinder bore prep and compatible rings |
| Stroke | 61.0 mm |
| Piston Pin Diameter | 16 mm |
Installation Notes
- Before install, verify the cylinder bore is compatible with an OS 1.00 kit and prepare the bore to accept a 70.00 mm piston.
- Inspect the cylinder wall for scoring or damage; repair or chamfer damaged areas as needed before fitting the oversize piston.
- Lubricate the piston, rings, and wrist pin thoroughly before assembly; ensure ring end gaps are within manual specifications after install.
- Use a proper ring compressor to slide the piston into the bore without damaging rings or scoring the bore.
- Install the wrist pin and circlips with correct orientation; confirm clips are fully seated to prevent pin migration.
- Check all gaskets and mating surfaces; reuse or replace gaskets per service manual to ensure a proper seal on reassembly.
