Piston Kit OS 0.50 Honda TRX 420 2007 Through 2023 is backordered and will ship as soon as it is back in stock.
This OS oversize piston kit (+0.50 mm) is built for the Honda TRX 420 Rancher family (2007 - 2023) to restore lost compression and bring back strong top-end power with solid mid-range torque. Engineered as an aftermarket replacement, it delivers reliable, consistent power for trail miles and demanding work-site use, without jumping to a larger bore kit. By refreshing the bore with a precise +0.50 mm oversize, this kit helps maintain a durable seal and smooth operation across the TRX 420 lineup.
Designed for riders who push their Rancher hard, this kit focuses on reclaiming throttle response and daily reliability after top-end wear. It’s a practical rebuild solution that preserves factory geometry and keeps the engine performing consistently under load - whether you’re tackling rugged trails, forestry work, or farm duties. The result is a dependable restoration that avoids the jump to a larger bore while delivering noticeable power and torque gains.
OEM & Aftermarket Cross-Reference Information
| Part Number | Brand / Type | Cross-Reference Notes |
|---|---|---|
| 13103-HP5-600 | Honda OEM Piston Kit | OEM reference for TRX 420; aftermarket OS kit serves as a direct replacement with +0.50 mm oversize. |
| 40050M08700 | Wiseco Piston Kit (ArmorGlide) | 87.00 mm bore (+0.50 mm oversize) for Honda TRX 420 Rancher (07 - 15). Common aftermarket cross-reference for +0.50 oversize builds. |
| 50-231-09K | WSM Piston Kit | Examples show +1.5 mm oversize variants for TRX 420; included here as a cross-reference note for context (not the exact oversize in this kit). |

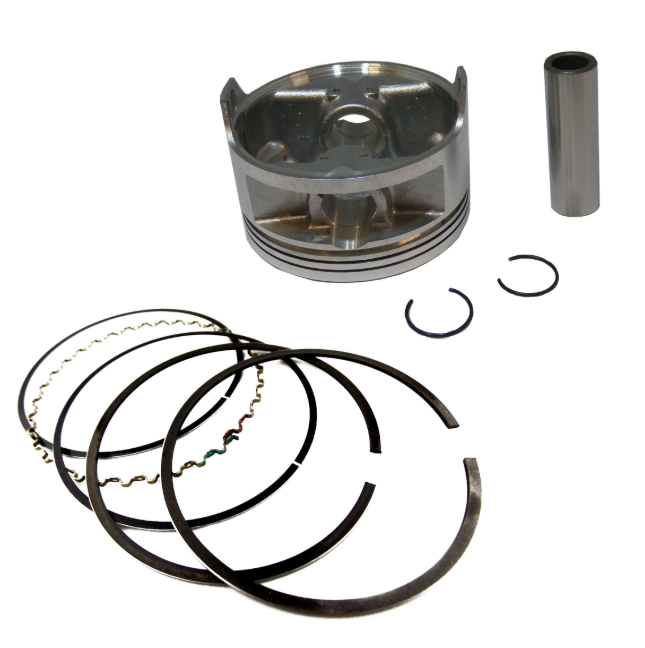

What’s Included
This OS oversize piston kit arrives with the essential components needed to rebuild the top end and restore performance.
- Piston with +0.50 mm oversize bore
- Piston Ring Set matching the oversize piston
- Piston Pin / Wrist Pin and Circlips
- Install Lubricant (small quantity for initial startup, if included by manufacturer)
Note: Gaskets, head cover seals, and other related seals/gaskets are not included and may require separate gasket sets depending on your rebuild scope.
Fitment
| Manufacturer | Models / Series | Years / Details |
|---|---|---|
| Honda | TRX420FA1 Rancher 4x4 Auto | 2014 - 2024 |
| Honda | TRX420FA2 Rancher 4x4 Auto EPS | 2014 - 2024 |
| Honda | TRX420FA5/FA6 Rancher 4x4 Auto IRS | 2015 - 2024 |
| Honda | TRX420FE1 Rancher 4x4 ES | 2014 - 2024 |
| Honda | TRX420FM1 Rancher 4x4 | 2014 - 2024 |
| Honda | TRX420FM2 Rancher 4x4 EPS | 2014 - 2024 |
| Honda | TRX420TE1 Rancher 2x4 ES | 2014 - 2024 |
| Honda | TRX420TM1 Rancher 2x4 | 2014 - 2024 |
Specifications
| Attribute | Details |
|---|---|
| OEM Reference Part Numbers | 13103-HP5-600 |
| Type | Piston Kit OS Oversize +0.50 |
| Manufacturer | Aftermarket Replacement |
| Application | Honda TRX 420 Rancher models (2007 - 2023) |
| Material | Forged aluminum piston (typical industry construction for oversize kits) |
| Bore Size | 87.0 mm (oversize +0.50 mm) |
| Standard Bore | 86.5 mm |
| Stroke | 71.5 mm |
| Displacement | 425 cc |
| Piston Ring Set | Included (top and second compression rings + oil ring) |
| Piston Pin / Circlips | Included (wrist pin and retaining clips typical of kits) |
Installation Notes
- Inspect the cylinder bore for scoring or damage; hone as required before installing the oversize piston.
- Lubricate the wrist pin and rings with assembly lube prior to installation to reduce initial dry startup wear.
- Install the piston rings with the gaps offset as per standard practice to minimize blow-by and oil fouling.
- Use new circlips and ensure they seat fully in the piston grooves to prevent wrist pin movement.
- Verify ring end gaps are within the manufacturer’s specified range after installation and before startup.
- Follow torque and assembly specifications for surrounding components during reassembly and perform a proper break-in procedure.
