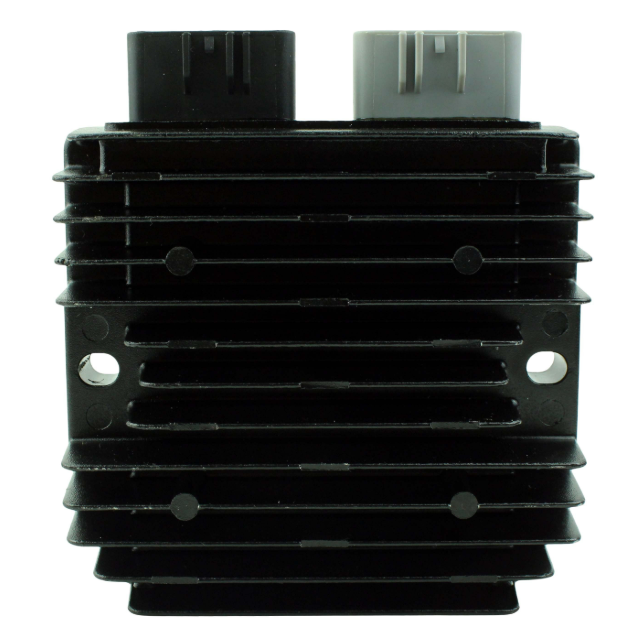

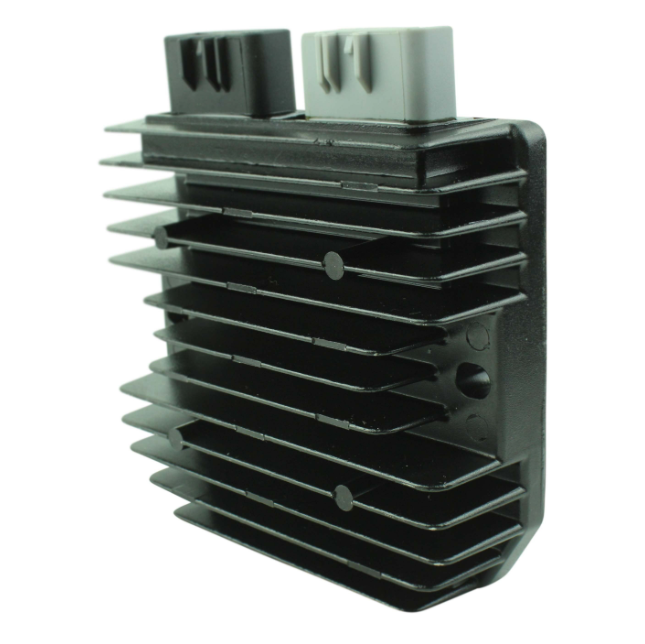

An advanced MOSFET-type replacement regulator rectifier compatible with a wide range of Can-Am ATV, UTV, and Spyder models produced between 2010 and 2018, covering the Commander, Maverick, Outlander, Renegade, Defender, and Spyder ranges. Unlike conventional diode-style regulators, this MOSFET design runs significantly cooler and features built-in overheat protection - temporarily shutting off to cool down rather than burning out. The unit regulates AC output from the stator and converts it to controlled DC voltage to maintain correct battery charge and protect electrical components from voltage overload.
Manufactured to exceed OEM specification using higher-grade electrical components and an improved heat sink. Cross-references Can-Am OEM part number 710001191 for straightforward identification. Note: the Can-Am Renegade 1000R 2015 uses two different regulator types - compare dimensions to your original unit before ordering. Verify your model and year against the fitment table before ordering.
Fitment
Can-Am – Commander
| Model | Year Range |
|---|---|
| Commander 800 | 2011 |
| Commander 800 R | 2012–2017 |
| Commander 1000 | 2011–2017 |
| Commander Max 800 R | 2016–2017 |
| Commander Max 1000 | 2014–2017 |
Can-Am – Defender
| Model | Year Range |
|---|---|
| Defender HD8 800 | 2016–2017 |
| Defender HD10 1000 | 2016–2017 |
| Defender Max HD8 800 | 2017 |
| Defender Max HD10 1000 | 2017 |
Can-Am – Maverick
| Model | Year Range |
|---|---|
| Maverick 1000R | 2013–2017 |
| Maverick 1000R Turbo | 2015–2017 |
| Maverick Max 1000R | 2014–2017 |
| Maverick Max 1000R Turbo | 2015–2017 |
| Maverick X3 1000R Turbo | 2017 |
Can-Am – Outlander
| Model | Year Range |
|---|---|
| Outlander 500 | 2015 |
| Outlander 500 DPS | 2013–2015 |
| Outlander 500 XT | 2010–2015 |
| Outlander 500 XT-P | 2010 |
| Outlander 650 DPS | 2013–2018 |
| Outlander 650 EFI | 2017–2018 |
| Outlander 650 T3 EFI F/C | 2018 |
| Outlander 650 XMR | 2013–2018 |
| Outlander 650 XT | 2010–2018 |
| Outlander 650 XT-P | 2010–2011 |
| Outlander 800 R DPS | 2013–2015 |
| Outlander 800 R XMR | 2011–2012, 2015 |
| Outlander 800 R XT | 2010–2015 |
| Outlander 800 R XT-P | 2010–2015 |
| Outlander 800 R XXC | 2011 |
| Outlander 850 | 2016–2017 |
| Outlander 1000 | 2012 |
| Outlander 1000 DPS | 2013–2016 |
| Outlander 1000 XT | 2012–2015 |
| Outlander 1000 XT-P | 2013–2015 |
| Outlander 1000R | 2016–2018 |
| Outlander Max 500 | 2015 |
| Outlander Max 500 DPS | 2013–2015 |
| Outlander Max 500 LTD | 2010 |
| Outlander Max 500 XT | 2010–2015 |
| Outlander Max 500 XT-P | 2010 |
| Outlander Max 570 | 2016 |
| Outlander Max 650 DPS | 2013–2017 |
| Outlander Max 650 XT | 2010–2017 |
| Outlander Max 650 XT-P | 2010–2012 |
| Outlander Max 800 R | 2013–2015 |
| Outlander Max 800 R DPS | 2013–2015 |
| Outlander Max 800 R LTD | 2010–2012 |
| Outlander Max 800 R XT | 2010–2015 |
| Outlander Max 800 R XT-P | 2010–2015 |
| Outlander Max 850 | 2016–2017 |
| Outlander Max 1000 | 2013–2015 |
| Outlander Max 1000R | 2016–2017 |
| Outlander XMR 1000 | 2013–2016 |
Can-Am – Renegade
| Model | Year Range |
|---|---|
| Renegade 570 | 2016–2017 |
| Renegade 850 | 2016–2017 |
| Renegade 1000R | 2016–2017 |
| Renegade XXC 800 R | 2010–2015 |
| Renegade XXC 1000 | 2012–2016 |
Can-Am – Traxter
| Model | Year Range |
|---|---|
| Traxter HD8 | 2016–2017 |
| Traxter HD10 | 2017 |
Can-Am – Spyder
| Model | Year Range |
|---|---|
| Spyder RS Roadster 990 SE5 | 2013–2015 |
| Spyder RS Roadster 990 SM5 | 2013–2016 |
| Spyder RS-S Roadster 990 SE5 | 2013–2016 |
| Spyder RS-S Roadster 990 SM5 | 2013–2016 |
| Spyder RT Roadster 990 | 2010–2013 |
| Spyder RT-S Roadster 990 | 2010–2013 |
| Spyder ST Roadster 990 SE5 | 2013–2015 |
| Spyder ST Roadster 990 SM5 | 2013–2015 |
| Spyder ST-S Roadster 990 SE5 | 2013–2016 |
| Spyder ST-S Roadster 990 SM5 | 2013–2015 |
Key Features
- Advanced MOSFET design — runs cooler than OEM diode-style regulators
- Built-in overheat protection — shuts off temporarily rather than burning out
- Covers Can-Am Commander, Maverick, Outlander, Renegade, Defender, Traxter, and Spyder variants
- Year range 2010–2018
- Replaces OEM part number 710001191
- Note: Renegade 1000R 2015 uses two different regulator types — verify dimensions before ordering
- No modification required — like-for-like fitment
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| 710001191 | Can-Am / Bombardier |
| FH019AA | Shindengen |
Specifications
| Specification | Detail |
|---|---|
| Component | MOSFET Regulator Rectifier |
| Type | MOSFET (replaces OEM diode-style) |
| Voltage | 12V |
| Overheat Protection | Yes — thermal shutdown and recovery |
| Number of Plugs | 2 |
| Number of Pins | 5 |
| Width | 120mm |
| Length | 111mm |
| Height | 35mm |
| Mounting Hole Centre to Centre | 94mm |
| Application | Can-Am Commander / Maverick / Outlander / Renegade / Defender / Spyder |
| Year Range | 2010–2018 |
| ATV City Part Number | RM30322 |
| Condition | New |
