Machined Aluminium MOSFET Regulator Rectifier with Bypass – Triumph...

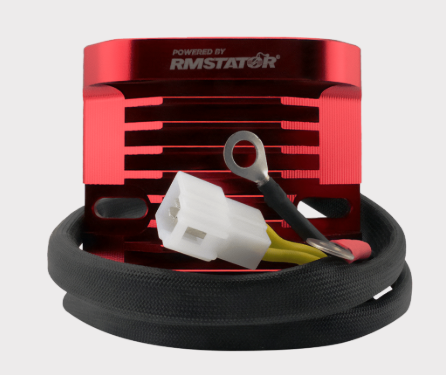

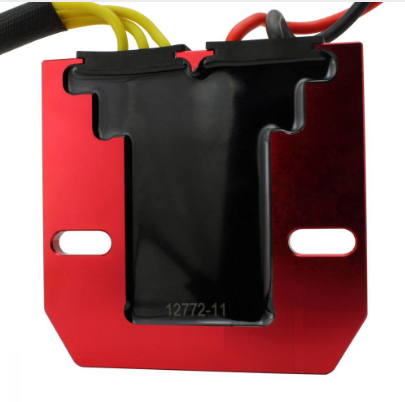

This machined aluminium MOSFET regulator rectifier with bypass function is a direct replacement for the Triumph Daytona 675 and Street Triple 675, covering standard and R variants from 2006 to 2020. It restores correct charging system function to standard specification with no modification required, and the MOSFET design offers superior heat dissipation and charging efficiency compared to the original unit.
Manufactured from premium-grade machined aluminium for consistent performance and long service life, this unit replaces Triumph OEM references T1300823 and T1301234 and is a dependable aftermarket upgrade for servicing the Triumph 675 range, particularly suited to lithium-ion battery installations.
Fitment
| Model | Year Range |
|---|---|
| Triumph Street Triple 675 | 2008–2020 |
| Triumph Street Triple 675 R | 2008–2020 |
| Triumph Daytona 675 | 2006–2020 |
| Triumph Daytona 675 R | 2008–2012 |
Key Features
- Machined aluminium MOSFET regulator rectifier with bypass function
- Direct replacement for Triumph Daytona 675 and Street Triple 675 / 675 R
- Replaces Triumph OEM references T1300823 and T1301234
- Superior heat dissipation over standard OEM unit
- Compatible with lithium-ion and standard battery installations
- Spans 2006 to 2020 model years
- No modification required — like-for-like fitment
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| T1300823 | Triumph |
| T1301234 | Triumph |
Specifications
| Specification | Detail |
|---|---|
| Component | Regulator Rectifier |
| Type | Machined Aluminium MOSFET with Bypass |
| Width | 95mm |
| Length | 90mm |
| Height | 30mm |
| Wire Lengths | 811mm and 350mm |
| Fixation Hole Centres | 75mm |

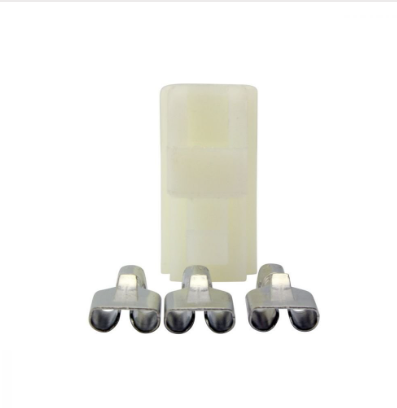

| Number of Plugs / Pins / Wires | 2 plugs / 5 pins / 5 wires |
| Minimum Charging Voltage | 14.5V ± 0.5V |
| Maximum Charging Current | 50A / 500W |
| Open Circuit Voltage | Less than 15V |
| Operating Temperature | -20°C to +85°C |
| Application | Triumph Daytona 675 / Street Triple 675 |
| Year Range | 2006–2020 |
| Condition | New |
