Starter Motor | Kubota RTV900 UTV / B2150 / B9200 / G1800 / G1900 /...

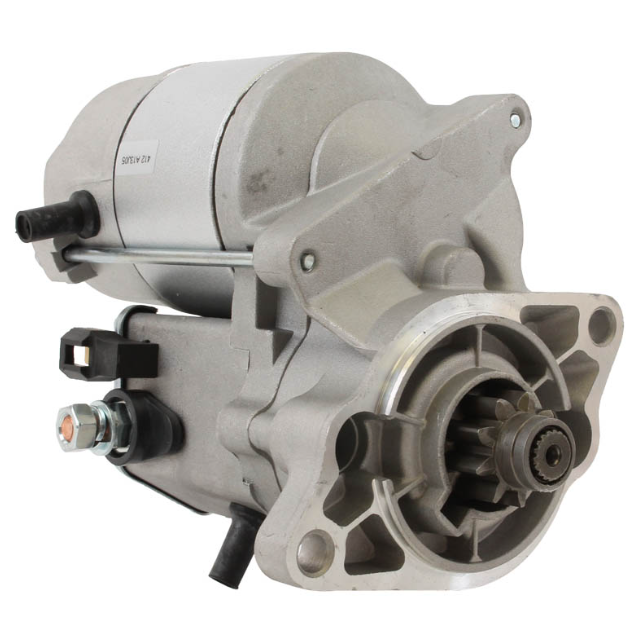

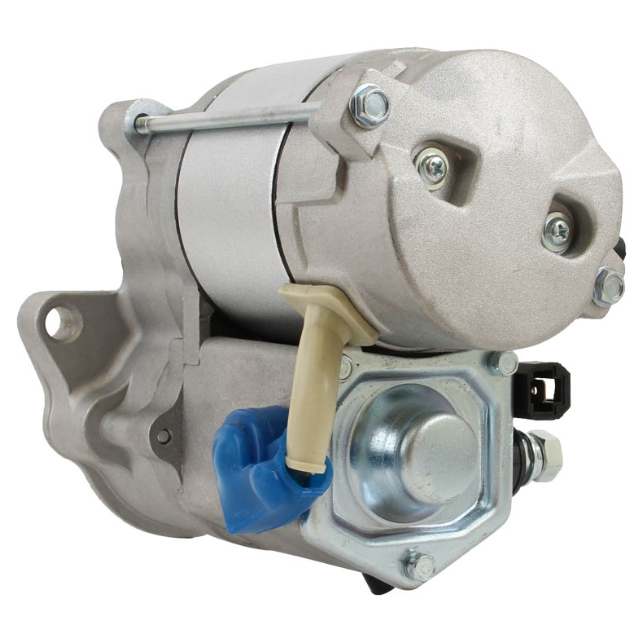

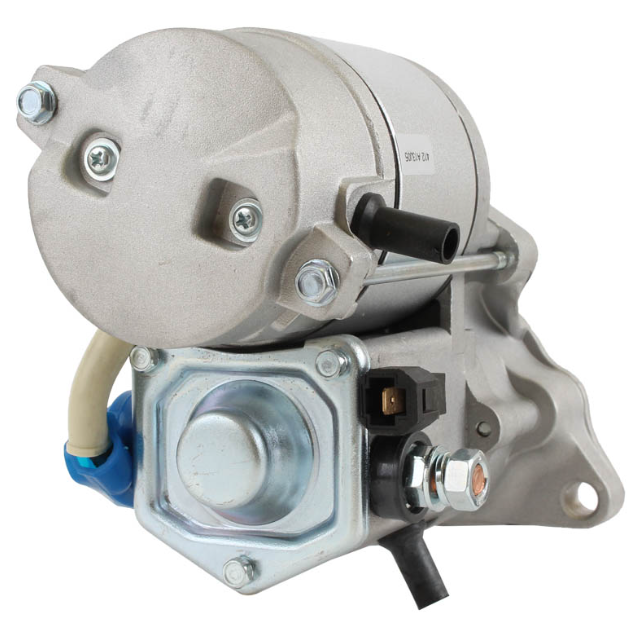

A starter motor for the Kubota RTV900 UTV range with Kubota D902E-UV 21.6HP diesel engine, covering G-H, G-K, G-T, R, R-ASD, S-ASD, T, T-TSD, W, W-HSD, W6-SE, and XT variants. Also fits Kubota machinery including F2400 mower (1989-on), FZ2100 mower, K008 excavator (2000-2005), GL5500S generator (1988-on), B2150DT/E/HSD compact tractors (1987-1998), B9200E compact tractor (1987-1990), and G1800/G1800S/G1900 garden tractors (1989-1995). Manufactured from premium materials for reliable starting performance across utility and machinery applications.
This unit features a 12-volt electrical system with clockwise (CW) rotation and offset gear reduction (OSGR) design. Weight: 9 lbs (4.09 kg). This starter supersedes SND0289.
Key Features
- Starter motor for Kubota RTV900 UTV and various Kubota machinery
- 12-volt electrical system, clockwise rotation, OSGR type
- Weight: 9 lbs (4.09 kg)
- Supersedes SND0289
- Cross-references multiple Kubota and Denso OEM part numbers
- Aftermarket reference: 410-52054
OEM Cross-Reference
| Reference | Part Number |
|---|---|
| Kubota OEM | 15504-63010, 15504-63011, 15504-63012, 15471-63011, 15741-63010, 15741-63011, 16325-63012, 16871-63010, 16871-63011, 16871-63012, 77700-02602, K7561-61810, K7561-61811, K7571-61811, K7571-96800 |
| Denso | 028000-8320, 028000-8321, 128000-3590, 128000-3591, 128000-9950, 128000-9951, 228000-097, 228000-0970, 228000-0971, 428000-2640, 428000-2641, 9702809-832 (reman), 9712809-359 (reman), 9712809-995 (reman), 9722809-097 (reman), 9742809-264 (reman) |
| Arrowhead | SND0289, SND0307, IMI236-001, ND9702809-832, ND9712809-359, ND9712809-995, ND9742809-264 |
| Bosch | SR5056X |
| Dixie | S-8322, S-8524, 246-14119 |
| Lester | 17028, 18419 |
| Lucas Electric | LRS01169 |
| WAI | 2-2656-ND |
| Wilson | 91-29-5217, 91-29-5605 |
| Universal Marine | 302474 |
| Aftermarket Ref | 410-52054 |
Vehicle Fitment
| Model | Years |
|---|---|
| Kubota RTV900G-H (D902E-UV 21.6HP Diesel) | All years |
| Kubota RTV900G-K (D902E-UV 21.6HP Diesel) | All years |
| Kubota RTV900G-T (D902E-UV 21.6HP Diesel) | All years |
| Kubota RTV900R (D902E-UV 21.6HP Diesel) | All years |
| Kubota RTV900R-ASD (D902E-UV 21.6HP Diesel) | All years |
| Kubota RTV900S-ASD (D902E-UV 21.6HP Diesel) | All years |
| Kubota RTV900T (D902E-UV 21.6HP Diesel) | All years |
| Kubota RTV900T-TSD (D902E-UV 21.6HP Diesel) | All years |
| Kubota RTV900W (D902E-UV 21.6HP Diesel) | All years |
| Kubota RTV900W-HSD (D902E-UV 21.6HP Diesel) | All years |
| Kubota RTV900W6-SE (D902E-UV 21.6HP Diesel) | All years |
| Kubota RTV900XT (D902-E3-UV 21.6HP Diesel) | All years |
| Kubota F2400 Mower | 1989-on |
| Kubota FZ2100 Mower | All years |
| Kubota K008 Excavator | 2000–2005 |
| Kubota GL5500S Generator | 1988-on |
| Kubota B2150DT Compact Tractor | 1988–1996 |
| Kubota B2150E Compact Tractor | 1988–1996 |
| Kubota B2150HSD Compact Tractor | 1988–1998 |
| Kubota B9200E Compact Tractor | 1987–1990 |
| Kubota G1800 Garden Tractor | 1989–1995 |
| Kubota G1800S Garden Tractor | 1989–1995 |
| Kubota G1900 Garden Tractor | 1989–1995 |
