KFI A2500-R2 Assault Series 2500lb / 1134kg Steel Cable Winch | 12V...
Steel cable winch from KFI's A2500-R2 ATV Series, rated at 2,500lb / 1,134kg. Features all-metal planetary gear drive, dynamic and mechanical brake, and a handlebar-mounted mini-rocker switch. Supplied with a heavy duty electrical contactor. No hand remote is included. A model-specific mount is required and must be purchased separately for your make and model of ATV.
Specifications
| Specification | Detail |
|---|---|
| Model | A2500-R2 ATV Series |
| Load Rating | 2,500lb / 1,134kg |
| Motor | 12V DC, 1.2hp Permanent Magnet |
| Gear Ratio | 171:1 |
| Transmission | All-Metal Planetary Gear Drive |
| Brake | Dynamic and Mechanical |
| Clutch | All-Metal Cam Activated Freespool |
| Drum Size | 1.5in (D) x 3.15in (L) |
| Cable | 3/16in (D) x 45.9ft (L), Steel |
| Fairlead | Multi-Directional Roller |

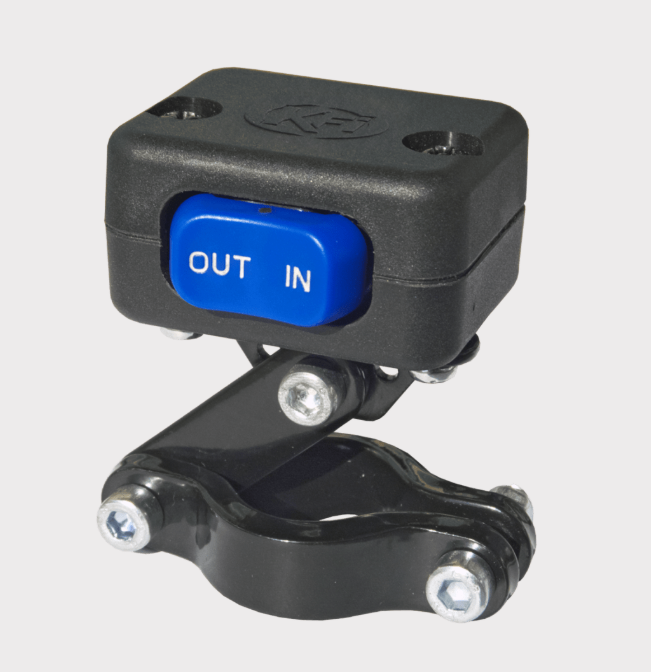

| Control | Handlebar-Mounted Mini-Rocker Switch |

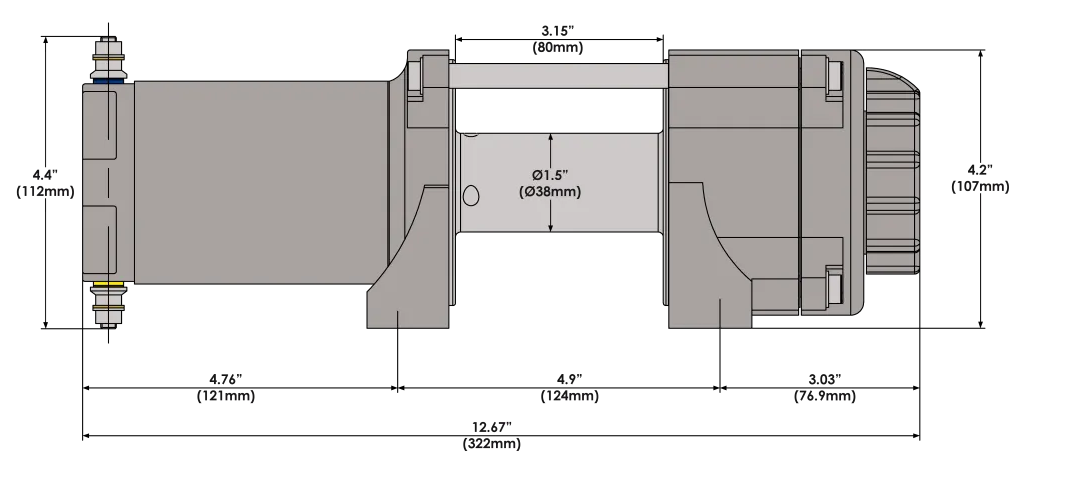

| Winch Dimensions | 12.67in L x 4.06in D x 4.29in H |
| Mounting Bolt Pattern | 3.00in x 4.875in (4-Bolt) |
| Mount Plate | Fairlead Mount Only — Model-Specific Mount Required Separately |
| Recommended Battery | 12Ah Minimum |
| Winch Weight | 25.7lb (Complete Kit) |
| Warranty | 1 Year Limited |
Kit Contents
| Item | Detail |
|---|---|
| Winch | 1x A2500-R2 ATV Series |
| Steel Cable | 45.9ft |
| Handlebar Mini-Rocker Switch | Included |
| Heavy Duty Electrical Contactor | Included |
| Mounting Hardware | Included |
| Installation Instructions | Included |
Line Speed — First Layer (12V DC)
| Line Pull | Line Speed |
|---|---|
| 0lb / 0kg | 8.86 ft/min (2.7 m/min) |
| 1,000lb / 454kg | 9.19 ft/min (2.8 m/min) |
| 1,500lb / 680kg | 7.55 ft/min (2.3 m/min) |
| 2,000lb / 907kg | 6.56 ft/min (2.0 m/min) |
| 2,500lb / 1,134kg | 4.92 ft/min (1.5 m/min) |
Cable Capacity and Pull Rating by Drum Layer
| Drum Layer | Max Pull / Cable Capacity |
|---|---|
| Layer 1 | 2,500lb / 1,134kg — 7.15ft / 2.18m |
| Layer 2 | 2,033lb / 922kg — 15.45ft / 4.71m |
| Layer 3 | 1,713lb / 777kg — 24.7ft / 7.52m |
| Layer 4 | 1,480lb / 671kg — 34.5ft / 10.52m |
| Layer 5 | 1,303lb / 591kg — 45.9ft / 14m |
Vehicle Fitment
| Model | Years |
|---|---|
| Can-Am Outlander 500 EFI | 2013–2015 |
| Can-Am Outlander 500 EFI DPS | 2013–2015 |
| Can-Am Outlander 650 EFI | 2013–2016 |
| Can-Am Outlander 650 EFI DPS | 2013–2016 |
| Can-Am Outlander 800R EFI | 2013–2015 |
| Can-Am Outlander 800R EFI DPS | 2013–2015 |
| Can-Am Outlander 850 EFI DPS | 2016 |
| Can-Am Outlander 1000 EFI | 2013–2016 |
| Can-Am Outlander 1000 EFI DPS | 2013–2016 |
