Yamaha Grizzly 550 / 700 / Kodiak 700 CV Driveshaft – Front | YFM55...

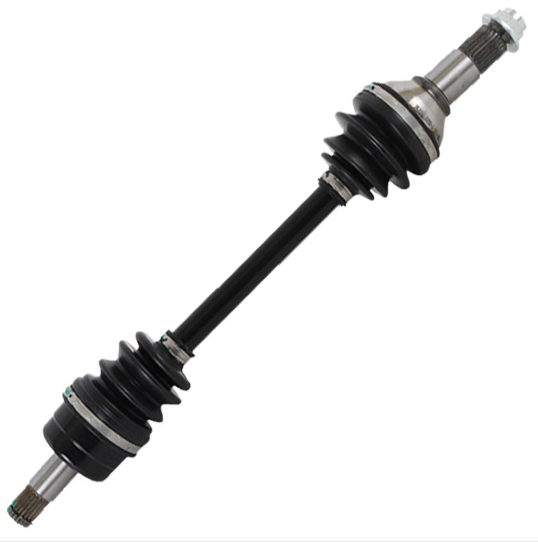

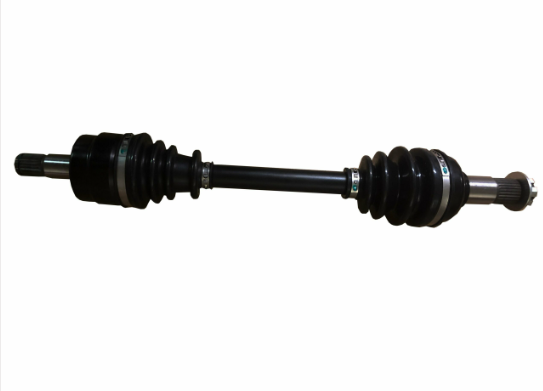

This front CV driveshaft is a direct-fit replacement for the Yamaha Grizzly 550 and 700 range and the Kodiak 700 EPS, covering standard, EPS, and Hunter variants from 2009 to 2016. It restores full front axle drive to standard specification and requires no modification for fitment.
Manufactured from premium-grade materials, this shaft is built to withstand rugged use and harsh conditions across the YFM550 and YFM700 platforms. It cross-references five Yamaha OEM part numbers and is a dependable aftermarket solution for servicing this model range.
Fitment
| Model | Year Range |
|---|---|
| Yamaha Grizzly 550 4WD YFM550FG (558cc) | 2009–2014 |
| Yamaha Grizzly 550 4WD EPS YFM550FG (558cc) | 2009–2014 |
| Yamaha Grizzly 550 4WD Hunter YFM550FGH (558cc) | 2009–2014 |
| Yamaha Grizzly 550 4WD EPS Hunter YFM550FGH (558cc) | 2009–2014 |
| Yamaha Grizzly 700 4WD Hunter YFM700FGH (686cc) | 2009–2013 |
| Yamaha Grizzly 700 EPS 4WD Hunter YFM700FGHP (686cc) | 2009–2013 |
| Yamaha Kodiak 700 EPS 4WD YFM70KP (700cc) | 2016 |
Key Features
- Direct OEM-specification replacement front CV driveshaft
- Suits Yamaha Grizzly 550 and 700 across standard, EPS, and Hunter variants
- Also fits Yamaha Kodiak 700 EPS 4WD 2016
- Covers 558cc, 686cc, and 700cc engine displacements
- Spans 2009 to 2016 model years
- Cross-references five Yamaha OEM part numbers
- Premium materials for durability in all-terrain applications
- No modification required — like-for-like fitment
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| 3B4-2510F-00-00 | Yamaha |
| 3B4-2518E-00-00 | Yamaha |
| 28P-2510F-00-00 | Yamaha |
| 28P-2510J-00-00 | Yamaha |
| 28P-2518E-00-00 | Yamaha |
Specifications
| Specification | Detail |
|---|---|
| Position | Front |
| Application | Yamaha Grizzly 550 / 700 / Kodiak 700 |
| Engine Variants | 558cc / 686cc / 700cc |
| Year Range | 2009–2016 |
| Condition | New |
