20% High Output Generator Stator – Kawasaki KFX700 / KVF650/700/750...
20% High Output Generator Stator – Kawasaki KFX700 / KVF650/700/750 Brute Force / Prairie / Suzuki LTV700 Twin Peaks – Replaces 21003-0003 / 21003-1359 – 2002–2013 is backordered and will ship as soon as it is back in stock.

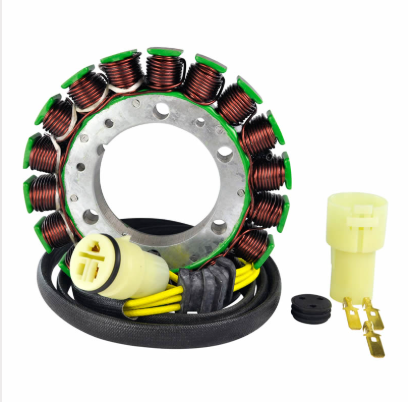

This high output generator stator delivers 20% more output over stock while remaining fully compatible with all other OEM components. It covers the Kawasaki KFX700, KVF650/700 Prairie, KVF650/750 Brute Force range, and Suzuki LTV700F Twin Peaks from 2002 to 2013. Built with the highest grade lamination materials and copper windings rated to 200°C. Backed by a one year limited warranty.

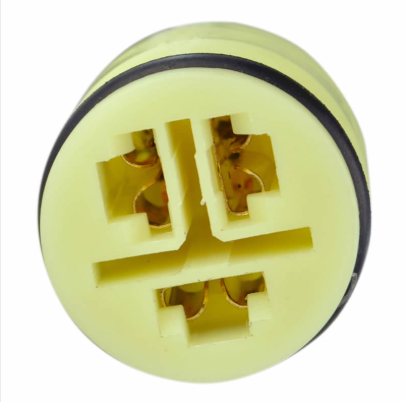

The kit includes pick-up pulsar coil, connector, opposite connector (main harness side), and rubber grommet for a complete installation with no additional parts required.
Fitment
| Model | Year Range |
|---|---|
| Kawasaki KFX700 | 2004–2009 |
| Kawasaki KVF650 Prairie | 2002–2003 |
| Kawasaki KVF700 Prairie | 2004–2006 |
| Kawasaki KVF650 Brute Force | 2005–2013 |
| Kawasaki KVF650 Brute Force HD i | 2006–2010 |
| Kawasaki KVF650 Brute Force i | 2006–2013 |
| Kawasaki KVF750 Brute Force i | 2005–2007 |
| Suzuki LTV700F Twin Peaks | 2004–2005 |
Key Features
| Feature | Detail |
|---|---|
| Component | High Output Generator Stator |
| Output | 20% more than stock OEM |
| Compatibility | Works with all other OEM components |
| Fitment | Plug-and-play — no modification required |
| Lamination | Highest grade materials |
| Windings | Highest grade copper — rated to 200°C |
Kit Contents
| Item | Included |
|---|---|
| Stator | ✓ |
| Pick-up Pulsar Coil | ✓ |
| Connector | ✓ |
| Opposite Connector (main harness side) | ✓ |
| Rubber Grommet | ✓ |
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| 21003-0003 | Kawasaki |
| 21003-0012 | Kawasaki |
| 21003-0092 | Kawasaki |
| 21003-1359 | Kawasaki |
| K2100-31359 | Suzuki |
Specifications
| Specification | Detail |
|---|---|
| Component | High Output Generator Stator |
| Output | 20% above stock |
| Application | Kawasaki KFX700 / KVF650/700/750 / Suzuki LTV700 Twin Peaks |
| Year Range | 2002–2013 |
| Winding Rating | 200°C |
| Warranty | One year limited |
| Condition | New |
