75W High Output Stator – Yamaha YFS200 Blaster ATV – Replaces 2XJ-8...

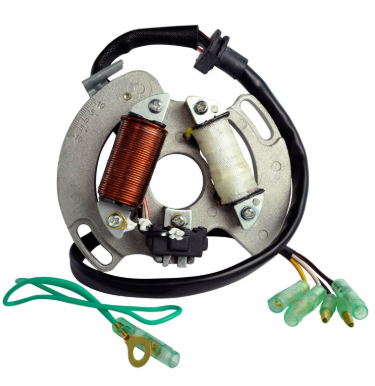

This 75W high output stator is a direct plug-and-play replacement for the Yamaha YFS200 Blaster ATV, covering the full production run from 1988 to 2006. It delivers 75W output for running brighter lighting and includes an adjustable timing plate allowing timing advance or retard of up to 10 degrees. Built with the highest grade lamination materials and copper windings rated to 200°C.

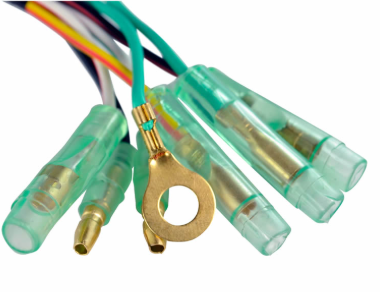

The kit includes connector, rubber grommet, and adjustable timing plate for a complete installation with no additional parts required.
Fitment
| Model | Year Range |
|---|---|
| Yamaha YFS200 Blaster | 1988–2006 |
Key Features
| Feature | Detail |
|---|---|
| Component | High Output Stator |
| Output | 75W |
| Timing | Adjustable timing plate — up to 10° advance or retard |
| Fitment | Plug-and-play — no modification required |
| Lamination | Highest grade materials |
| Windings | Highest grade copper — rated to 200°C |
Kit Contents
| Item | Included |
|---|---|
| Stator | ✓ |
| Adjustable Timing Plate | ✓ |
| Connector | ✓ |
| Rubber Grommet | ✓ |
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| 2XJ-85560-M0-00 | Yamaha |
| 3JM-85560-00-00 | Yamaha |
| 5VM-85560-00-00 | Yamaha |
Specifications
| Specification | Detail |
|---|---|
| Component | High Output Stator |
| Output | 75W |
| Timing Adjustment | Up to 10° advance or retard |
| Application | Yamaha YFS200 Blaster |
| Year Range | 1988–2006 |
| Winding Rating | 200°C |
| Condition | New |
