200W High Output Stator & AC Regulator Kit – Yamaha YFZ350 Bans...

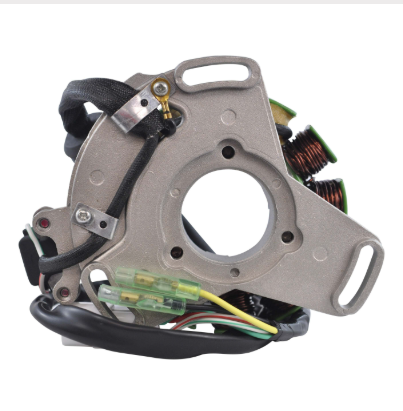

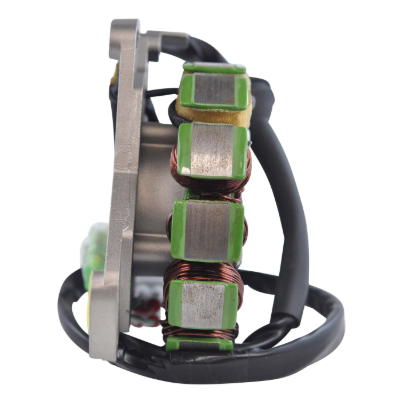

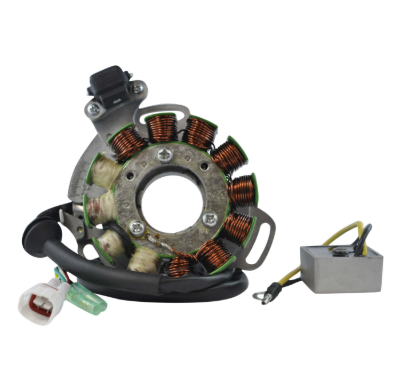

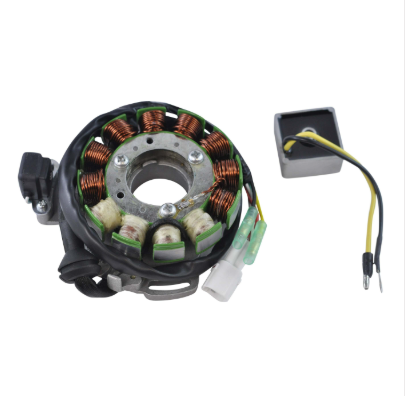

This 200W high output stator and AC regulator kit is a direct plug-and-play replacement for the Yamaha YFZ350 Banshee ATV, covering 1995 to 2006 model years. The stator is built with the highest grade lamination materials and copper windings rated to 200°C. The included 12V AC regulator — rated at 225W and used by Baja winners — delivers precise voltage control, eliminating light burnout and reducing flickering and dimming when running standard halogen and quartz lighting. All units are tested before dispatch and backed by a one year limited warranty.

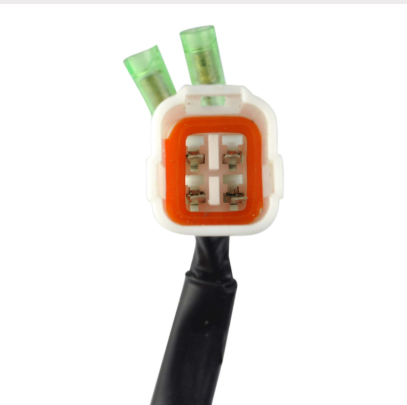

The kit includes pick-up pulsar coil, connector, rubber grommet, back plate, and adjustable timing plate allowing timing advance or retard of up to 10 degrees.
Fitment
| Model | Year Range |
|---|---|
| Yamaha YFZ350 Banshee | 1995–2006 |
Key Features — Stator
| Feature | Detail |
|---|---|
| Component | High Output Generator Stator |
| Output | 200W |
| Fitment | Plug-and-play — no modification required |
| Lamination | Highest grade materials |
| Windings | Highest grade copper — rated to 200°C |
| Timing | Adjustable timing plate — up to 10° advance or retard |
| Warranty | One year limited |
Key Features — AC Regulator
| Feature | Detail |
|---|---|
| Component | 12V AC Regulator |
| Rating | 225W |
| Lighting | Compatible with all standard halogen and quartz lights |
| Voltage | Precise control — eliminates light burnout |
| Quality | Reduces flickering and dimming |
| Quality Control | All units tested before dispatch |
| Warranty | One year limited |
Kit Contents
| Item | Included |
|---|---|
| Stator | ✓ |
| AC Regulator | ✓ |
| Pick-up Pulsar Coil | ✓ |
| Adjustable Timing Plate | ✓ |
| Back Plate | ✓ |
| Connector | ✓ |
| Rubber Grommet | ✓ |
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| 3GG-85510-00-00 | Yamaha |
| 3GG-85510-01-00 | Yamaha |
Specifications
| Specification | Detail |
|---|---|
| Kit Contents | 200W Stator + 225W AC Regulator |
| Timing Adjustment | Up to 10° advance or retard |
| Application | Yamaha YFZ350 Banshee |
| Year Range | 1995–2006 |
| Winding Rating | 200°C |
| Warranty | One year limited |
| Condition | New — tested before dispatch |
