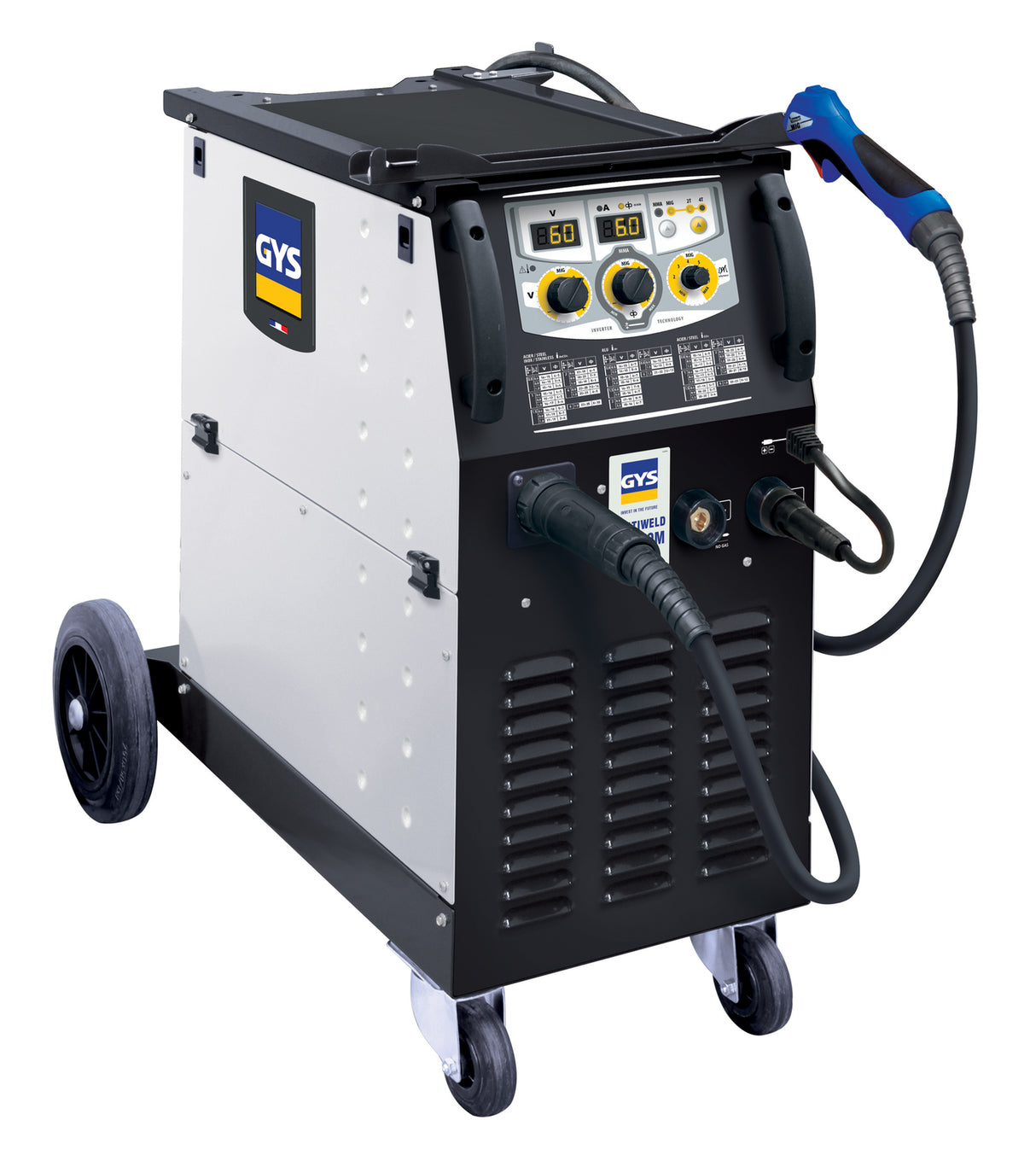

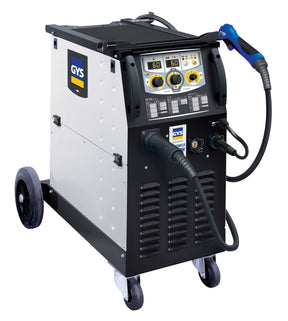

The GYS Multiweld FV 220M is a single-phase power source combining MIG/MAG (including flux-cored) and MMA welding processes. Thanks to its FV function (Flexible Voltage), it operates across a voltage range of 85 to 265V. The intuitive control panel features two digital displays for quick, precise adjustment, while the high-precision wire feed system with 4 wire guide rollers achieves clean welds, including when welding aluminium.
Key Features
- Single-phase welder: MIG/MAG (with flux-cored capability) and MMA
- FV (Flexible Voltage) function, operates across 85-265V

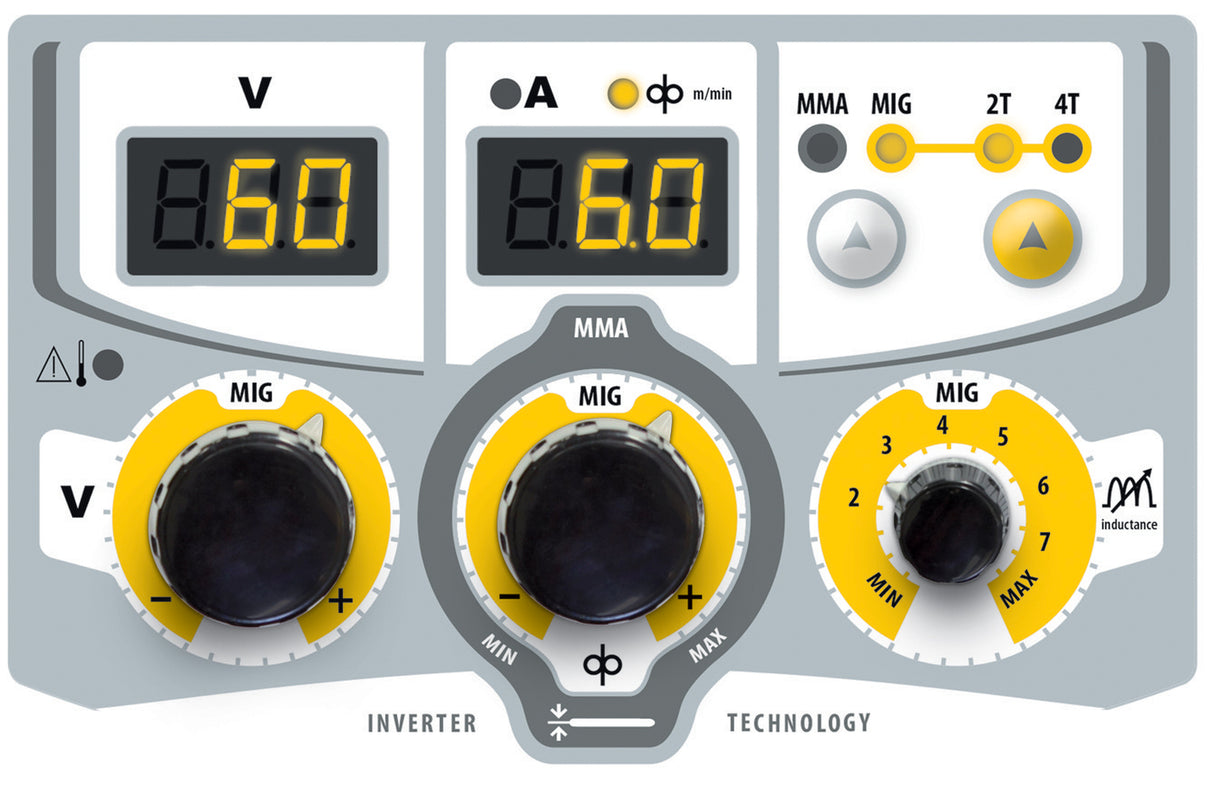

- Two digital displays for quick, precise adjustment
- High-precision wire feed system with 4 wire guide rollers
- Achieves clean welds, including on aluminium
- Dual current settings for 230V and 110V operation
Included with Delivery
- 1x MIG25 torch (3m)
- 1x earth cable, 25mm² (2.5m)
- 1x electrode holder, 35mm² (4m)
Process Specifications
| Process | Wire/Electrode Detail |
|---|---|
| MIG/MAG - Steel wire | Ø 0.6 - 1.0 mm |
| MIG/MAG - Aluminium wire | Ø 0.8 - 1.0 mm |
| MIG/MAG - Stainless steel wire | Ø 0.8 - 1.0 mm |
| MIG/MAG - Flux-cored wire | Ø 0.8 - 1.0 mm |
| MMA electrodes | Ø 1.6 - 5.0 mm |
Specifications
| Specification | Detail |
|---|---|
| Type | Multi-Process Welder (MIG/MAG, MMA) |
| Dimensions (L x W x H) | 770 x 790 x 470 mm |
| Current range (230V) | 30 - 200 A (MMA) / 40 - 250 A (MIG) |
| Current range (110V) | 30 - 120 A (MMA) / 30 - 140 A (MIG) |
| Voltage/Frequency | 85 - 265 V, 50/60 Hz |
| Current requirement | 16 / 32 A |
| Mains fuse | 16 / 32 A |
| Control range | 30 - 220 A |
| Protection class | IP23 |
| Hose length | 3 m |
| Part number | 19340564 |
| Reference number | 065482 |
| Weight | 61.60 kg |
| EAN | 3154020065482 |
| Condition | New |
