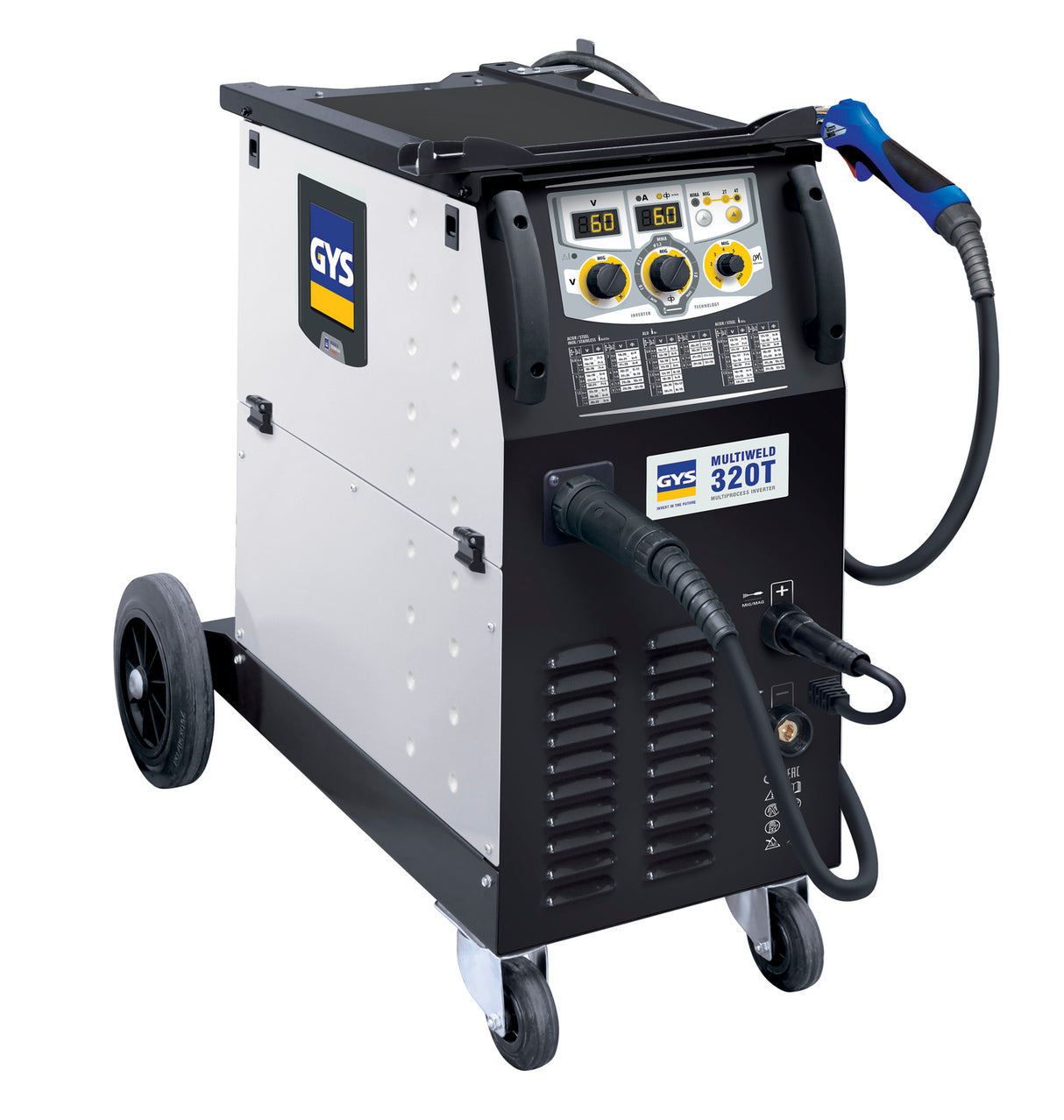

The GYS Multiweld 320T is a three-phase multi-process welder for MIG/MAG, flux-cored, and MMA welding. Its intuitive control panel with two digital displays makes precise adjustment straightforward, while a precise, powerful 4-roller wire feed system allows easy welding with Ø1.2mm wire and consistent weld quality, including on aluminium.
The unit offers selectable 2-stroke or 4-stroke operation, with a front-panel welding guide table helping users select correct voltage and wire feed speed settings by material thickness. The display remains readable in difficult lighting conditions, and the simple control panel with buttons and dial can be adjusted even while wearing gloves.
Key Features
- Three-phase multi-process welder: MIG/MAG, flux-cored, MMA
- Two digital displays for precise adjustment
- 4-roller wire feed system, handles Ø1.2mm wire
- Selectable 2-stroke or 4-stroke operation
- Front-panel welding guide table for voltage/wire speed settings by material thickness
- Display readable in difficult lighting conditions
- Glove-friendly control panel with buttons and dial
- Suits wire spools Ø200/300mm
- Torch with Euro connection for quick assembly/disassembly
- Connection socket (36V, 4.2A) for gas preheating with pure CO2 (gas preheater optional)
- Matching EURO plug
- Reinforced housing
- Stable, free-running wheels
- Gas bottle holder, 4m³
Included with Delivery
- 1x MIG36 torch (4m)
- 1x earth cable, 35mm² (4m)
Process Specifications
| Process | Wire/Electrode Detail |
|---|---|
| MIG/MAG - Steel wire | Ø 0.6 - 1.2 mm |
| MIG/MAG - Aluminium wire | Ø 0.8 - 1.2 mm |
| MIG/MAG - Stainless steel wire | Ø 0.6 - 1.2 mm |
| MIG/MAG - Flux-cored wire | Ø 0.9 - 1.2 mm |
| MMA electrodes | Ø 2.0 - 6.0 mm |
Specifications
| Specification | Detail |
|---|---|
| Type | Multi-Process Welder (MIG/MAG, Flux-cored, MMA) |
| Dimensions (L x W x H) | 770 x 790 x 470 mm |
| Current range (MMA) | 40 - 300 A |
| Current range (MIG) | 40 - 320 A |
| Control range | 40 - 320 A |
| Voltage/Frequency | 400 V, 50/60 Hz |
| Mains fuse | 16 A |
| Open circuit voltage | 64 V |
| Protection class | IP21 |
| Hose length | 4 m |
| Part number | 19050265 |
| Reference number | 079250 |
| Weight | 75.70 kg |
| EAN | 3154020079250 |
| Condition | New |
