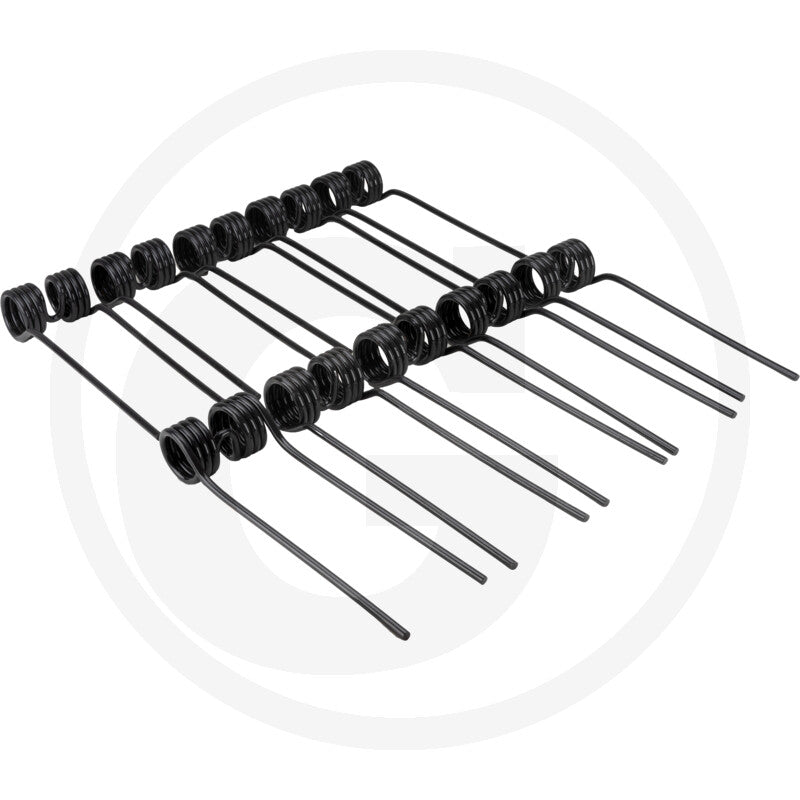

Granit Rotary Tedder Tine - Kuhn (Pack of 10)
Granit Rotary Tedder Tine - Kuhn (Pack of 10) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping info
Delivery and Shipping info
- Standard delivery (2-4 working days) - £4.99 on eligible UK mainland orders under £50.
- Express delivery - £6.99 on eligible UK mainland orders placed before 2pm.
- Large equipment including international orders are subject to different delivery rates and timescales.
Returns
Returns
Start Your Return Online (Recommended)
- Log In: Sign into your account on our website.
- Select Order: Navigate to your order history and select the item you wish to return.
- Initiate Return: Follow the simple prompts to start your return.

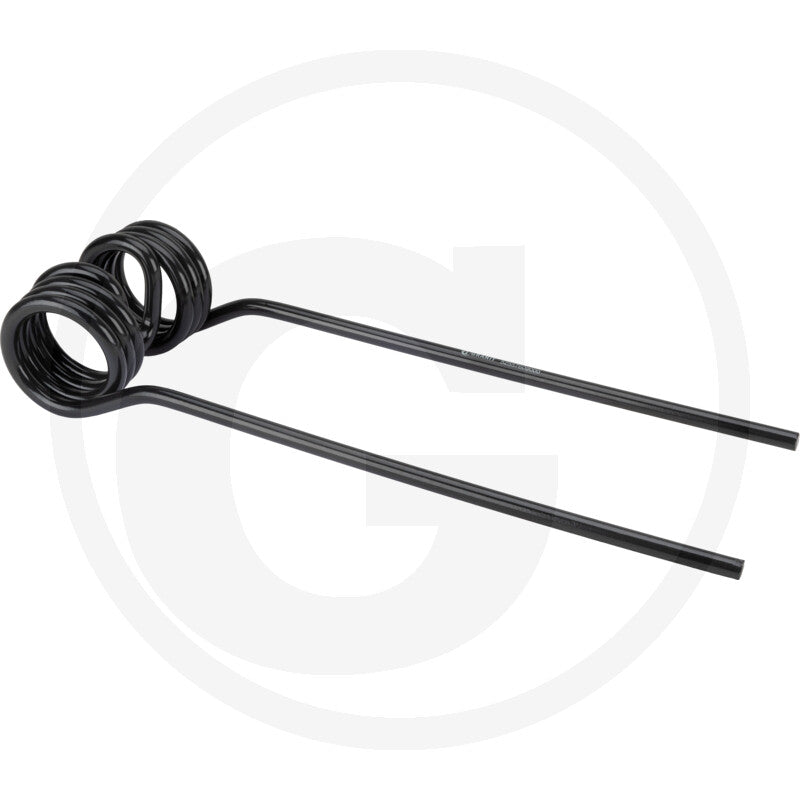

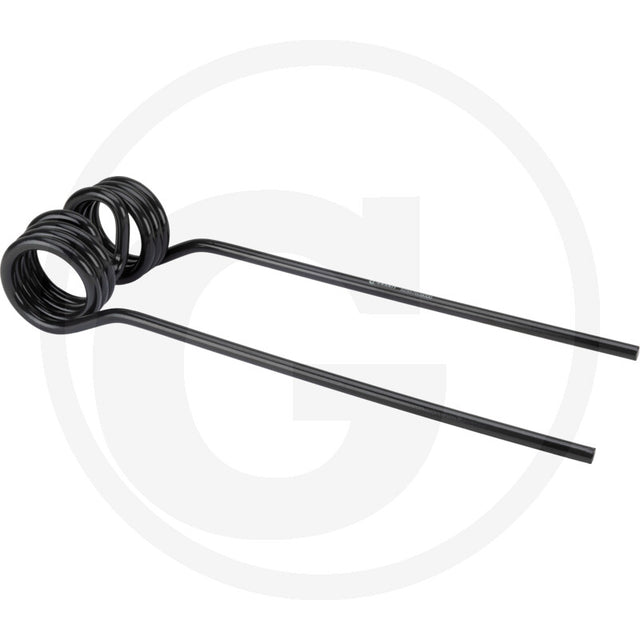

Rotary tedder tine for use on Kuhn haymaking equipment, supplied in a pack of 10. The tine is manufactured from tempered spring steel, providing the flexibility and fatigue resistance required for rotary tedder applications.

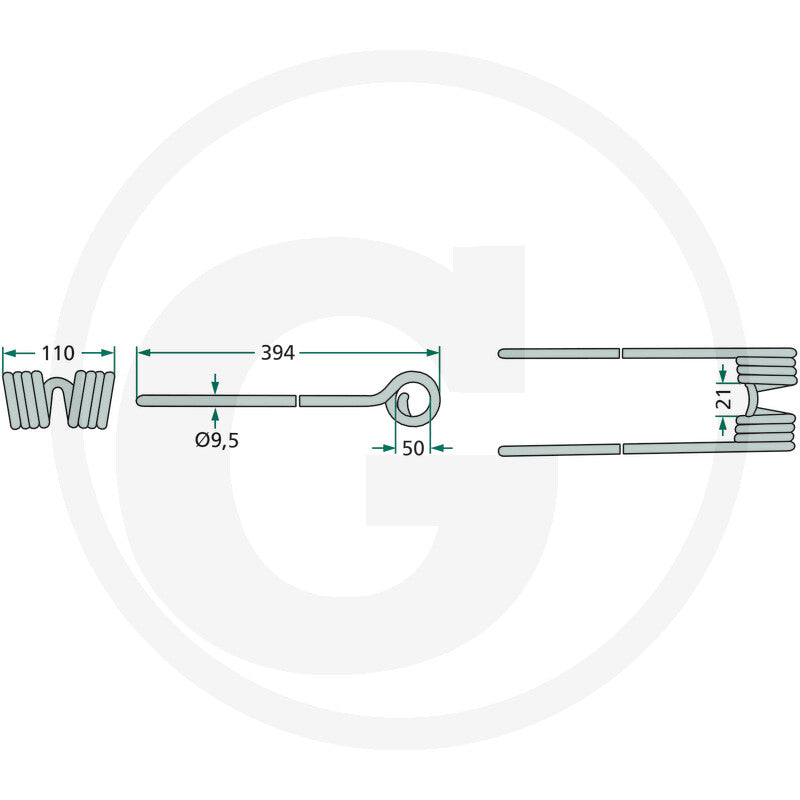

This part measures 394mm in length, 110mm in width, and 9.5mm thick, and is intended as a direct fit replacement part with a wide range of manufacturer cross-references.
Fitment
| Brand | Series/Type |
|---|---|
| Kuhn | GF 22 |
| Kuhn | GF 440 |
| Kuhn | GF 3701 |
| Kuhn | GF 4000 |
| Kuhn | GF 4000M |
| Kuhn | GF 4201 |
| Kuhn | GF 4201MH |
| Kuhn | GF 5000 |
| Kuhn | GF 5001 |
| Kuhn | GF 5001MH |
| Kuhn | GF 6000 |
| Kuhn | GF 6001 |
| Kuhn | GF 6301 |
| Kuhn | GF 7000 |
| Kuhn | GF 7001 |
Key Features
- Manufactured from tempered spring steel
- Dimensions: 394mm length x 110mm width x 9.5mm thickness
- Fits Kuhn GF series rotary tedders (see fitment table)
- Supplied in a pack of 10
- Cross-referenced against 9 manufacturer reference numbers
OEM Cross-Reference
| Part Number | Type |
|---|---|
| 52557609000/10 | Granit part number |
| 57609000 | Reference number |
| 804-57609000 | Reference number |
| KT3 | Reference number |
| 576-090-00 | Reference number |
| A57609000 | Reference number |
| 127-1264 | Reference number |
| KT-3 | Reference number |
| 279542 | Reference number |
Specifications
| Specification | Detail |
|---|---|
| Type | Rotary tedder tine |
| Thickness | 9.5mm |
| Width | 110mm |
| Length | 394mm |
| Pack quantity | 10 |
| Weight | 12.22kg |
| EAN | 4059139024360 |
| Condition | New |
