Generator Stator – Can-Am Traxter 500 / Traxter 650 / Traxter Max 500/650 ATV – Replaces 420296321 – 1999–2005
Generator Stator – Can-Am Traxter 500 / Traxter 650 / Traxter Max 500/650 ATV – Replaces 420296321 – 1999–2005 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping info
Delivery and Shipping info
- Standard delivery (2-4 working days) - £4.99 on eligible UK mainland orders under £50.
- Express delivery - £6.99 on eligible UK mainland orders placed before 2pm.
- Large equipment including international orders are subject to different delivery rates and timescales.
Returns
Returns
Start Your Return Online (Recommended)
- Log In: Sign into your account on our website.
- Select Order: Navigate to your order history and select the item you wish to return.
- Initiate Return: Follow the simple prompts to start your return.

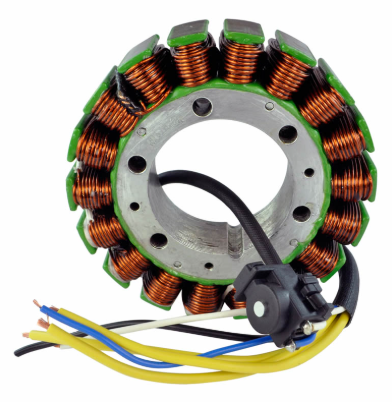

This generator stator is a direct replacement for the Can-Am Traxter 500, Traxter 650, Traxter Max 500, and Traxter Max 650 ATV, covering 1999 to 2005 model years. Built with the highest grade lamination materials and copper windings rated to 200°C, it delivers reliable charging and ignition system performance. A pick-up pulsar coil is included. All units are tested before dispatch and backed by a one year limited warranty.
Installation note: you must re-install your original rubber grommet alongside the new connector supplied. Once done, this becomes a direct plug-and-play unit requiring only minimal mechanical experience to fit.
Fitment
| Model | Year Range |
|---|---|
| Can-Am Traxter 500 | 1999–2005 |
| Can-Am Traxter 650 | 2005 |
| Can-Am Traxter Max 500 | 2003–2005 |
| Can-Am Traxter Max 650 | 2005 |
Key Features
| Feature | Detail |
|---|---|
| Component | Generator Stator |
| Fitment | Direct fit — re-install original grommet with new connector supplied |
| Lamination | Highest grade materials |
| Windings | Highest grade copper — rated to 200°C |
| OEM Reference | Replaces Can-Am 420296321 |
| Quality Control | All units tested before dispatch |
Kit Contents
| Item | Included |
|---|---|
| Stator | ✓ |
| Pick-up Pulsar Coil | ✓ |
| Connector | ✓ |
Note: original rubber grommet must be re-used from the original unit.
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| 420296321 | Can-Am |
| 711296107 | Can-Am |
Specifications
| Specification | Detail |
|---|---|
| Component | Generator Stator |
| Application | Can-Am Traxter 500/650 / Traxter Max 500/650 |
| Year Range | 1999–2005 |
| Winding Rating | 200°C |
| Warranty | One year limited |
| Condition | New — tested before dispatch |
