Generator Stator – Polaris Sportsman 600 / 700 / MV7 ATV – Replaces...

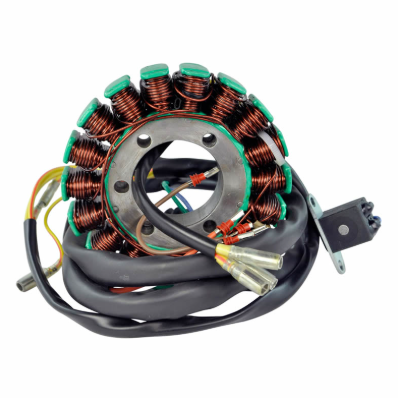

This generator stator is a direct plug-and-play replacement for the Polaris Sportsman 600, Sportsman 700 Carb, and Sportsman MV7, covering 2004 to 2006 model years. Built with the highest grade lamination materials and copper windings rated to 200°C, it delivers reliable charging and ignition system performance. An opposite connector (main harness side) is included to address the common issue of melted or corroded originals. Backed by a one year limited warranty.
Important: this stator does not include the factory 16-gang connector. There is more than one possible stator for the Sportsman 700 Non-EFI 4x4 2004 and Sportsman 600 2004 — this unit (RM01330) has an outer diameter of 108mm, inner diameter of 40mm, and thickness of 13mm. Please compare carefully with your original part before ordering.
Fitment
| Model | Year Range |
|---|---|
| Polaris Sportsman 600 | 2004–2005 |
| Polaris Sportsman 700 Carb | 2004–2006 |
| Polaris Sportsman MV7 | 2005 |
Key Features
| Feature | Detail |
|---|---|
| Component | Generator Stator |
| Fitment | Plug-and-play — no modification required |
| Lamination | Highest grade materials |
| Windings | Highest grade copper — rated to 200°C |
| Includes | Opposite connector (main harness side) |
| Important Note | Does not include factory 16-gang connector |
Kit Contents
| Item | Included |
|---|---|
| Stator | ✓ |
| Pick-up Pulsar Coil | ✓ |
| Connector | ✓ |
| Opposite Connector (main harness side) | ✓ |
| Rubber Grommet | ✓ |
OEM Cross-Reference
| OEM Part Number | Manufacturer |
|---|---|
| 4011609 | Polaris |
| 3089965 | Polaris |
| 4010901 | Polaris |
Stator Dimensions
| Dimension | Detail |
|---|---|
| Outer Diameter | 108mm |
| Inner Diameter | 40mm |
| Thickness | 13mm |
Specifications
| Specification | Detail |
|---|---|
| Component | Generator Stator |
| Application | Polaris Sportsman 600 / 700 Carb / MV7 |
| Year Range | 2004–2006 |
| Winding Rating | 200°C |
| Warranty | One year limited |
| Condition | New |
