Denso Starter Motor 12V 2.7kW - Hyster, Yale Forklift
Regular price
£0.00
Unit price
Shipping calculated at checkout.
Denso Starter Motor 12V 2.7kW - Hyster, Yale Forklift is backordered and will ship as soon as it is back in stock.
Delivery and Shipping info
Delivery and Shipping info
- Standard delivery (2-4 working days) - £4.99 on eligible UK mainland orders under £50.
- Express delivery - £6.99 on eligible UK mainland orders placed before 2pm.
- Large equipment including international orders are subject to different delivery rates and timescales.
Returns
Returns
Start Your Return Online (Recommended)
- Log In: Sign into your account on our website.
- Select Order: Navigate to your order history and select the item you wish to return.
- Initiate Return: Follow the simple prompts to start your return.

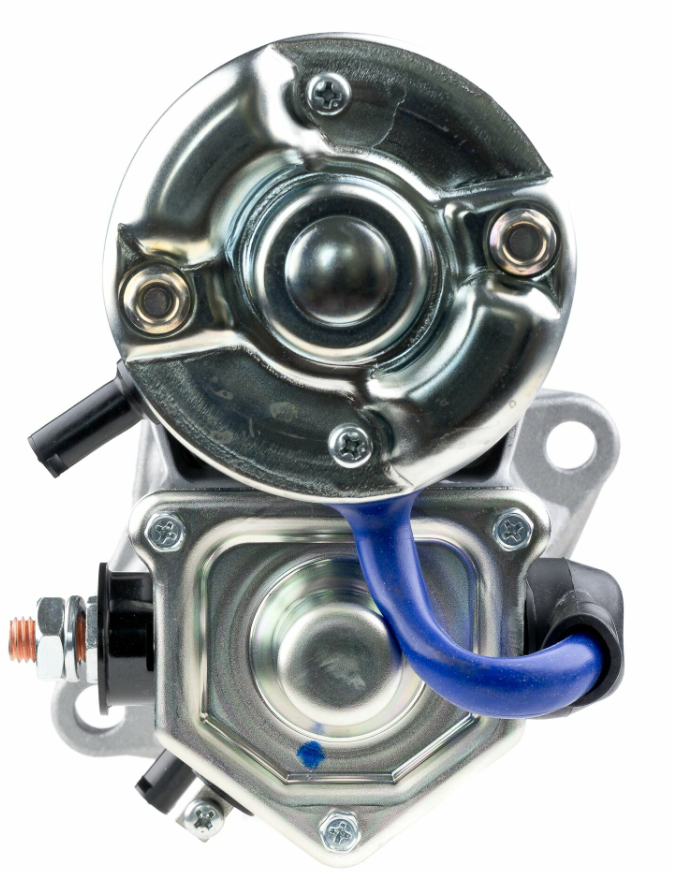

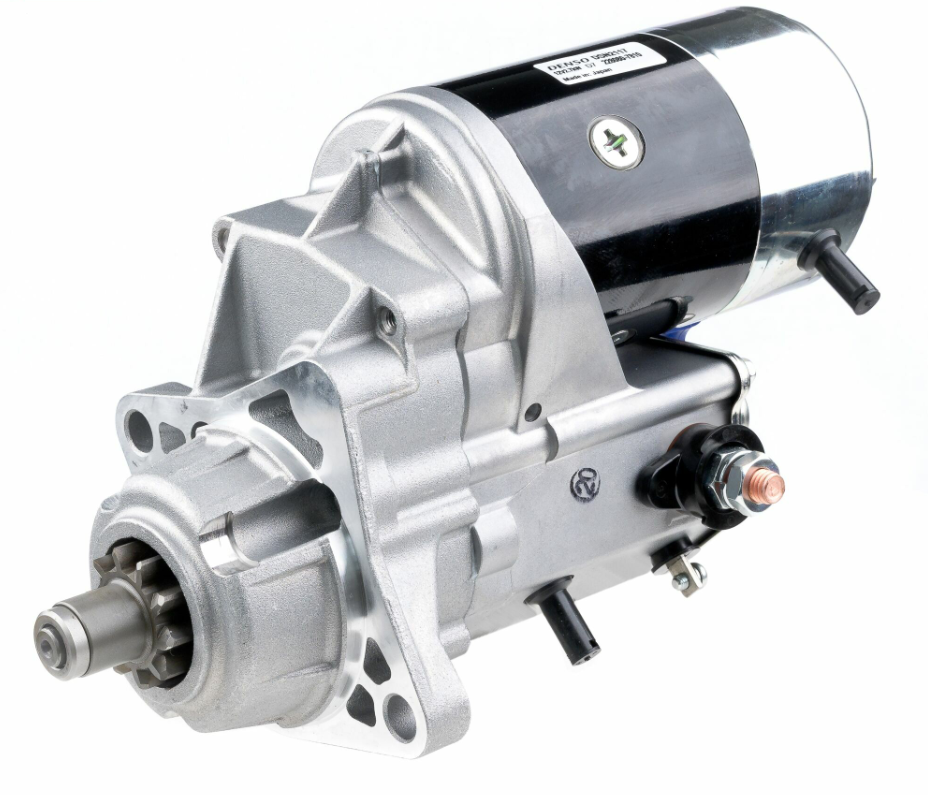

The Denso Starter Motor is a 12V, 2.7kW starter with a 10-tooth pinion, supplied with clockwise rotation. It is a direct fit replacement using original manufacturer specifications, suiting a range of Hyster and Yale forklift models.
Cross-referencing Denso and Hyster OE part numbers, this starter is engineered to original fitment standards for reliable starting performance.
Fitment
| Brand | Series / Type |
|---|---|
| Hyster | FD35P, FD40P, FD40PS, FD45P, FD50P (1998) |
| Hyster | H120XL, H70XL (1998) |
| Hyster | H3.50-5.50XM, H4.00XM-6, H4.00XMS-6 (L005) |
| Yale | GP1200 LJ, GP1200 MJ, GP70 LJ, GP70 MJ (1999) |
Key Features
- 12V, 2.7kW starter motor
- 10-tooth pinion
- Clockwise rotation
- Fits Hyster FD/H series and Yale GP series forklifts
- Cross-references three OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2117 | Reference number |
| 228000-7810 | Denso |
| 228080-7810 | Denso |
| 1388721 | Hyster |
| 580013353 | Yale |

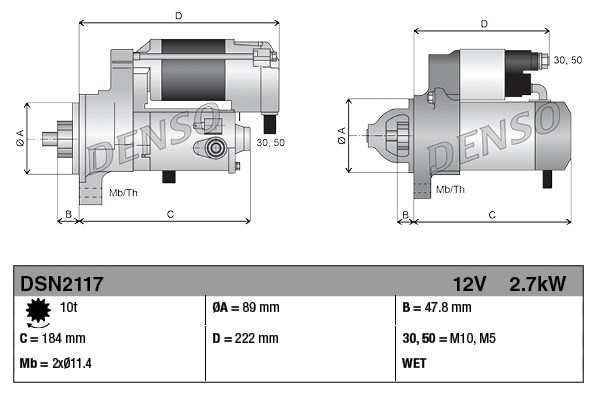

Specifications
| Specification | Detail |
|---|---|
| Type | Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 2.7 kW |
| No. of pinion teeth | 10 |
| Holes / PCD | 2 x 11.4mm |
| Spacing flange to flywheel | 47.8 mm |
| Installation length | 222 mm |
| Fitting diameter | 89 mm |
| Direction of rotation | Clockwise |
| Part number | 3780010316 |
| Weight | 8.85 kg |
| Condition | New |
