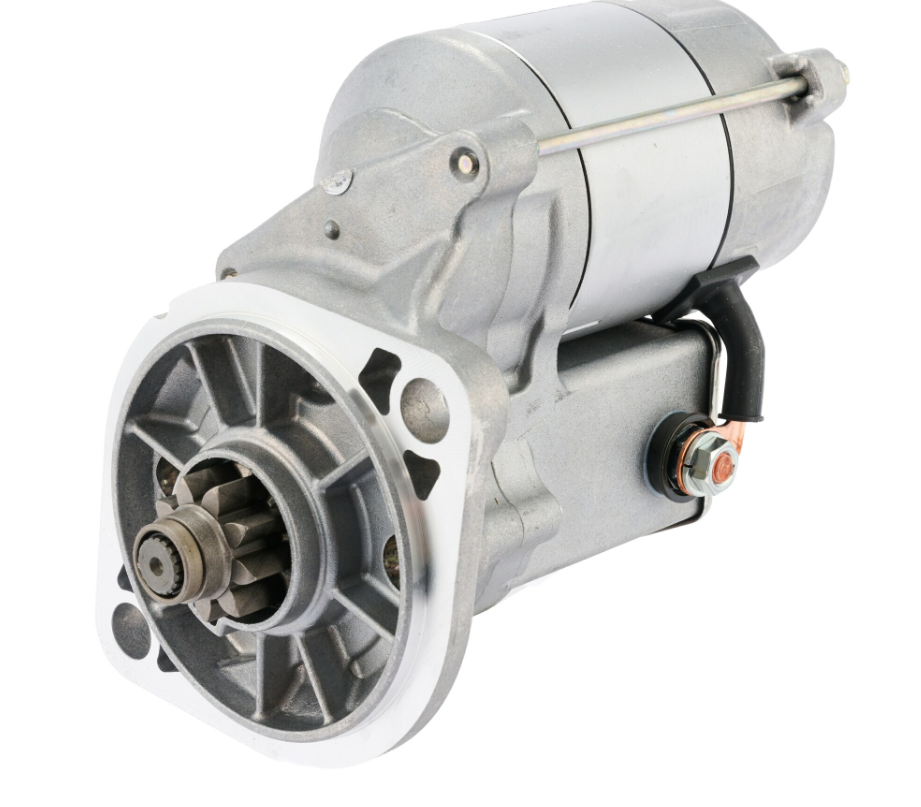

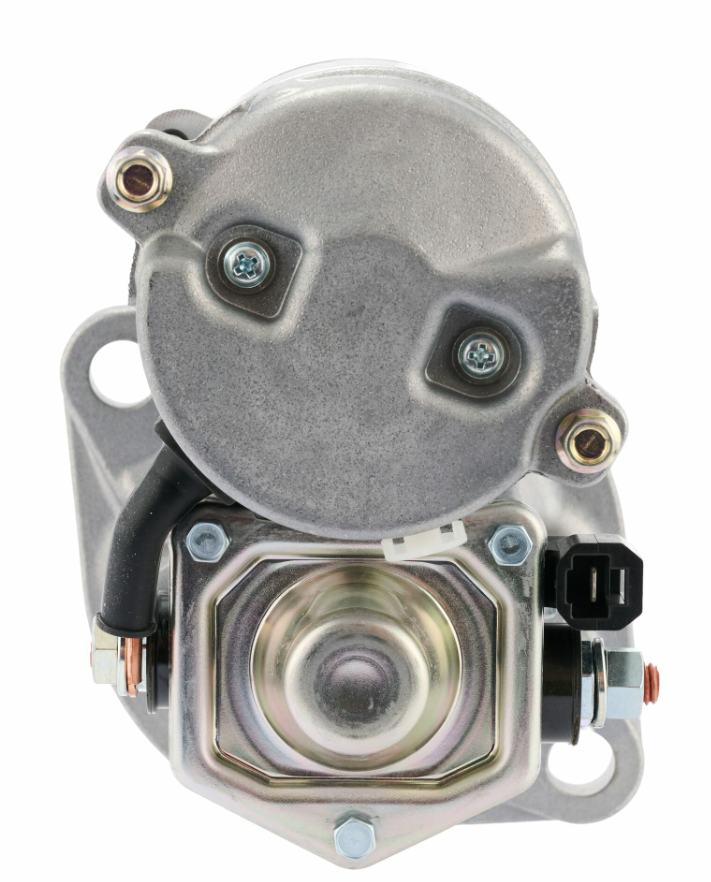

The Denso Starter Motor is a 12V, 1.4kW starter with a 9-tooth pinion, supplied with clockwise rotation. It is a direct fit replacement using original manufacturer specifications, suiting equipment powered by the Isuzu 3AB1 and 3LD1 engines, used across a wide range of AGCO, Airman, Challenger, IHI, John Deere, Komatsu, Iseki, and TCM machinery.
Cross-referencing an extensive range of Denso, Isuzu, and Iseki OE part numbers, this starter is engineered to original fitment standards for reliable starting performance.
Fitment
| Brand | Series / Type |
|---|---|
| Isuzu | 3AB1 engine (1985-2001), 3LD1 engine (1992-2005) |
| AGCO | ST28A, ST30, ST30X, ST32, ST33A, ST34A, ST35, ST35H, ST35X, ST40, ST40H, ST40X, ST41A |
| Airman | AX29UCGL, AX32UCGL, AX36UCGL |
| Challenger | MT225B, MT255, MT255B, MT265, MT265B, MT275, MT275B, MT285, MT285H |
| IHI | 35J |
| John Deere | 27ZTS, 35ZTS |
| Komatsu | FD9, FD10, FD14, FD15, FD18, FD20L-10, FD25L-10 |
| TCM | FD9Z, FD10Z, FD14Z, FD15Z, FD18Z, FD20Z, FD23Z, FD25Z |
Key Features
- 12V, 1.4kW starter motor
- 9-tooth pinion
- Clockwise rotation
- Fits equipment using the Isuzu 3AB1 and 3LD1 engines
- Fits a broad range of AGCO, Challenger, John Deere, Komatsu, and TCM forklifts and compact plant
- Cross-references an extensive range of OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 128000-1100 | Denso |
| 128000-1101 | Denso |
| 128000-1102 | Denso |
| 128000-1110 | Denso |
| 128000-1111 | Denso |
| 228000-1120 | Denso |
| 228000-1121 | Denso |
| 228000-1122 | Denso |
| 228000-1130 | Denso |
| 228000-1131 | Denso |
| 228000-1132 | Denso |
| 228000-1133 | Denso |
| 228000-1980 | Denso |
| 228000-1981 | Denso |
| 228000-1982 | Denso |
| 228000-1983 | Denso |
| 228000-1984 | Denso |
| 228000-1985 | Denso |
| 228000-1986 | Denso |
| 228000-2000 | Denso |
| 228000-2001 | Denso |
| 228000-2002 | Denso |
| 228000-2003 | Denso |
| 228000-2280 | Denso |
| 228000-2281 | Denso |
| 228000-2282 | Denso |
| 228000-2283 | Denso |
| 228000-2284 | Denso |
| 228000-2285 | Denso |
| 228000-2286 | Denso |
| 228000-3920 | Denso |
| 228000-3921 | Denso |
| 228080-2003 | Denso |
| 6281-100-002-1 | Iseki |
| 6281-100-002-2 | Iseki |
| 6281-100-002-3 | Iseki |
| 6281-100-007-0 | Iseki |
| 6281-100-009-1 | Iseki |
| 8-94170205-0 | Isuzu |
| 8-97048965-0 | Isuzu |
| 8-97048966-0 | Isuzu |
| 8-97048967-0 | Isuzu |

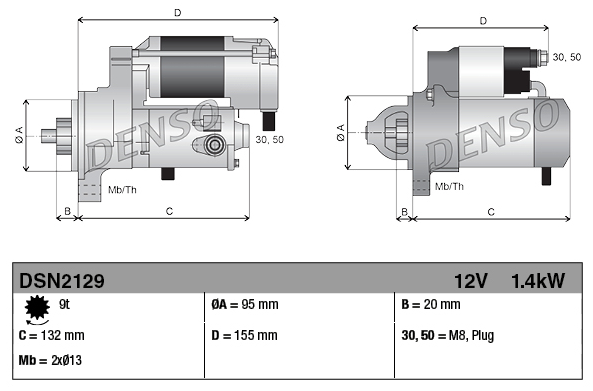

Specifications
| Specification | Detail |
|---|---|
| Type | Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 1.4 kW |
| No. of pinion teeth | 9 |
| Holes / PCD | 2 x 13mm |
| Spacing flange to flywheel | 20 mm |
| Installation length | 155 mm |
| Fitting diameter | 95 mm |
| Direction of rotation | Clockwise |
| Part number | 3780010328 |
| Reference number | DSN2129 |
| Weight | 4.11 kg |
| EAN | 8717613116821 |
| Condition | New |
