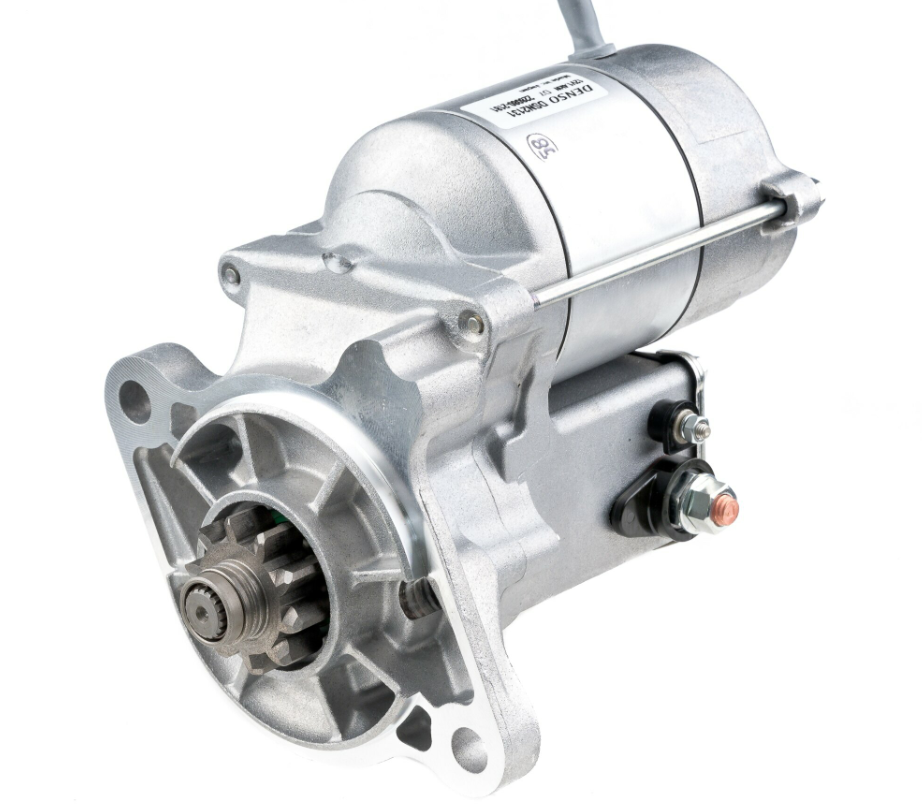

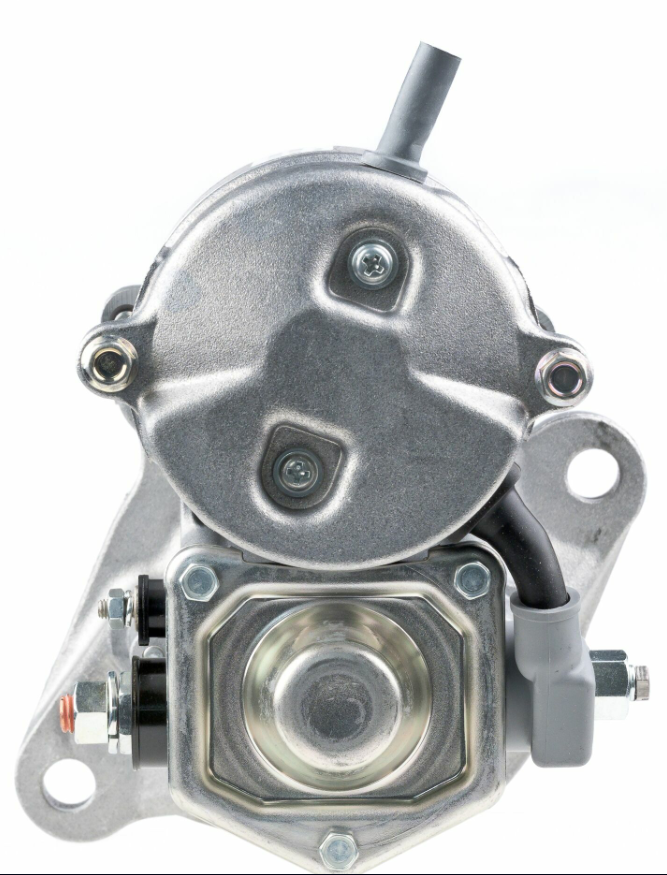

The Denso Starter Motor is a 12V, 1.4kW starter with a 10-tooth pinion, supplied with clockwise rotation. It is a direct fit replacement using original manufacturer specifications, suiting the Case IH 1835C skid steer loader, as well as equipment using the Clark/Teledyne TM20 and TM27 engines.
Cross-referencing Denso and Case IH OE part numbers, this starter is engineered to original fitment standards for reliable starting performance.
Fitment
| Brand | Series / Type |
|---|---|
| Case IH | 1835C (1987-1998) |
| Clark | TM27 (1986) |
| Teledyne | TM20, TM27 engine (1987) |
Key Features
- 12V, 1.4kW starter motor
- 10-tooth pinion
- Clockwise rotation
- Fits Case IH 1835C skid steer loader
- Fits equipment using Clark/Teledyne TM20 and TM27 engines
- Cross-references five OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 128000-5590 | Denso |
| 128000-6350 | Denso |
| 228000-2180 | Denso |
| 228000-2181 | Denso |
| 228080-2181 | Denso |
| 235907A1 | Case IH |

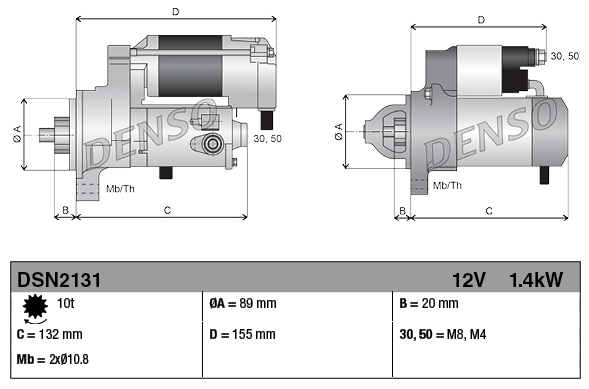

Specifications
| Specification | Detail |
|---|---|
| Type | Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 1.4 kW |
| No. of pinion teeth | 10 |
| Holes / PCD | 2 x 10.8mm |
| Spacing flange to flywheel | 20 mm |
| Installation length | 155 mm |
| Fitting diameter | 89 mm |
| Direction of rotation | Clockwise |
| Part number | 3780010329 |
| Reference number | DSN2131 |
| Weight | 4.23 kg |
| EAN | 8717613116845 |
| Condition | New |
