Denso Starter Motor 12V 1.4kW - Bobcat 320, 322
Regular price
£0.00
Unit price
Shipping calculated at checkout.
Denso Starter Motor 12V 1.4kW - Bobcat 320, 322 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping info
Delivery and Shipping info
- Standard delivery (2-4 working days) - £4.99 on eligible UK mainland orders under £50.
- Express delivery - £6.99 on eligible UK mainland orders placed before 2pm.
- Large equipment including international orders are subject to different delivery rates and timescales.
Returns
Returns
Start Your Return Online (Recommended)
- Log In: Sign into your account on our website.
- Select Order: Navigate to your order history and select the item you wish to return.
- Initiate Return: Follow the simple prompts to start your return.

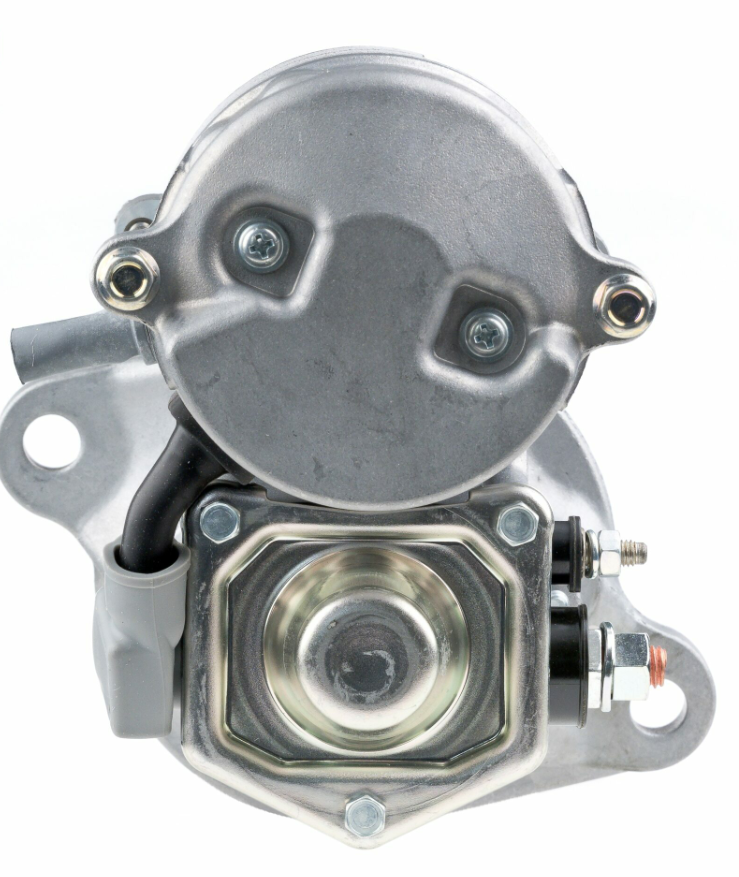

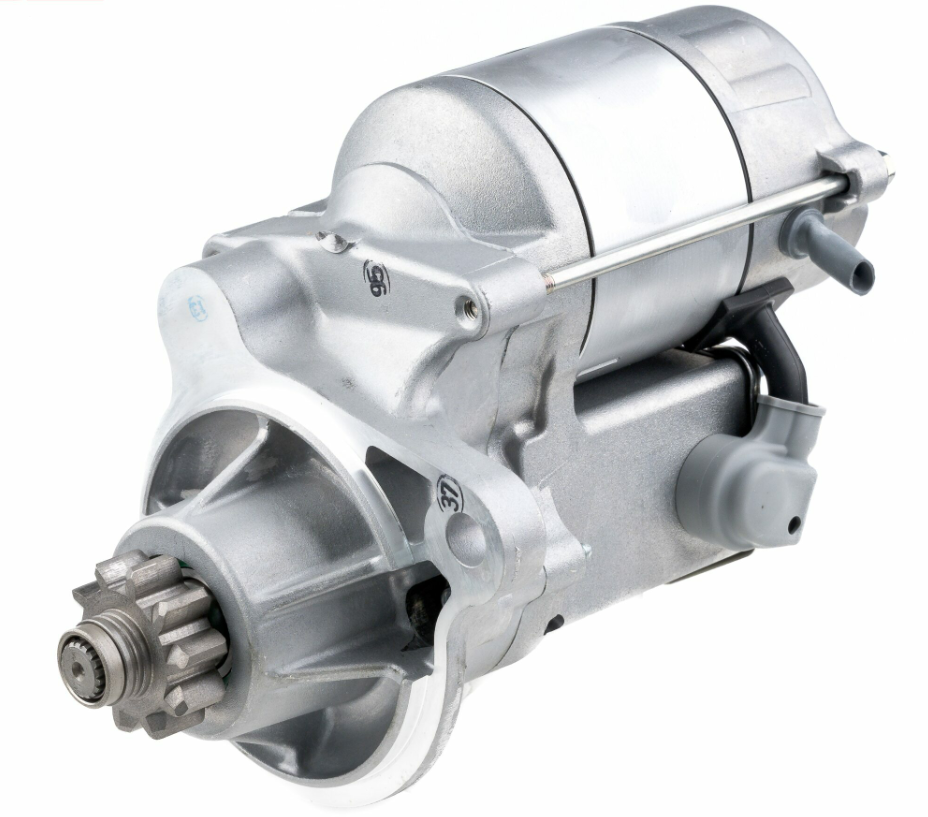

The Denso Starter Motor is a 12V, 1.4kW starter with a 10-tooth pinion, supplied with clockwise rotation. It is a direct fit replacement using original manufacturer specifications, suiting the Bobcat 320 and 322 mini excavators.
Cross-referencing Denso and Bobcat OE part numbers, this starter is engineered to original fitment standards for reliable starting performance.
Fitment
| Brand | Series / Type |
|---|---|
| Bobcat | 320 (1993), 322 (2000-2006) |
Key Features
- 12V, 1.4kW starter motor
- 10-tooth pinion
- Clockwise rotation
- Fits Bobcat 320 and 322 mini excavators
- Cross-references four OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 228000-6650 | Denso |
| 228000-6651 | Denso |
| 228000-6652 | Denso |
| 228080-6652 | Denso |
| 6669633 | Bobcat |

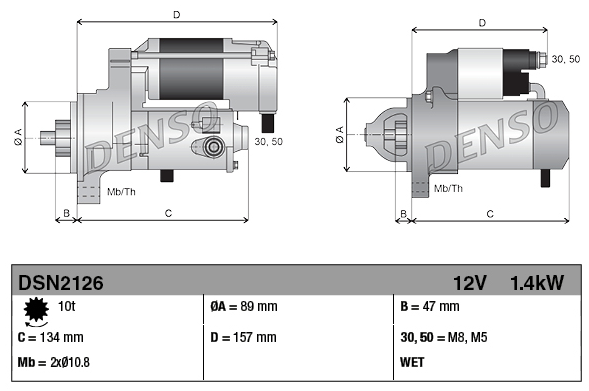

Specifications
| Specification | Detail |
|---|---|
| Type | Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 1.4 kW |
| No. of pinion teeth | 10 |
| Holes / PCD | 2 x 10.8mm |
| Spacing flange to flywheel | 47 mm |
| Installation length | 157 mm |
| Fitting diameter | 89 mm |
| Direction of rotation | Clockwise |
| Part number | 3780010325 |
| Reference number | DSN2126 |
| Weight | 4.27 kg |
| EAN | 8717613116791 |
| Condition | New |
