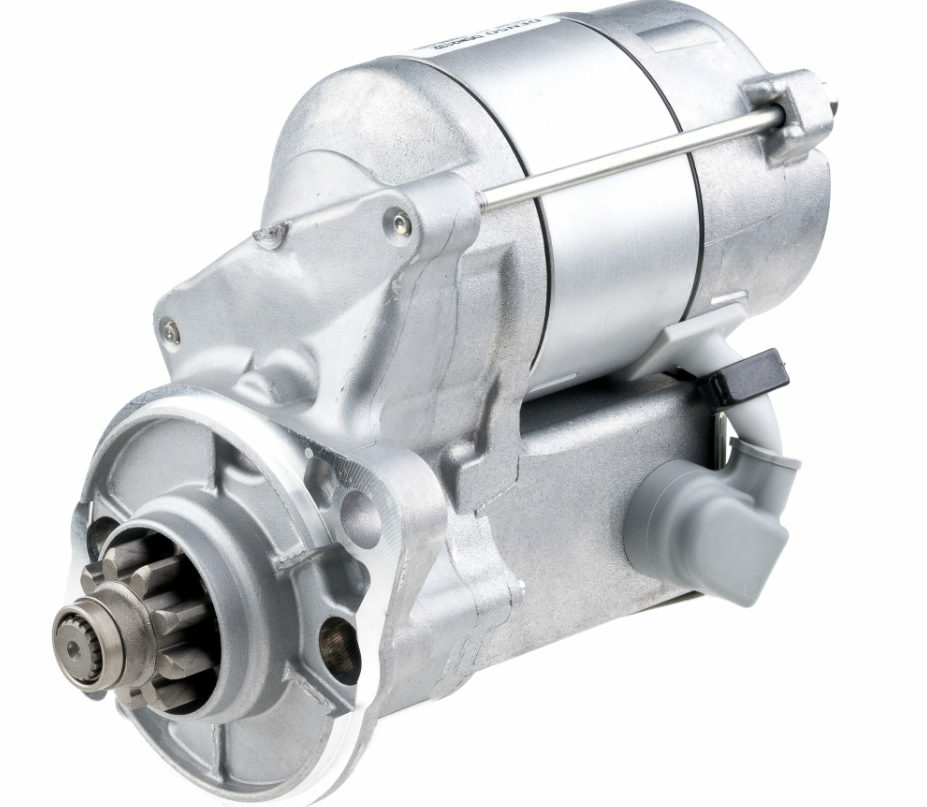

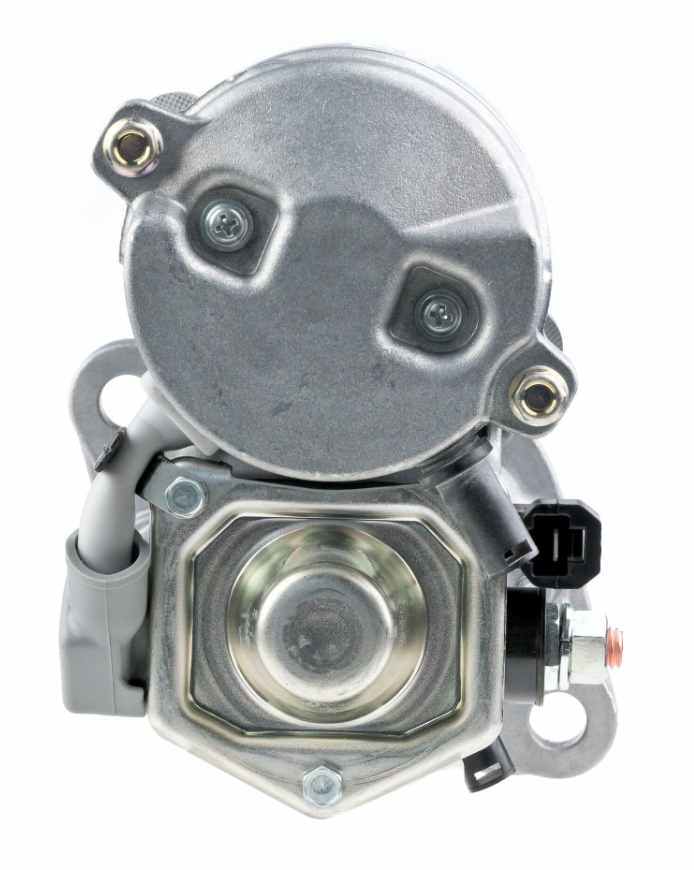

The Denso Starter Motor is a 12V, 1.2kW starter with a 9-tooth pinion, supplied with clockwise rotation. It is a direct fit replacement using original manufacturer specifications, suiting an extensive range of Kubota L-series compact tractors.
Cross-referencing Denso and Kubota OE part numbers, this starter is engineered to original fitment standards for reliable starting performance.
Fitment
| Brand | Series / Type |
|---|---|
| Kubota | L2250, L2500, L2550, L2650, L2800, L2900, L2950, L3010, L3130, L3240, L3300, L3400, L3410, L3430 |
Key Features
- 12V, 1.2kW starter motor
- 9-tooth pinion
- Clockwise rotation
- Fits an extensive range of Kubota L-series compact tractors
- Cross-references seven OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 128000-8460 | Denso |
| 128000-8461 | Denso |
| 128000-8462 | Denso |
| 128080-8462 | Denso |
| 34070-16800 | Kubota |
| 34070-16801 | Kubota |
| 34070-16802 | Kubota |
| 34070-16803 | Kubota |

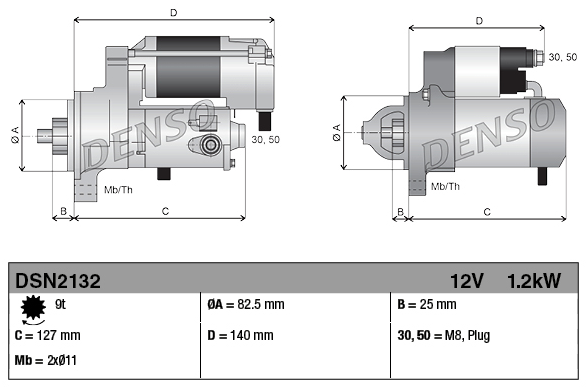

Specifications
| Specification | Detail |
|---|---|
| Type | Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 1.2 kW |
| No. of pinion teeth | 9 |
| Holes / PCD | 2 x 11mm |
| Spacing flange to flywheel | 25 mm |
| Installation length | 140 mm |
| Fitting diameter | 82.5 mm |
| Direction of rotation | Clockwise |
| Part number | 3780010330 |
| Reference number | DSN2132 |
| Weight | 3.79 kg |
| EAN | 8717613116852 |
| Condition | New |
