Denso Starter Motor 12V 0.7kW - Kawasaki 21163-1211
Denso Starter Motor 12V 0.7kW - Kawasaki 21163-1211 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping info
Delivery and Shipping info
- Standard delivery (2-4 working days) - £4.99 on eligible UK mainland orders under £50.
- Express delivery - £6.99 on eligible UK mainland orders placed before 2pm.
- Large equipment including international orders are subject to different delivery rates and timescales.
Returns
Returns
Start Your Return Online (Recommended)
- Log In: Sign into your account on our website.
- Select Order: Navigate to your order history and select the item you wish to return.
- Initiate Return: Follow the simple prompts to start your return.

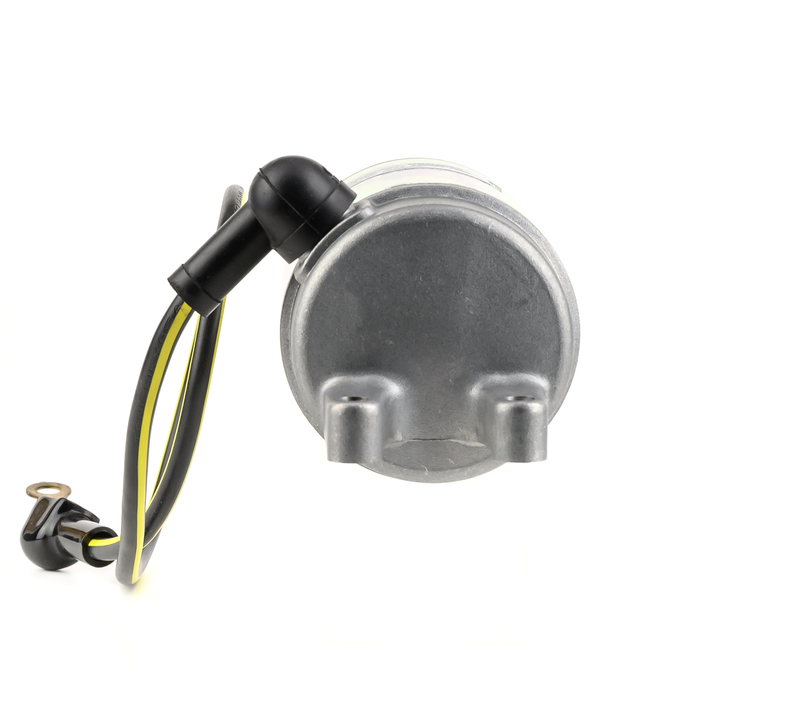

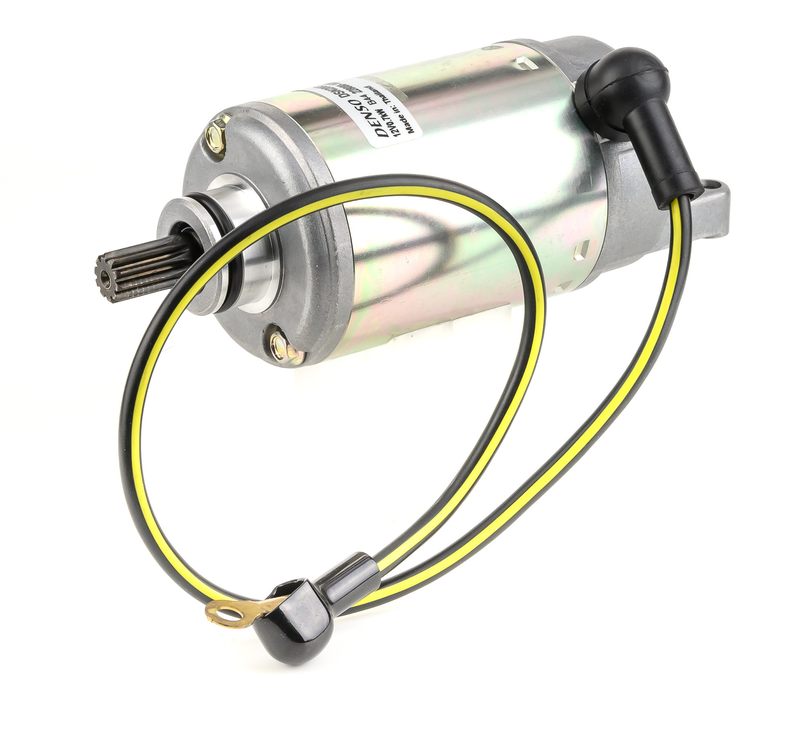

Denso starter motor with a nominal voltage of 12V and nominal power of 0.7kW. It has a 10-tooth pinion and rotates anti-clockwise. This is a direct drive (DD) type unit.

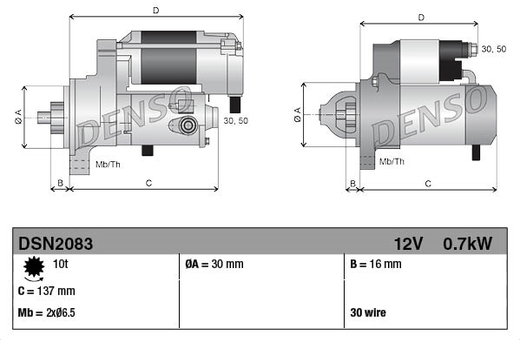

The unit has an installation length of 137.0mm, a fitting diameter of 30.0mm, and a spacing of 16.0mm from flange to flywheel. It is fitted using 2 x 6.5mm holes. This part carries the reference number DSN2083 and has a confirmed cross-reference to a Kawasaki application.
Fitment
| Brand | Series/Type |
|---|---|
| Kawasaki | Not specified (see OE cross-reference) |
Key Features
- Nominal voltage 12V, nominal power 0.7kW
- 10-tooth pinion, direct drive (DD) type
- Anti-clockwise rotation
- Confirmed fitment: Kawasaki (specific model not supplied)
- 3 OE cross-reference numbers (Kawasaki and Denso)
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2083 | Reference number |
| 228000-1820 | Denso |
| 228080-1820 | Denso |
| 21163-1211 | Kawasaki |
Specifications
| Specification | Detail |
|---|---|
| Type | Direct Drive (DD) |
| Nominal voltage | 12V |
| Nominal power | 0.7kW |
| No. of pinion teeth | 10 |
| Holes/PCD | 2 x 6.5mm |
| Spacing flange to flywheel | 16.0mm |
| Installation length | 137.0mm |
| Fitting diameter | 30.0mm |
| Direction of rotation | Anti-clockwise |
| Part number | 3780010163 |
| Reference number | DSN2083 |
| Weight | 1.96 kg |
| EAN | 8717613114292 |
| Condition | New |
