Denso Starter Motor 12V 0.6kW - Yanmar 3TNV Engine
Regular price
£0.00
Unit price
Shipping calculated at checkout.
Denso Starter Motor 12V 0.6kW - Yanmar 3TNV Engine is backordered and will ship as soon as it is back in stock.
Delivery and Shipping info
Delivery and Shipping info
- Standard delivery (2-4 working days) - £4.99 on eligible UK mainland orders under £50.
- Express delivery - £6.99 on eligible UK mainland orders placed before 2pm.
- Large equipment including international orders are subject to different delivery rates and timescales.
Returns
Returns
Start Your Return Online (Recommended)
- Log In: Sign into your account on our website.
- Select Order: Navigate to your order history and select the item you wish to return.
- Initiate Return: Follow the simple prompts to start your return.

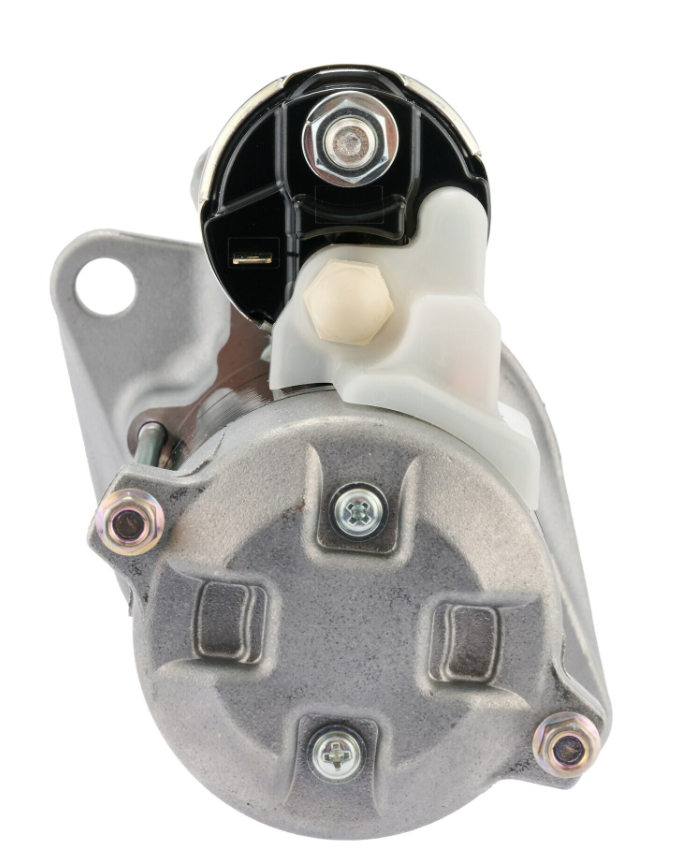

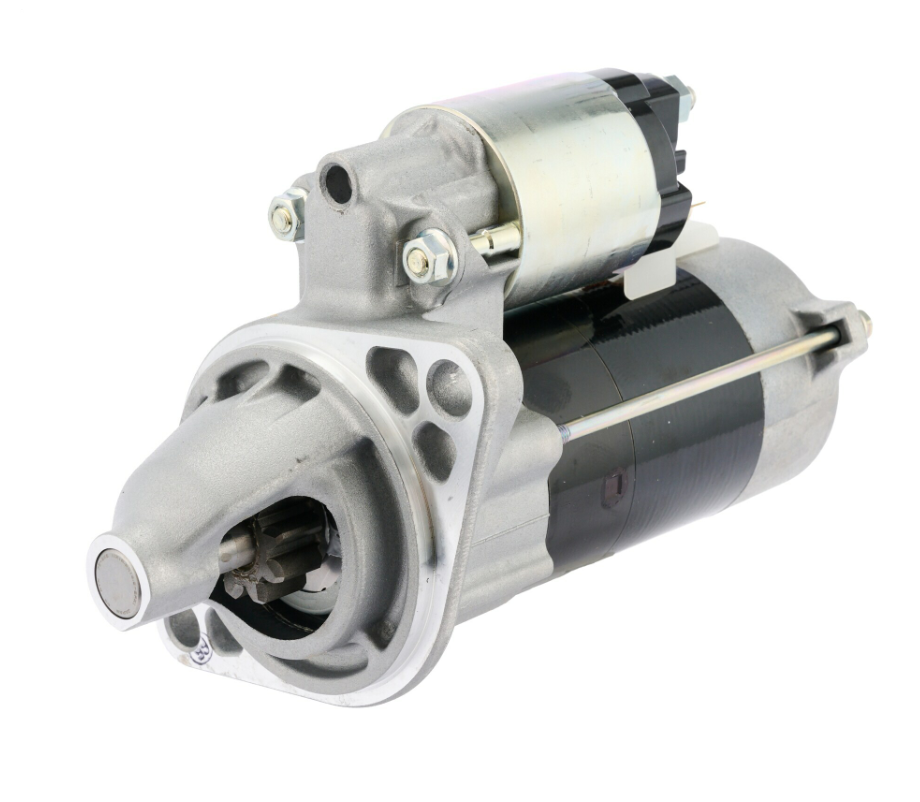

The Denso Starter Motor is a 12V, 0.6kW starter with a 9-tooth pinion, supplied with anti-clockwise rotation. It is a direct fit replacement using original manufacturer specifications, suiting equipment powered by the Yanmar 3TNV engine.
Cross-referencing Denso and Yanmar OE part numbers, this starter is engineered to original fitment standards for reliable starting performance.
Fitment
| Brand | Series / Type |
|---|---|
| Yanmar | 3TNV engine (2002) |
Key Features
- 12V, 0.6kW starter motor
- 9-tooth pinion
- Anti-clockwise rotation
- Fits equipment using the Yanmar 3TNV engine
- Cross-references six OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 428000-1590 | Denso |
| 428000-1591 | Denso |
| 428000-2190 | Denso |
| 428000-2191 | Denso |
| 428080-1591 | Denso |
| 119515-77010 | Yanmar |
| 119717-77010 | Yanmar |
Specifications
| Specification | Detail |
|---|---|
| Type | Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 0.6 kW |
| No. of pinion teeth | 9 |
| Holes / PCD | 2 x 9mm |
| Spacing flange to flywheel | 17.5 mm |
| Installation length | 120 mm |
| Fitting diameter | 66 mm |
| Direction of rotation | Anti-clockwise |
| Part number | 3780010337 |
| Weight | 3.30 kg |
| Condition | New |
