Denso Starter Motor 12V 0.6kW - Bombardier
Denso Starter Motor 12V 0.6kW - Bombardier is backordered and will ship as soon as it is back in stock.
Delivery and Shipping info
Delivery and Shipping info
- Standard delivery (2-4 working days) - £4.99 on eligible UK mainland orders under £50.
- Express delivery - £6.99 on eligible UK mainland orders placed before 2pm.
- Large equipment including international orders are subject to different delivery rates and timescales.
Returns
Returns
Start Your Return Online (Recommended)
- Log In: Sign into your account on our website.
- Select Order: Navigate to your order history and select the item you wish to return.
- Initiate Return: Follow the simple prompts to start your return.

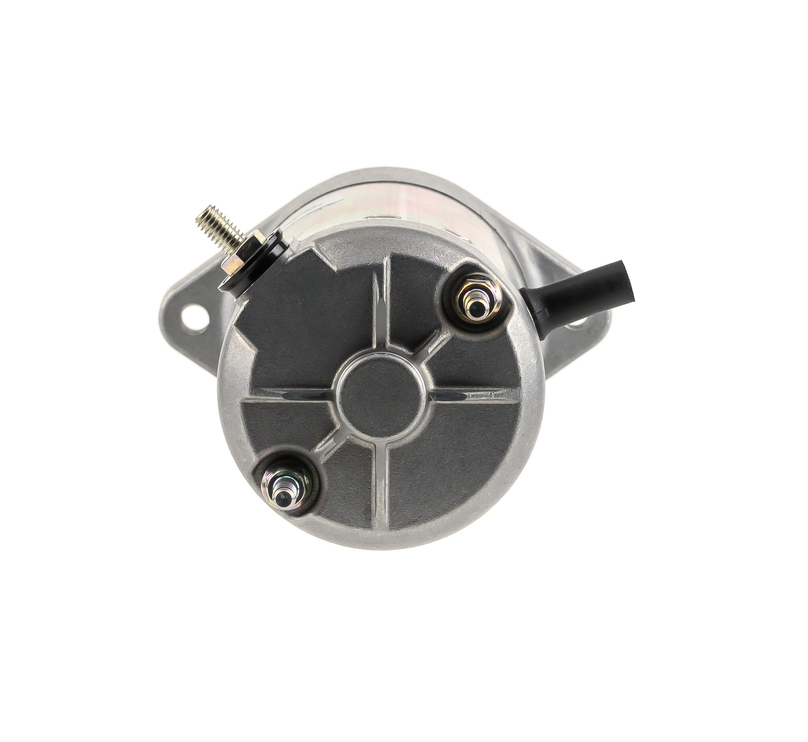

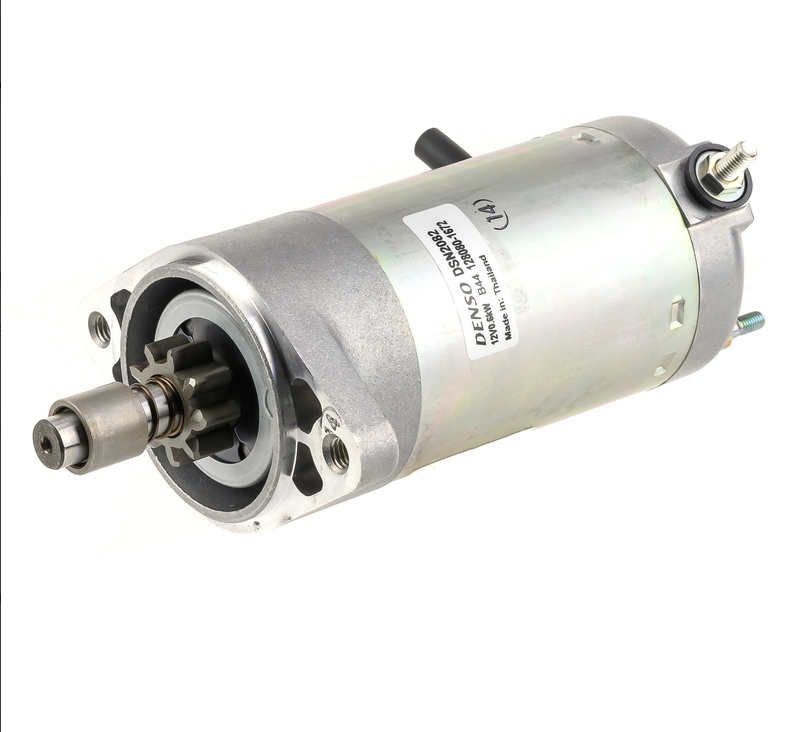

Denso starter motor with a nominal voltage of 12V and nominal power of 0.6kW. It has a 9-tooth pinion and rotates clockwise. This is a direct drive (DD) type unit. Connection is made via terminal 30 (M6).

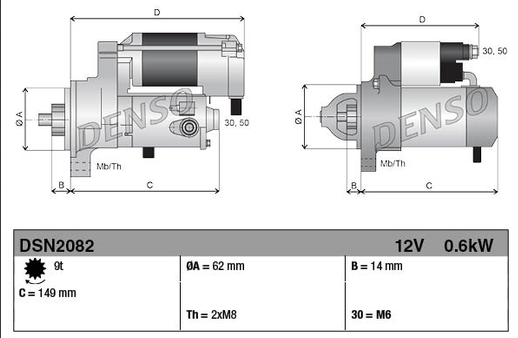

The unit has an installation length of 149.0mm, a fitting diameter of 62.0mm, and a spacing of 14.0mm from flange to flywheel. It is fitted using 2 x M8 holes. This part carries the reference number DSN2082 and has confirmed cross-references to Bombardier applications.
Fitment
| Brand | Series/Type |
|---|---|
| Bombardier | Not specified (see OE cross-reference) |
Key Features
- Nominal voltage 12V, nominal power 0.6kW
- 9-tooth pinion, direct drive (DD) type
- Clockwise rotation
- Terminal 30 (M6) connection
- Confirmed fitment: Bombardier (specific model not supplied)
- 5 OE cross-reference numbers (Bombardier and Denso)
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2082 | Reference number |
| 128000-1670 | Denso |
| 128000-1671 | Denso |
| 128080-1672 | Denso |
| 995 430 | Bombardier |
| 995 431 | Bombardier |
Specifications
| Specification | Detail |
|---|---|
| Type | Direct Drive (DD) |
| Nominal voltage | 12V |
| Nominal power | 0.6kW |
| No. of pinion teeth | 9 |
| Holes/PCD | 2 x M8 |
| Spacing flange to flywheel | 14.0mm |
| Installation length | 149.0mm |
| Fitting diameter | 62.0mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M6) |
| Part number | 3780010162 |
| Reference number | DSN2082 |
| Weight | 2.44 kg |
| EAN | 8717613113707 |
| Condition | New |
