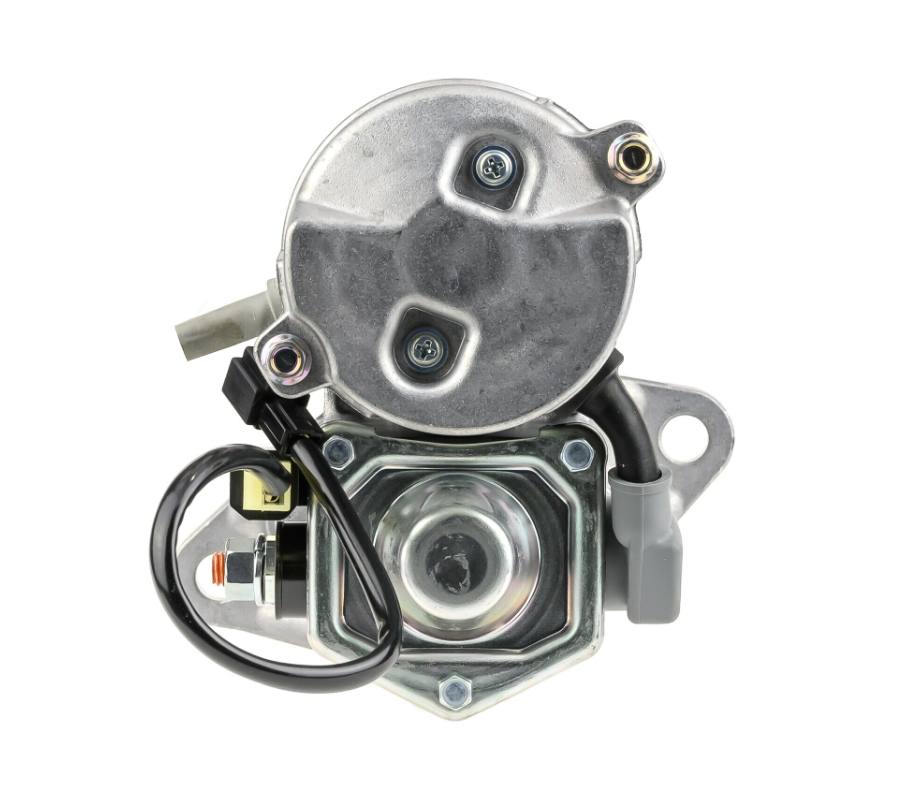

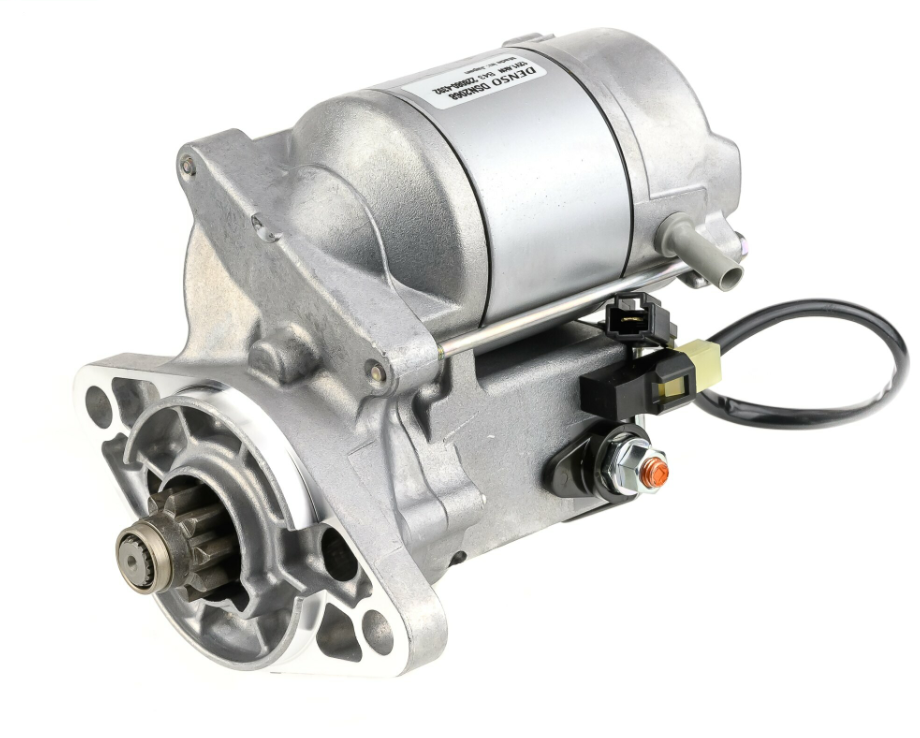

The Denso Gearbox Starter Motor is a 12V, 1.4kW starter with a 9-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M8) and terminal 50 (plug), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing an extensive range of Denso, Toyota, and Combilift OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting a diverse range of Toyota and Combilift forklift applications.
Fitment
| Brand | Series / Type |
|---|---|
| Toyota | Diverse (various applications) |
| Combilift | Diverse (various applications) |
Key Features
- 12V, 1.4kW gearbox starter motor
- 9-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M8) and terminal 50 (plug)
- Fits a diverse range of Toyota and Combilift applications
- Cross-references an extensive range of OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2068 | Denso |
| 128000-0620 | |
| 128000-0621 | |
| 128000-0622 | |
| 128000-0623 | |
| 228000-4390 | |
| 228000-4391 | |
| 228000-4392 | |
| 228080-4392 | |
| 28100-20552-71 | Toyota |
| 28100-20553-71 | Toyota |
| BPT00004 | Combilift |
| 1003236096 | Combilift |

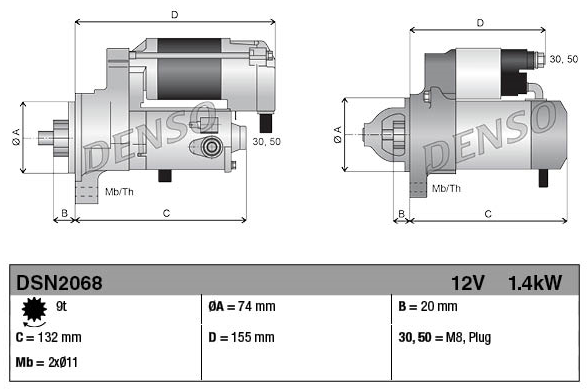

Specifications
| Specification | Detail |
|---|---|
| Type | Gearbox Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 1.4 kW |
| No. of pinion teeth | 9 |
| Holes / PCD | 2 x 11.0mm / - |
| Spacing flange to flywheel | 20.0 mm |
| Installation length | 155.0 mm |
| Fitting diameter | 74.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M8), Terminal 50 (plug) |
| Part number | 3780010150 |
| Weight | 4.04 kg |
| Condition | New |
