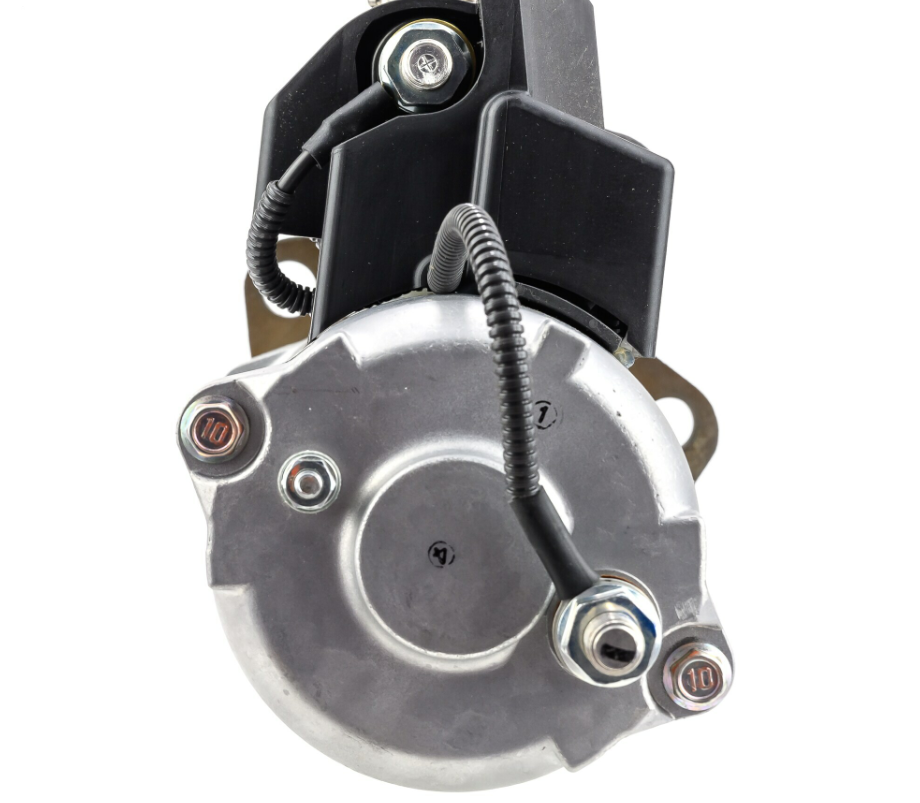

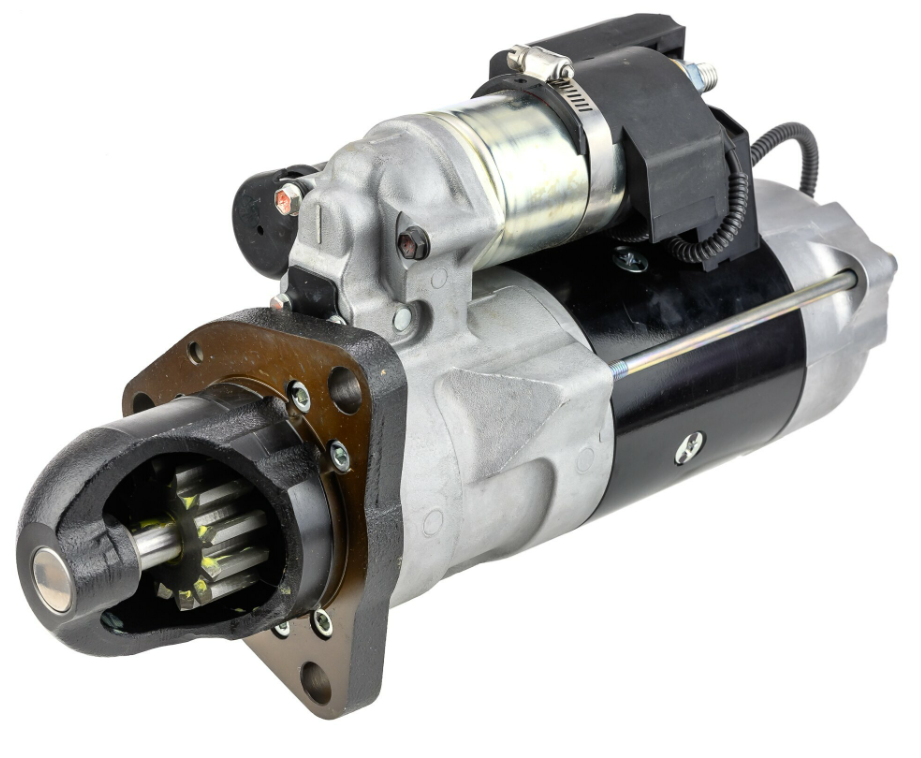

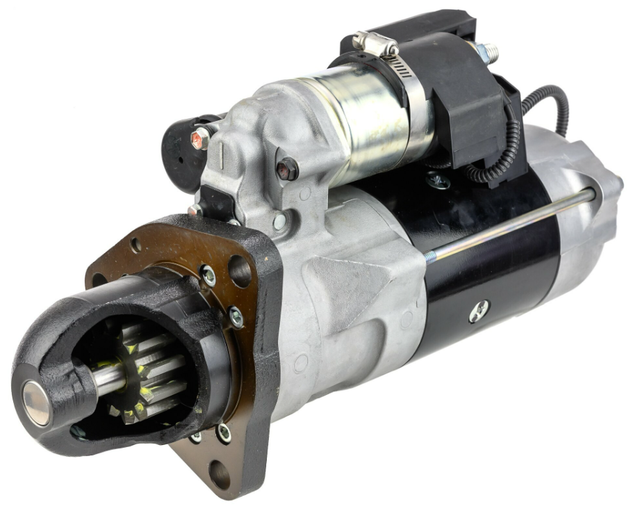

The Denso Gear Reduction Starter Motor is a 24V, 8.0kW starter with a 12-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M14) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing multiple Denso and Caterpillar OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance.
Fitment
| Brand | Series / Type |
|---|---|
| Caterpillar | Not specified |
Key Features
- 24V, 8.0kW gear reduction starter motor
- 12-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M14) and terminal 50 (M5)
- Cross-references six OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 268-9416 | Caterpillar |
| 415-1804 | Caterpillar |
| 428000-3610 | Denso |
| 428000-3611 | Denso |
| 428000-3612 | Denso |
| 428080-3612 | Denso |

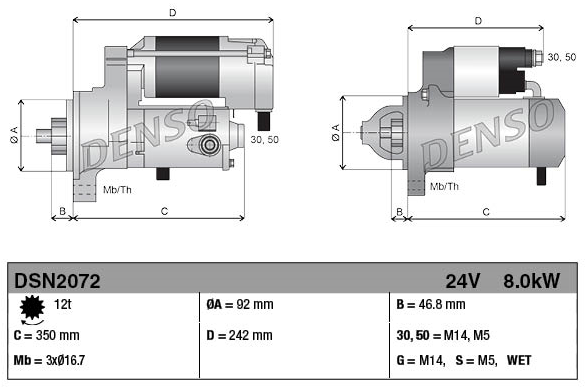

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 24 V |
| Nominal power | 8.0 kW |
| No. of pinion teeth | 12 |
| Holes / PCD | 3 x 16.7mm / - |
| Spacing flange to flywheel | 46.8 mm |
| Installation length | 242.0 mm |
| Fitting diameter | 92.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M14), Terminal 50 (M5) |
| Part number | 3780010154 |
| Reference number | DSN2072 |
| Weight | 10.87 kg |
| EAN | 8717613113868 |
| Condition | New |
