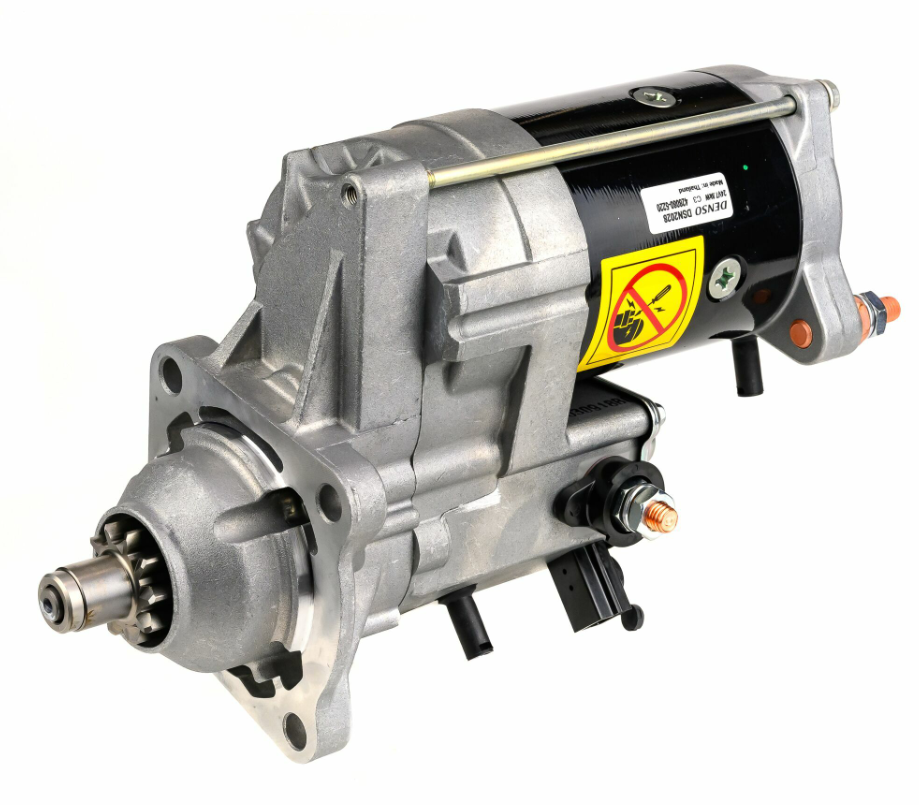

The Denso Gear Reduction Starter Motor is a 24V, 7.8kW starter with a 10-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M10) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing Denso, Hitachi, and Cummins OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting the Hitachi ZW180 wheel loader, as well as equipment powered by the Caterpillar C6.6 engine.
Fitment
| Brand | Series / Type |
|---|---|
| Hitachi | ZW, ZW180 |
| Caterpillar | C6.6 engine |
Key Features
- 24V, 7.8kW gear reduction starter motor
- 10-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M10) and terminal 50 (M5)
- Fits Hitachi ZW180 wheel loader
- Fits equipment using the Caterpillar C6.6 engine
- Cross-references three OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2028 | Reference number |
| 428000-5220 | Denso |
| 428080-5220 | Denso |
| K4934036 | Hitachi |
| 4934036 | Cummins |

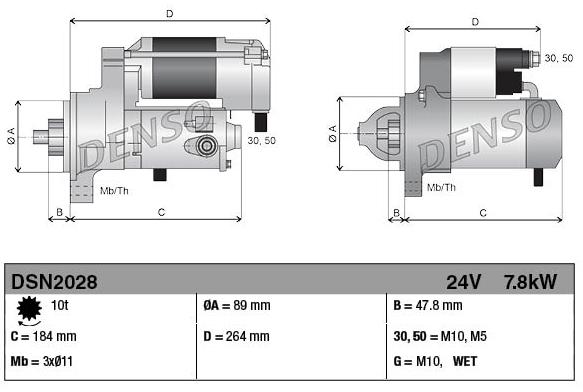

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 24 V |
| Nominal power | 7.8 kW |
| No. of pinion teeth | 10 |
| Holes / PCD | 3 x 11.0mm / - |
| Spacing flange to flywheel | 47.8 mm |
| Installation length | 264.0 mm |
| Fitting diameter | 89.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M10), Terminal 50 (M5) |
| Part number | 3780010121 |
| Weight | 10.85 kg |
| Condition | New |
