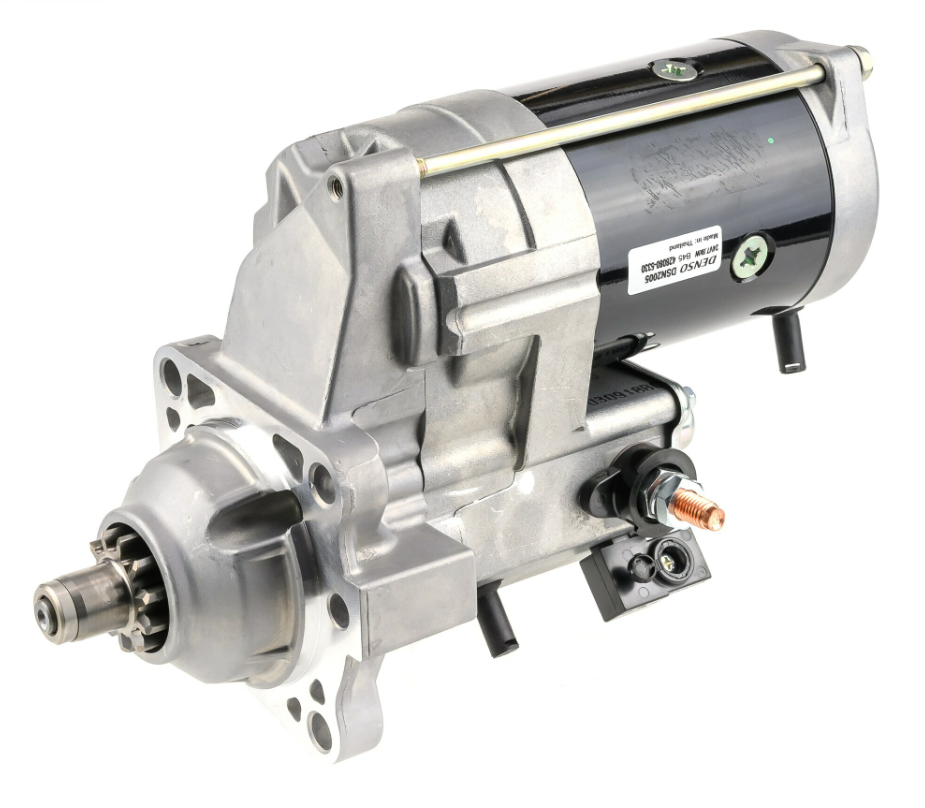

The Denso Gear Reduction Starter Motor is a 24V, 7.8kW starter with an 11-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M10) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing Denso and Caterpillar OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting the Caterpillar 924H, 924HZ, 928H, 928HZ, 930H, and IT28G wheel loader range.
Fitment
| Brand | Series / Type |
|---|---|
| Caterpillar | 924H (2007), 924HZ (2007) |
| Caterpillar | 928H (2008-2015), 928HZ (2008-2015) |
| Caterpillar | 930H (2008-2014) |
| Caterpillar | IT28G |
Key Features
- 24V, 7.8kW gear reduction starter motor
- 11-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M10) and terminal 50 (M5)
- Fits Caterpillar 924H, 924HZ, 928H, 928HZ, 930H, and IT28G wheel loaders
- Cross-references three OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 428000-5330 |
Denso |
| 428080-5330 | Denso |
| 300-6868 | Caterpillar |

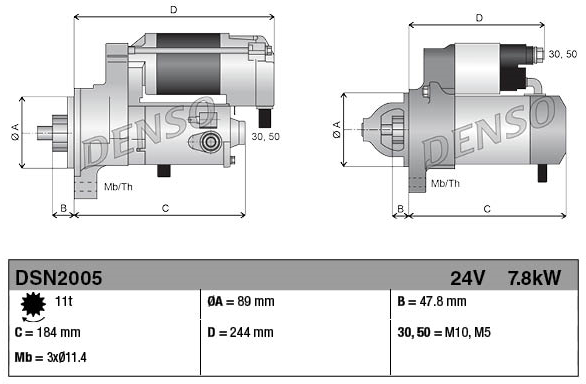

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 24 V |
| Nominal power | 7.8 kW |
| No. of pinion teeth | 11 |
| Holes / PCD | 3 x 11.4mm / - |
| Spacing flange to flywheel | 47.8 mm |
| Installation length | 244.0 mm |
| Fitting diameter | 89.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M10), Terminal 50 (M5) |
| Part number | 3780010098 |
| Reference number | DSN2005 |
| Weight | 11.01 kg |
| EAN | 8717613113752 |
| Condition | New |
