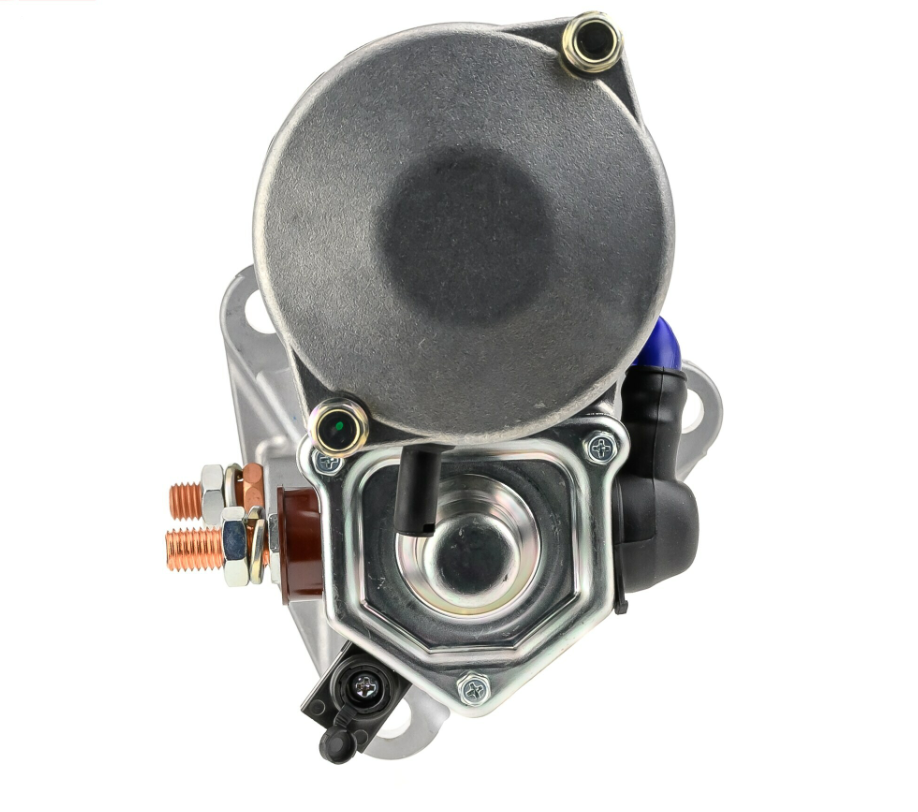

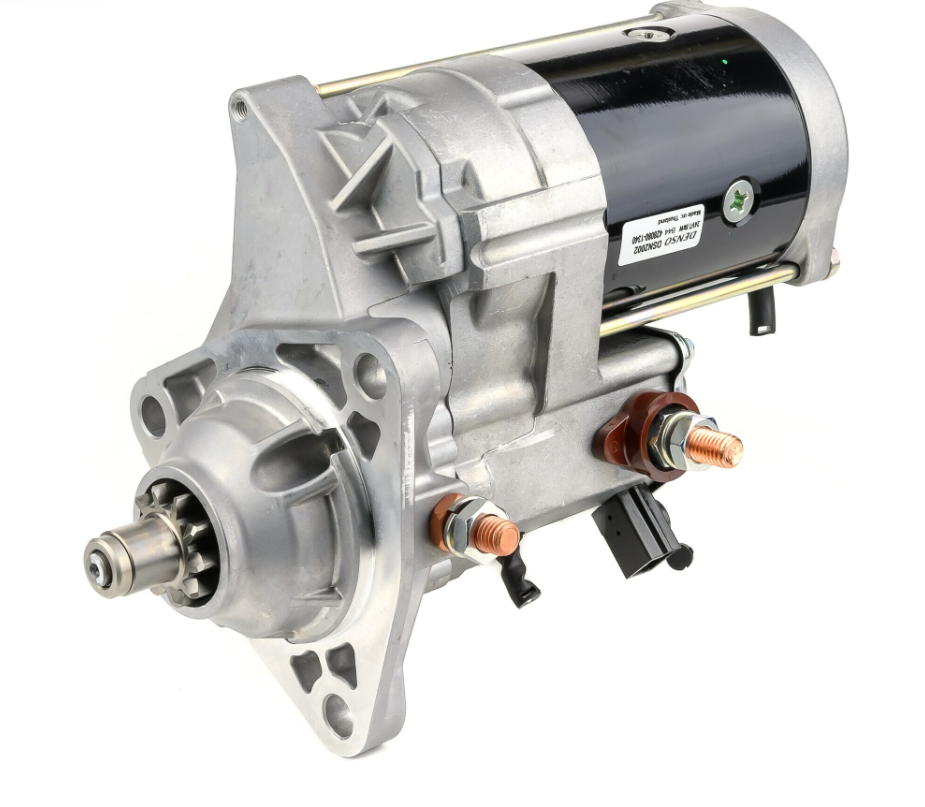

The Denso Gear Reduction Starter Motor is a 24V, 7.8kW starter with a 10-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M12) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing an extensive range of Denso and Cummins OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance.
Fitment
| Brand | Series / Type |
|---|---|
| Cummins | Not specified |
Key Features
- 24V, 7.8kW gear reduction starter motor
- 10-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M12) and terminal 50 (M5)
- Cross-references eleven OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 128000-9820 | Denso |
| 128000-9821 | Denso |
| 228000-5630 | Denso |
| 228000-5631 | Denso |
| 228000-7380 | Denso |
| 228000-7381 | Denso |
| 428000-1340 | Denso |
| 428080-1340 | Denso |
| 3283814 | Cummins |
| 3920329 | Cummins |
| 3957597 | Cummins |
Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 24 V |
| Nominal power | 7.8 kW |
| No. of pinion teeth | 10 |

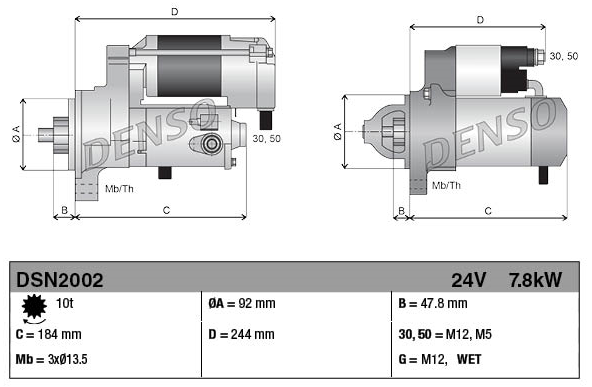

| Holes / PCD | 3 x 13.5mm / - |
| Spacing flange to flywheel | 47.8 mm |
| Installation length | 244.0 mm |
| Fitting diameter | 92.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M12), Terminal 50 (M5) |
| Part number | 3780010096 |
| Reference number | DSN2002 |
| Weight | 11.13 kg |
| EAN | 8717613113721 |
| Condition | New |
