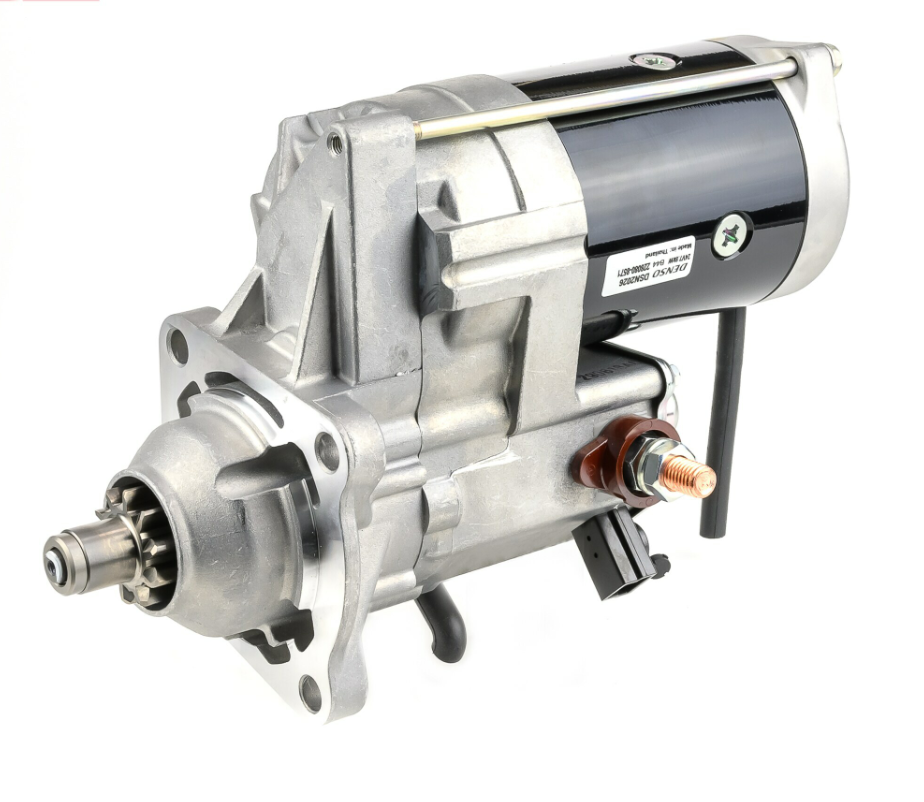

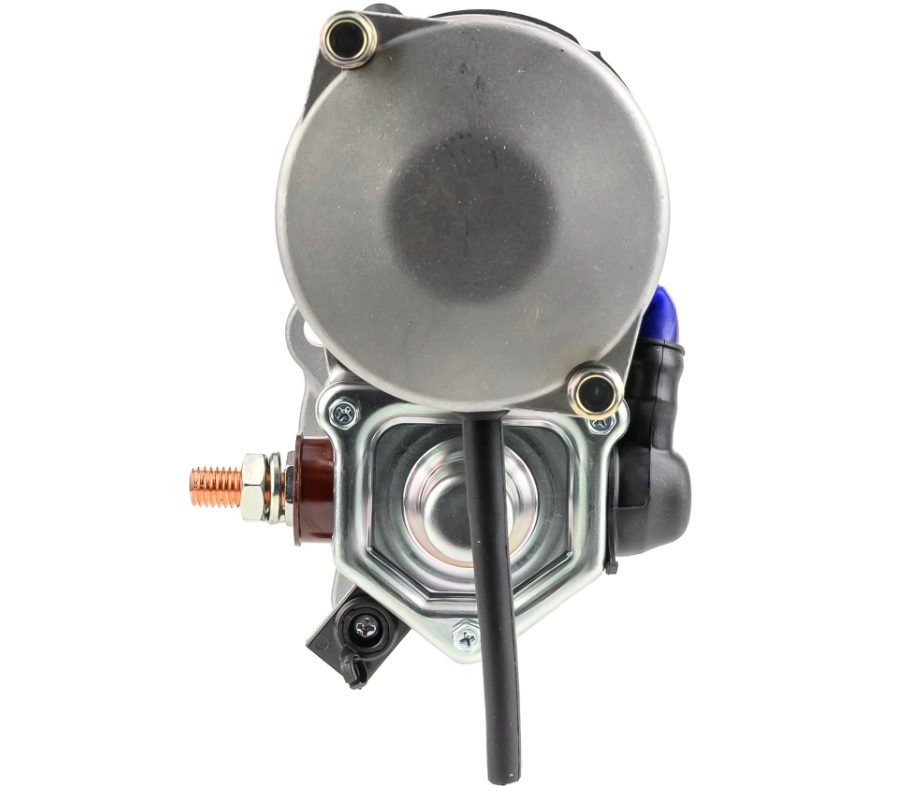

The Denso Gear Reduction Starter Motor is a 24V, 7.8kW starter with a 10-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M12) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing Denso, Caterpillar, and Case IH OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting the Caterpillar AP and BG series asphalt pavers alongside compatible Case IH applications.
Fitment
| Brand | Series / Type |
|---|---|
| Caterpillar | AP-500E, AP-555E, AP-600D, AP-655D |
| Caterpillar | BG500E, BG555E, BG600D, BG655D |
| Case IH | Not specified |
Key Features
- 24V, 7.8kW gear reduction starter motor
- 10-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M12) and terminal 50 (M5)
- Fits Caterpillar AP and BG series asphalt pavers
- Cross-references four OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 228000-8570 | Denso |
| 228000-8571 | Denso |
| 228080-8571 | Denso |
| 332443A1 | Case IH |
Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 24 V |
| Nominal power | 7.8 kW |
| No. of pinion teeth | 10 |

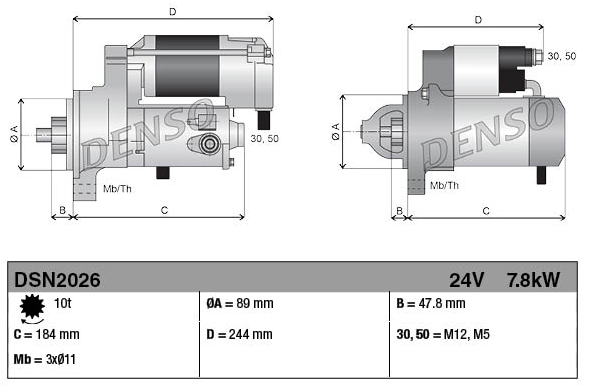

| Holes / PCD | 3 x 11.0mm / - |
| Spacing flange to flywheel | 47.8 mm |
| Installation length | 244.0 mm |
| Fitting diameter | 89.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M12), Terminal 50 (M5) |
| Part number | 3780010119 |
| Reference number | DSN2026 |
| Weight | 11.07 kg |
| EAN | 8717613114124 |
| Condition | New |
