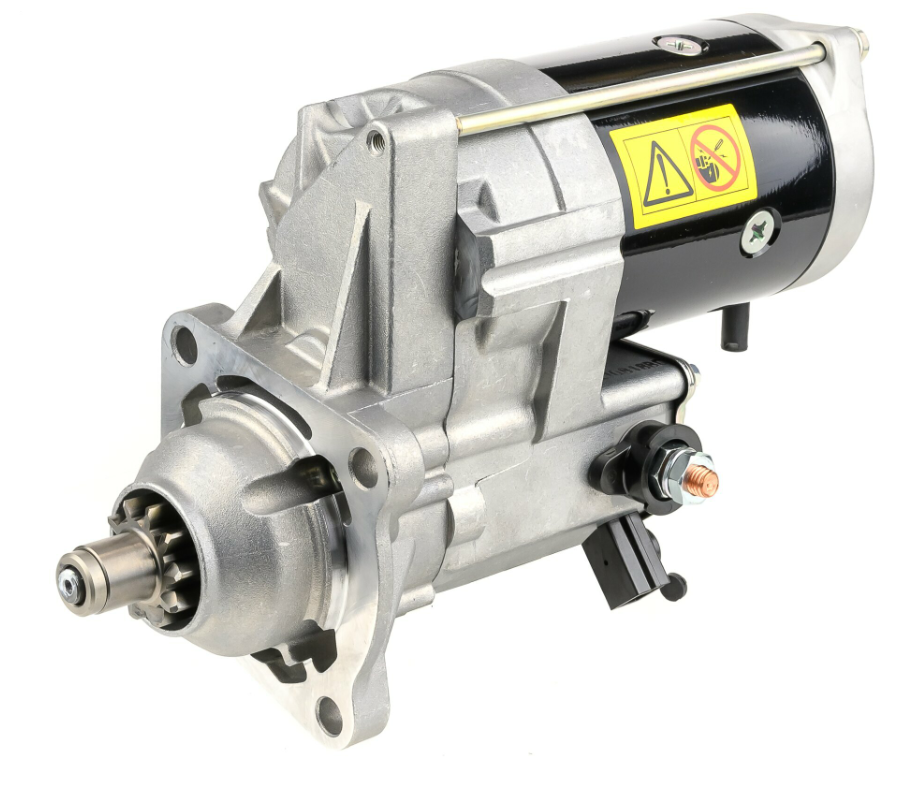

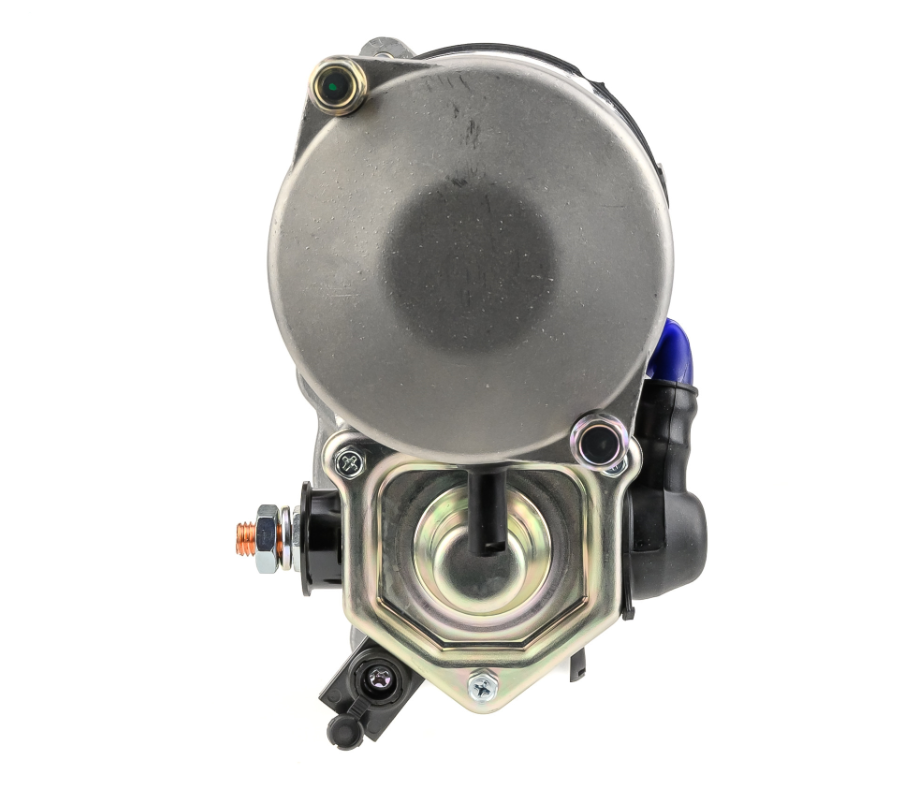

The Denso Gear Reduction Starter Motor is a 24V, 5.5kW starter with a 10-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M10) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing an extensive range of Denso, Komatsu, and Cummins OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting a broad range of Komatsu excavators, wheel loaders, and dozers.
Fitment
| Brand | Series / Type |
|---|---|
| Komatsu | WA320-5, WA320PZ-6, WA380-6 |
| Komatsu | PC210-8, PC230 NHD-8, PC220LC |
| Komatsu | D39EX-21, D39PX-21 |
| Cummins | Not specified |
Key Features
- 24V, 5.5kW gear reduction starter motor
- 10-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M10) and terminal 50 (M5)
- Fits Komatsu WA320, WA380, PC210, PC220, PC230, D39EX, and D39PX
- Cross-references sixteen OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2001 | Reference number |
| 228000-5000 | Denso |
| 228000-5001 | Denso |
| 228000-5002 | Denso |
| 228000-5003 | Denso |
| 228000-5004 | Denso |
| 228000-5050 | Denso |
| 228000-5051 | Denso |
| 228000-5052 | Denso |
| 228080-5004 | Denso |
| 6738-82-6810 | Komatsu |
| 600-863-5111 | Komatsu |
| 3282626 | Cummins |
| 3863129 | Cummins |
| 3957596 | Cummins |
| 4064170 | Cummins |

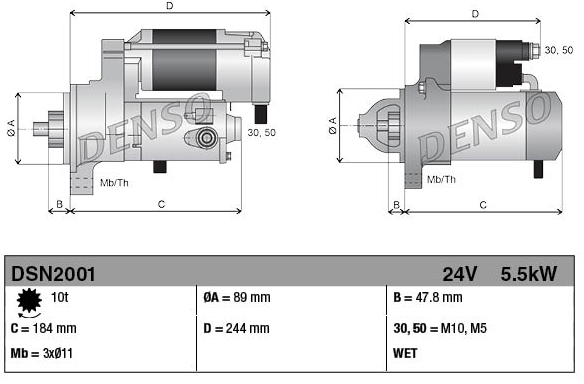

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 24 V |
| Nominal power | 5.5 kW |
| No. of pinion teeth | 10 |
| Holes / PCD | 3 x 11.0mm / - |
| Spacing flange to flywheel | 47.8 mm |
| Installation length | 244.0 mm |
| Fitting diameter | 89.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M10), Terminal 50 (M5) |
| Part number | 3780010095 |
| Weight | 10.76 kg |
| Condition | New |
