Denso Gear Reduction Starter Motor 24V 5.5kW 11T - Isuzu
Denso Gear Reduction Starter Motor 24V 5.5kW 11T - Isuzu is backordered and will ship as soon as it is back in stock.
Delivery and Shipping info
Delivery and Shipping info
- Standard delivery (2-4 working days) - £4.99 on eligible UK mainland orders under £50.
- Express delivery - £6.99 on eligible UK mainland orders placed before 2pm.
- Large equipment including international orders are subject to different delivery rates and timescales.
Returns
Returns
Start Your Return Online (Recommended)
- Log In: Sign into your account on our website.
- Select Order: Navigate to your order history and select the item you wish to return.
- Initiate Return: Follow the simple prompts to start your return.

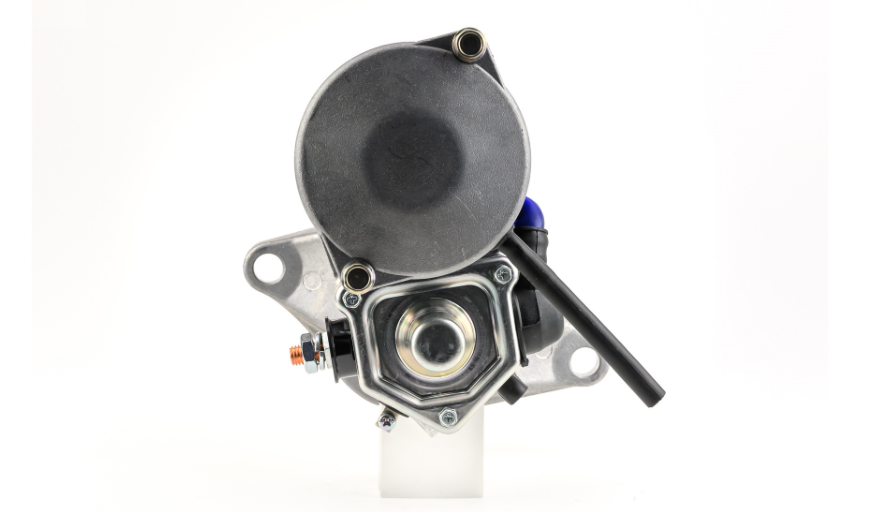

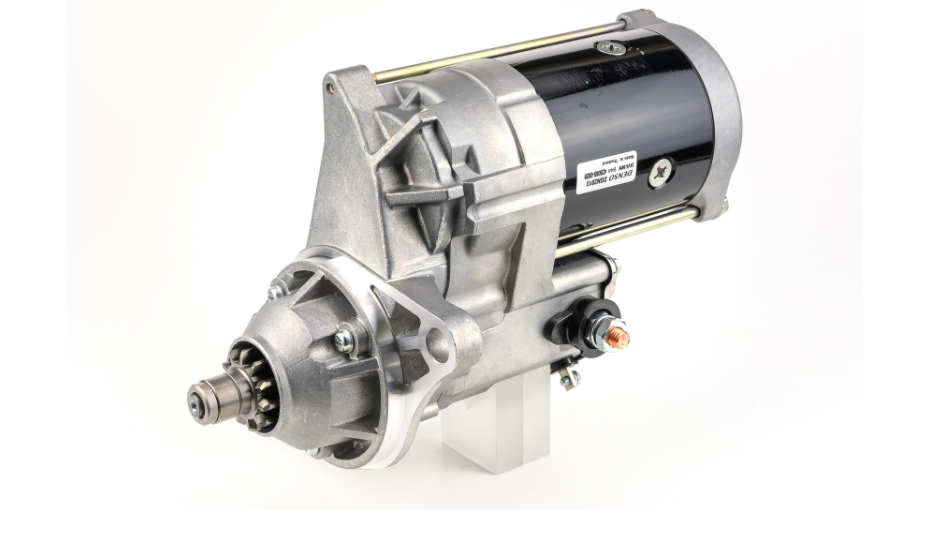

The Denso Gear Reduction Starter Motor is a 24V, 5.5kW starter with an 11-tooth pinion, type GR, supplied with anti-clockwise rotation. It is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing Denso and Isuzu OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance.
Fitment
| Brand | Series / Type |
|---|---|
| Isuzu | Not specified |
Key Features
- 24V, 5.5kW gear reduction starter motor
- 11-tooth pinion
- Type GR
- Anti-clockwise rotation
- Cross-references six OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 128000-2450 | Denso |
| 128000-2451 | Denso |
| 428000-0820 | Denso |
| 428080-0820 | Denso |
| 1-81100230-2 | Isuzu |
| 1-81100422-0 | Isuzu |

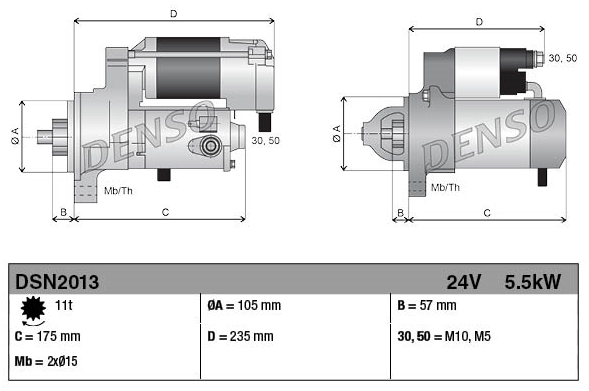

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 24 V |
| Nominal power | 5.5 kW |
| No. of pinion teeth | 11 |
| Spacing flange to flywheel | 57.0 mm |
| Installation length | 235.0 mm |
| Fitting diameter | 105.0 mm |
| Direction of rotation | Anti-clockwise |
| Part number | 3780010106 |
| Reference number | DSN2013 |
| Weight | 10.95 kg |
| EAN | 8717613113882 |
| Condition | New |
