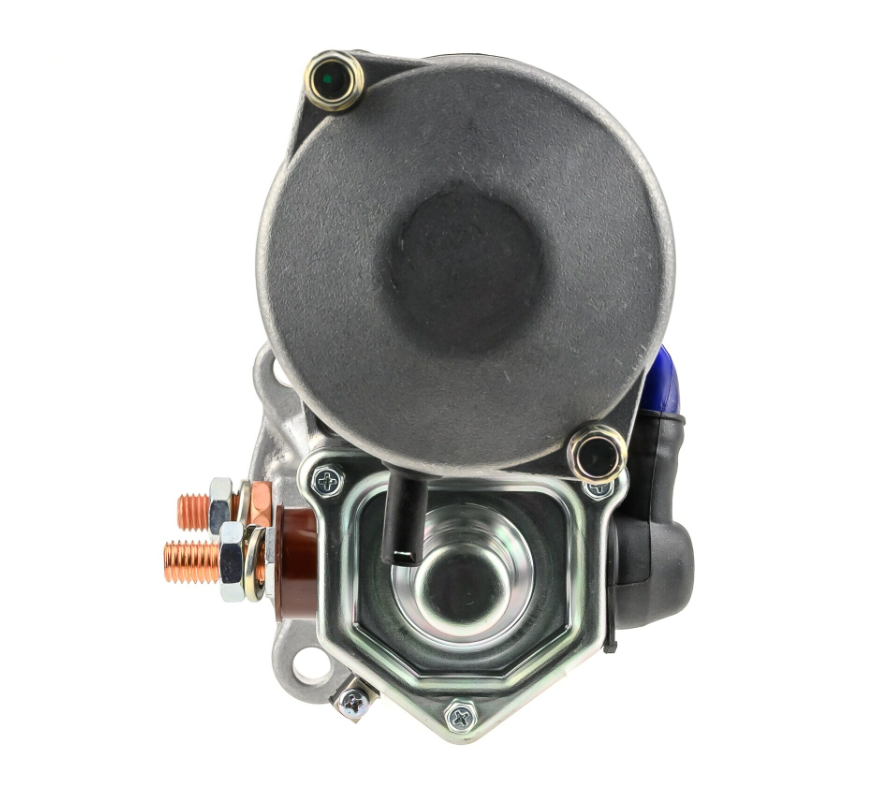

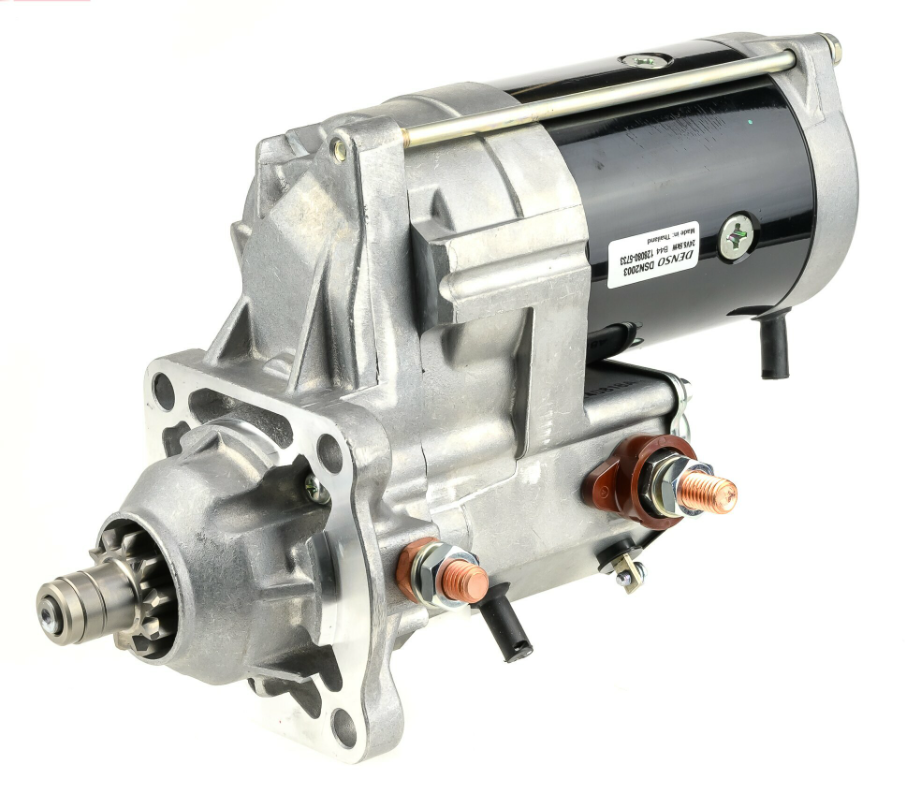

The Denso Gear Reduction Starter Motor is a 24V, 5.5kW starter with a 10-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M12) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing Denso and Caterpillar OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting the Caterpillar 910, 918, and 924 wheel loader range, as well as the CB-434D roller.
Fitment
| Brand | Series / Type |
|---|---|
| Caterpillar | 910E, 910F (1992-1994) |
| Caterpillar | 918F (1992) |
| Caterpillar | 924F (1995-1999) |
| Caterpillar | CB-434D (1999) |
Key Features
- 24V, 5.5kW gear reduction starter motor
- 10-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M12) and terminal 50 (M5)
- Fits Caterpillar 910, 918, 924 wheel loaders and CB-434D roller
- Cross-references three OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 128000-5730 | Denso |
| 128000-5731 | Denso |
| 128000-5732 | Denso |
| 128000-5733 | Denso |
| 128080-5733 | Denso |
| 3E5381 | Caterpillar |
| 8C4774 | Caterpillar |
| 9W3748 | Caterpillar |

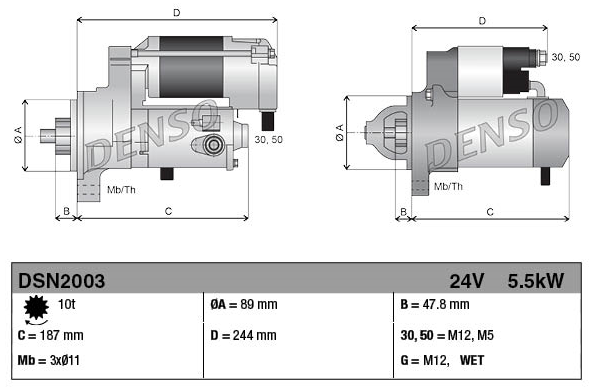

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 24 V |
| Nominal power | 5.5 kW |
| No. of pinion teeth | 10 |
| Holes / PCD | 3 x 11.0mm / - |
| Spacing flange to flywheel | 47.8 mm |
| Installation length | 244.0 mm |
| Fitting diameter | 89.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M12), Terminal 50 (M5) |
| Part number | 3780010097 |
| Reference number | DSN2003 |
| Weight | 10.91 kg |
| EAN | 8717613113738 |
| Condition | New |
