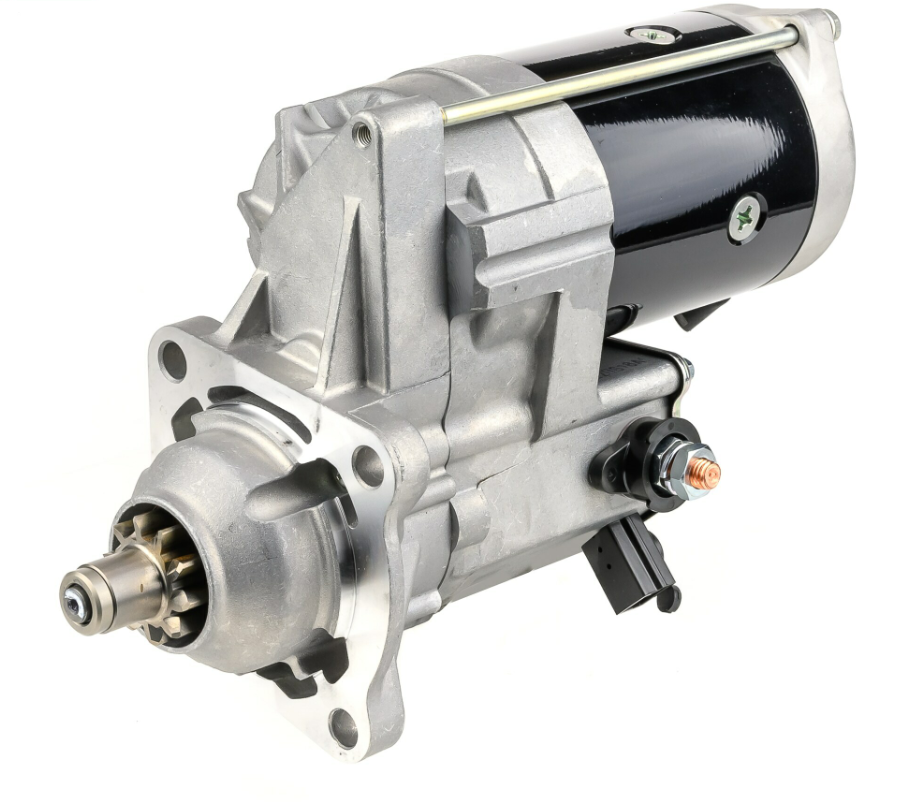

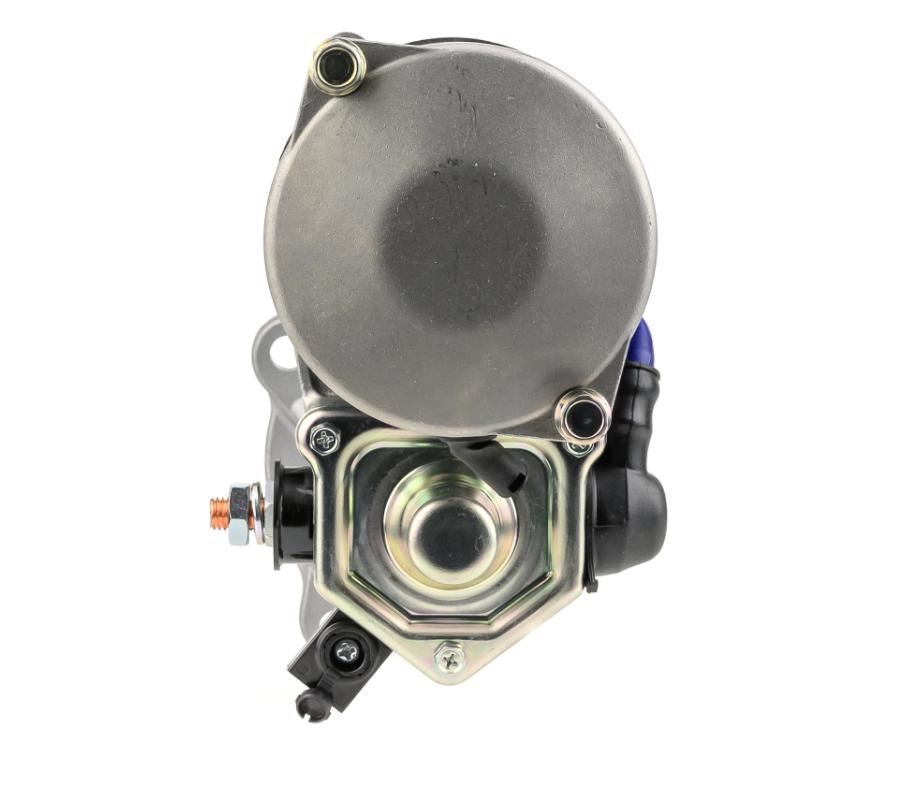

The Denso Gear Reduction Starter Motor is a 24V, 5.5kW starter with a 10-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M10) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing an extensive range of Denso, Case IH, and Cummins OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance.
Fitment
| Brand | Series / Type |
|---|---|
| Case IH | Not specified |
| Cummins | Not specified |
Key Features
- 24V, 5.5kW gear reduction starter motor
- 10-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M10) and terminal 50 (M5)
- Cross-references ten OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 128000-2560 | Denso |
| 128000-2561 | Denso |
| 128000-2562 | Denso |
| 128000-2563 | Denso |
| 128080-2563 | Denso |
| 228000-2200 | Denso |
| 228000-2201 | Denso |
| 1987566C1 | Case IH |
| D129494 | Case IH |
| 3924466 | Cummins |

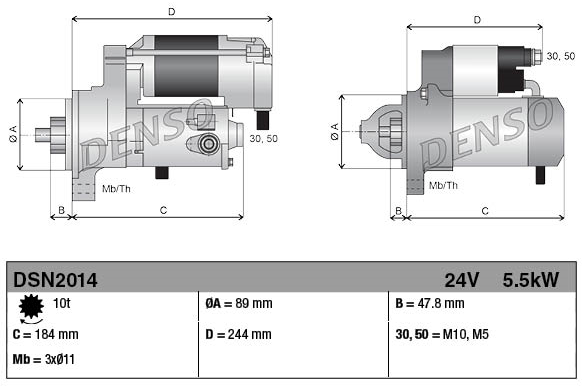

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 24 V |
| Nominal power | 5.5 kW |
| No. of pinion teeth | 10 |
| Holes / PCD | 3 x 11.0mm / - |
| Spacing flange to flywheel | 47.8 mm |
| Installation length | 244.0 mm |
| Fitting diameter | 89.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M10), Terminal 50 (M5) |
| Part number | 3780010107 |
| Reference number | DSN2014 |
| Weight | 10.78 kg |
| EAN | 8717613113899 |
| Condition | New |
