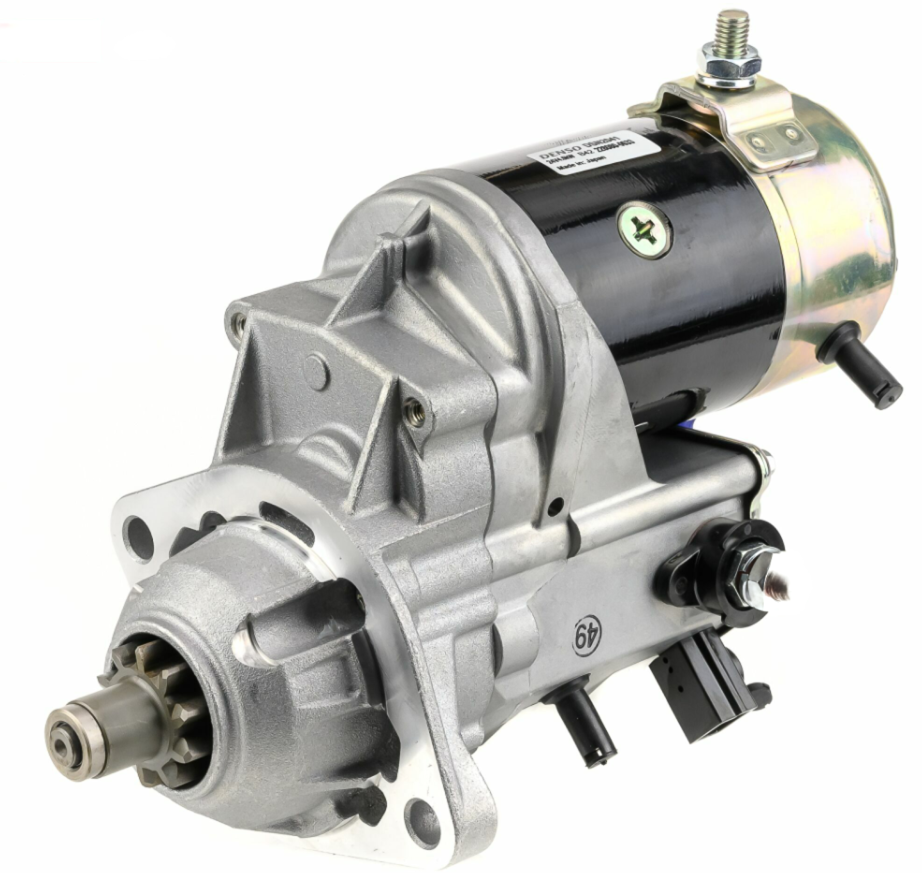

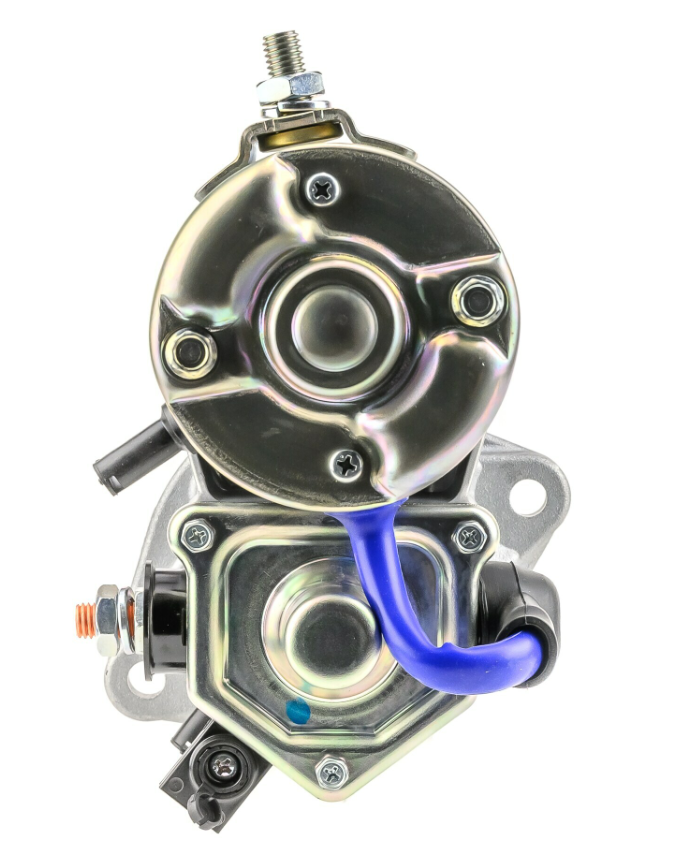

The Denso Gear Reduction Starter Motor is a 24V, 4.5kW starter with a 10-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M10) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing an extensive range of Denso, Hitachi, and Cummins OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting the Hitachi ZW140 and ZW150 wheel loaders.
Fitment
| Brand | Series / Type |
|---|---|
| Hitachi | ZW140, ZW150 |
| Cummins | Not specified |
Key Features
- 24V, 4.5kW gear reduction starter motor
- 10-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M10) and terminal 50 (M5)
- Fits Hitachi ZW140 and ZW150 wheel loaders
- Cross-references seventeen OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 228000-0630 | Denso |
| 228000-0631 | Denso |
| 228000-0632 | Denso |
| 228000-0633 | Denso |
| 228000-1750 | Denso |
| 228000-1751 | Denso |
| 228000-1752 | Denso |
| 228000-1753 | Denso |
| 228000-7902 | Denso |
| 228080-0633 | Denso |
| K3957593 | Hitachi |
| 3920644 | Cummins |
| 3922474 | Cummins |
| 3934119 | Cummins |
| 3957592 | Cummins |
| 3957593 | Cummins |
| 3970101 | Cummins |

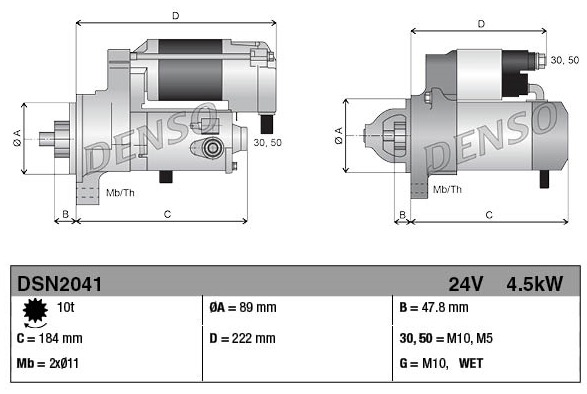

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 24 V |
| Nominal power | 4.5 kW |
| No. of pinion teeth | 10 |
| Holes / PCD | 2 x 11.0mm / - |
| Spacing flange to flywheel | 47.8 mm |
| Installation length | 222.0 mm |
| Fitting diameter | 89.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M10), Terminal 50 (M5) |
| Part number | 3780010130 |
| Weight | 8.87 kg |
| Condition | New |
