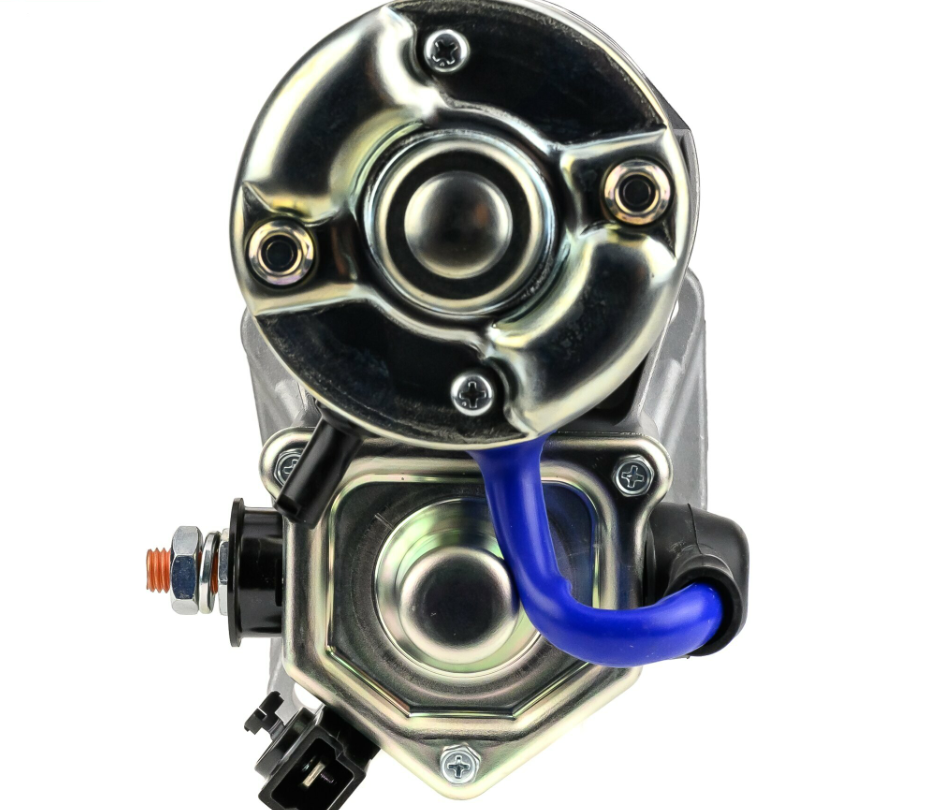

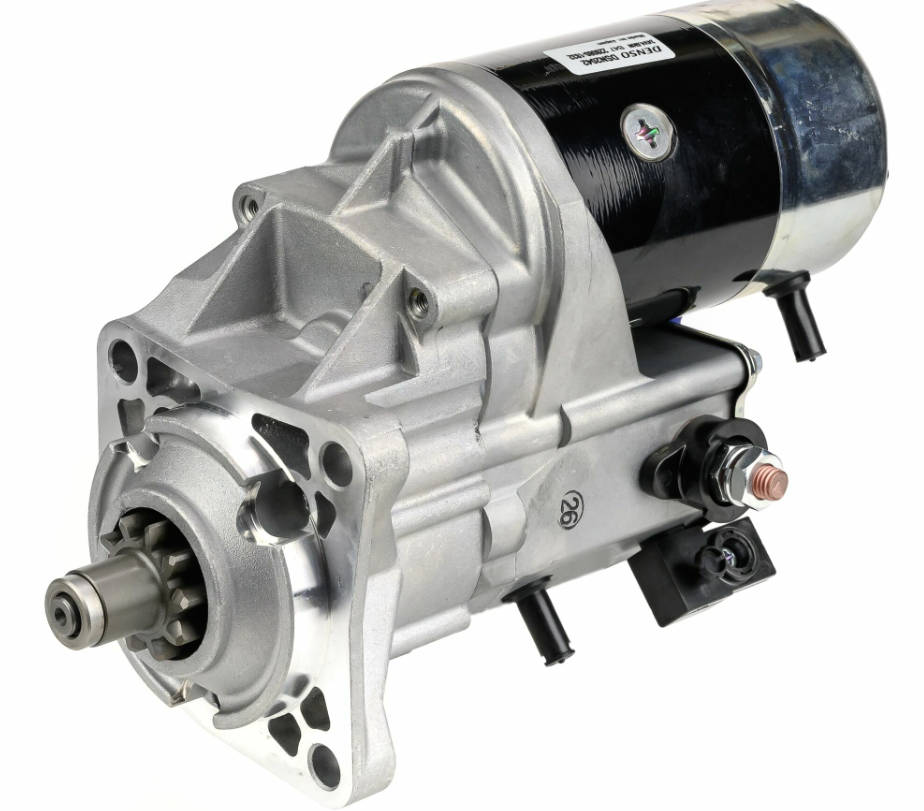

The Denso Gear Reduction Starter Motor is a 24V, 4.5kW starter with a 10-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M10) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing Denso and Caterpillar OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting the Caterpillar 914G, 924GZ, 928G, 930G, IT14G, and IT28G wheel loader range.
Fitment
| Brand | Series / Type |
|---|---|
| Caterpillar | 914G (1995-2004), 924GZ (2000-2006) |
| Caterpillar | 928G (1996), 930G (2003-2007) |
| Caterpillar | IT14G, IT28G |
Key Features
- 24V, 4.5kW gear reduction starter motor
- 10-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M10) and terminal 50 (M5)
- Fits Caterpillar 914G, 924GZ, 928G, 930G, IT14G, and IT28G wheel loaders
- Cross-references two OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 228000-1830 | Denso |
| 228000-1831 | Denso |
| 228000-1832 | Denso |
| 228080-1832 | Denso |
| 100-6929 | Caterpillar |
| 143-0541 | Caterpillar |

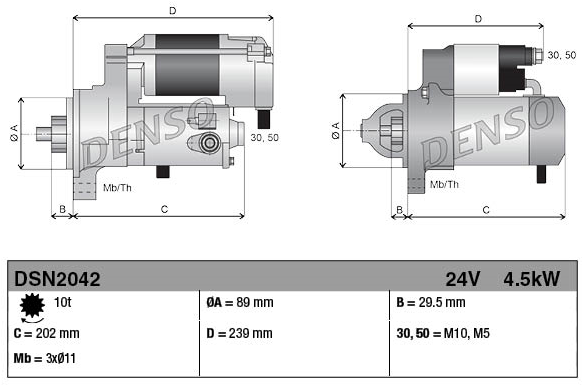

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 24 V |
| Nominal power | 4.5 kW |
| No. of pinion teeth | 10 |
| Holes / PCD | 3 x 11.0mm / - |
| Spacing flange to flywheel | 29.5 mm |
| Installation length | 239.0 mm |
| Fitting diameter | 89.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M10), Terminal 50 (M5) |
| Part number | 3780010131 |
| Reference number | DSN2042 |
| Weight | 8.94 kg |
| EAN | 8717613113844 |
| Condition | New |
