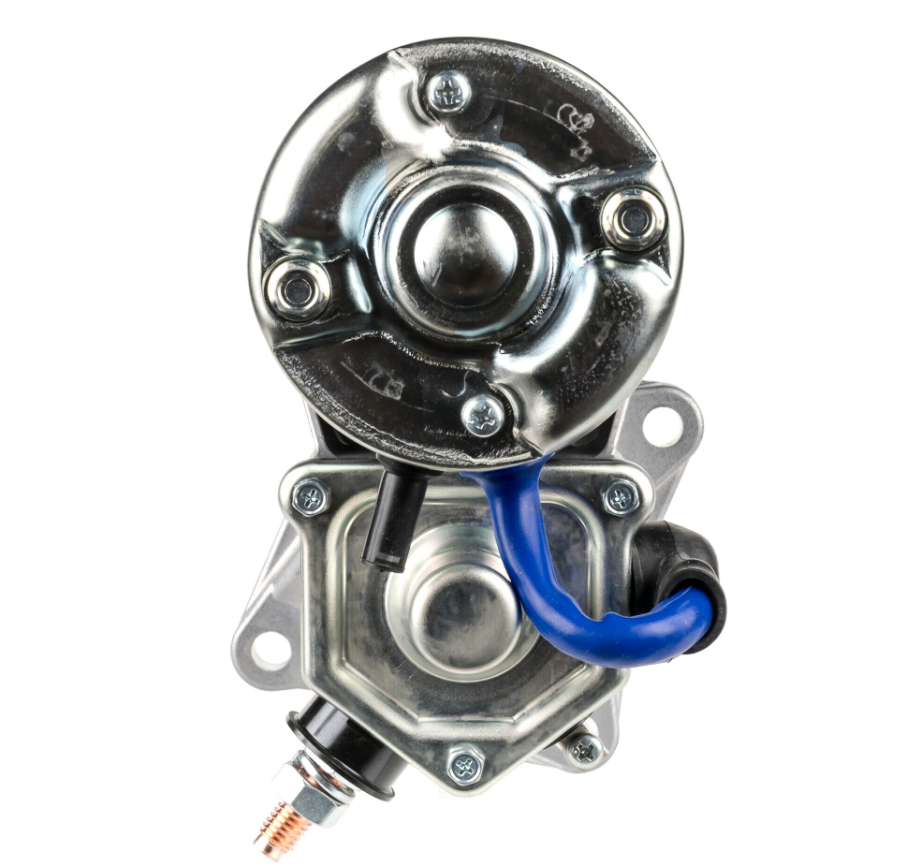

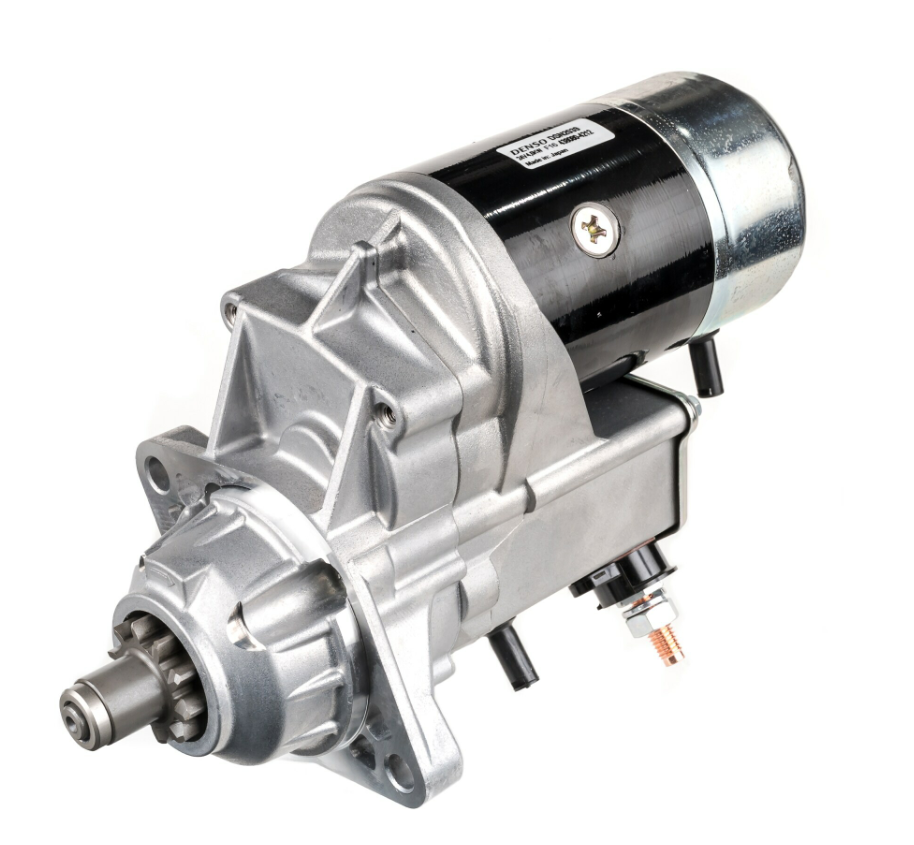

The Denso Gear Reduction Starter Motor is a 24V, 4.5kW starter with a 10-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M10) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing two OE reference numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting the Case IH AF (Axial-Flow) combine harvester series as well as a broad range of IVECO commercial vehicles across the Eurotech MH, Eurotrakker, Stralis, and Trakker ranges.
Fitment
| Brand | Series | Year Range |
|---|---|---|
| Case IH | AF (Axial-Flow) 7010, 7120 | Not specified |
| IVECO | Eurotech MH | 1998-1999 |
| IVECO | Eurotrakker | 1999-2004 |
| IVECO | Stralis | 2003-2007 |
| IVECO | Trakker | 2004-2012 |
Key Features
- 24V, 4.5kW gear reduction starter motor
- 10-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M10) and terminal 50 (M5)
- Fits Case IH AF (Axial-Flow) 7010 and 7120 combine harvesters
- Fits a broad range of IVECO commercial vehicles across four model ranges
- Cross-references two OE reference numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2039 | Reference number |
| 99432760 | Reference number |
Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 24 V |
| Nominal power | 4.5 kW |
| No. of pinion teeth | 10 |
| Holes / PCD | 3 x 11.0mm / - |
| Spacing flange to flywheel | 49.0 mm |
| Installation length | 183.0mm / 220.0mm |
| Fitting diameter | 89.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M10), Terminal 50 (M5) |
| Part number | 3780010175 |
| Weight | 8.84 kg |
| Condition | New |
