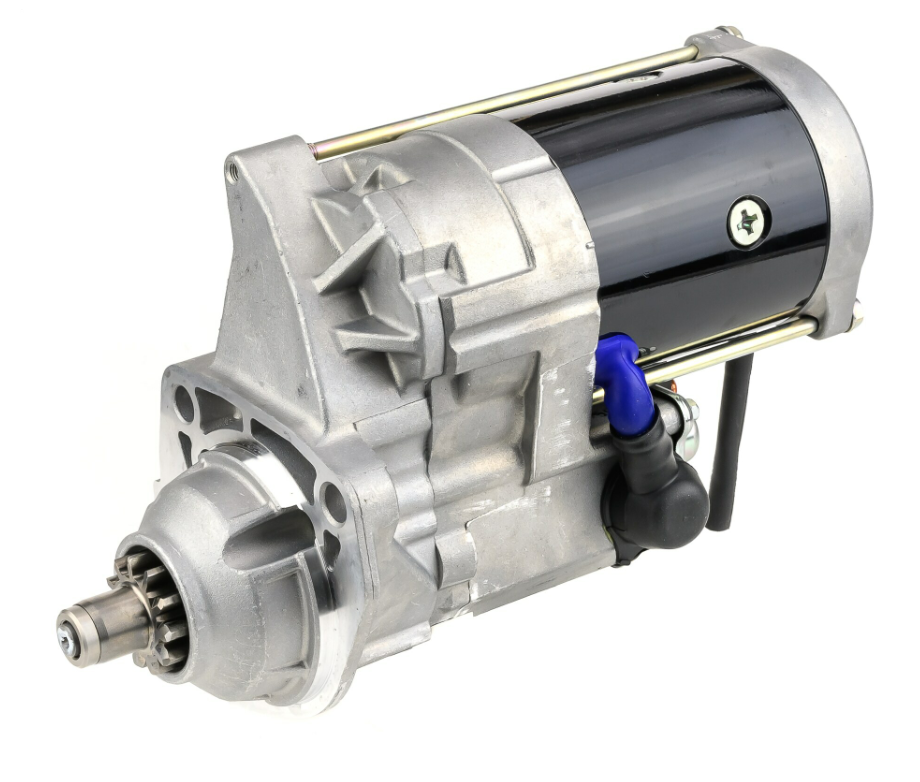

The Denso Gear Reduction Starter Motor is a 12V, 5.0kW starter with an 11-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M12) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing an extensive range of Denso and John Deere OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting a broad range of John Deere tractors and combines across the 8R, 9R, 7000, 8000, 9030, S, STS, T, W, and WTS series.
Fitment
| Brand | Series / Type |
|---|---|
| John Deere | 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8295RT, 8310R, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8370R, 8370RT |
| John Deere | 9370R |
| John Deere | 7250, 7180 |
| John Deere | 8100, 8200 |
| John Deere | 8130, 8230, 8230T, 8330, 8330T, 8430, 8430T, 8530 |
| John Deere | 9230 |
| John Deere | C 670 |
| John Deere | CTS 9780 |
| John Deere | S 560, S 660, S 670 |
| John Deere | STS 9560, STS 9670, STS 9770 |
| John Deere | T560, T660, T670 |
| John Deere | W650, W660 |
| John Deere | WTS 9540i, WTS 9560i, WTS 9580i, WTS 9640, WTS 9660, WTS 9680 |
Key Features
- 12V, 5.0kW gear reduction starter motor
- 11-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M12) and terminal 50 (M5)
- Fits an extensive range of John Deere tractors and combines
- Cross-references five OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2022 | Reference number |
| 428000-3320 | Denso |
| 428080-3320 | Denso |
| SE501867 | John Deere |
| RE529661 | John Deere |
| RE528619 | John Deere |
| RE520634 | John Deere |

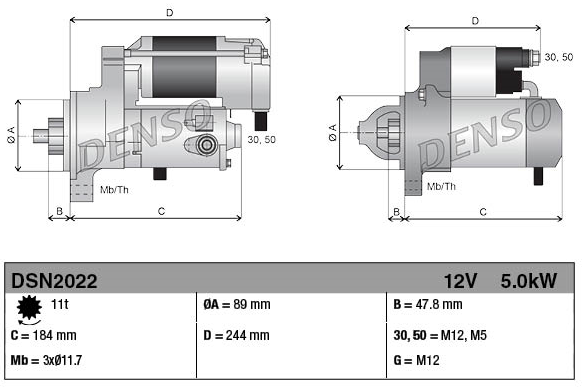

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 5.0 kW |
| No. of pinion teeth | 11 |
| Holes / PCD | 3 x 11.7mm |
| Spacing flange to flywheel | 47.8 mm |
| Installation length | 244.0 mm |
| Fitting diameter | 89.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M12), Terminal 50 (M5) |
| Part number | 3780010115 |
| Weight | 11.39 kg |
| Condition | New |
