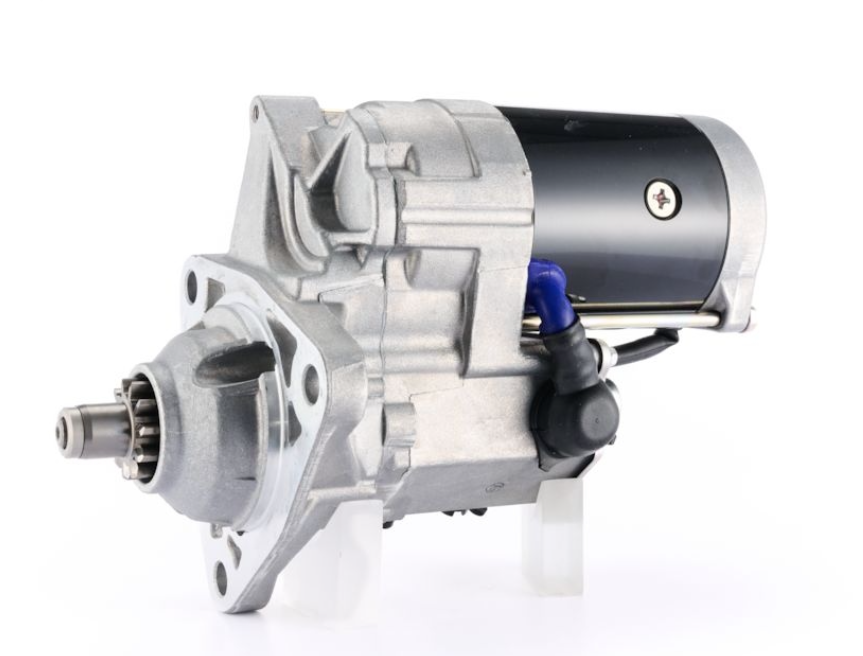

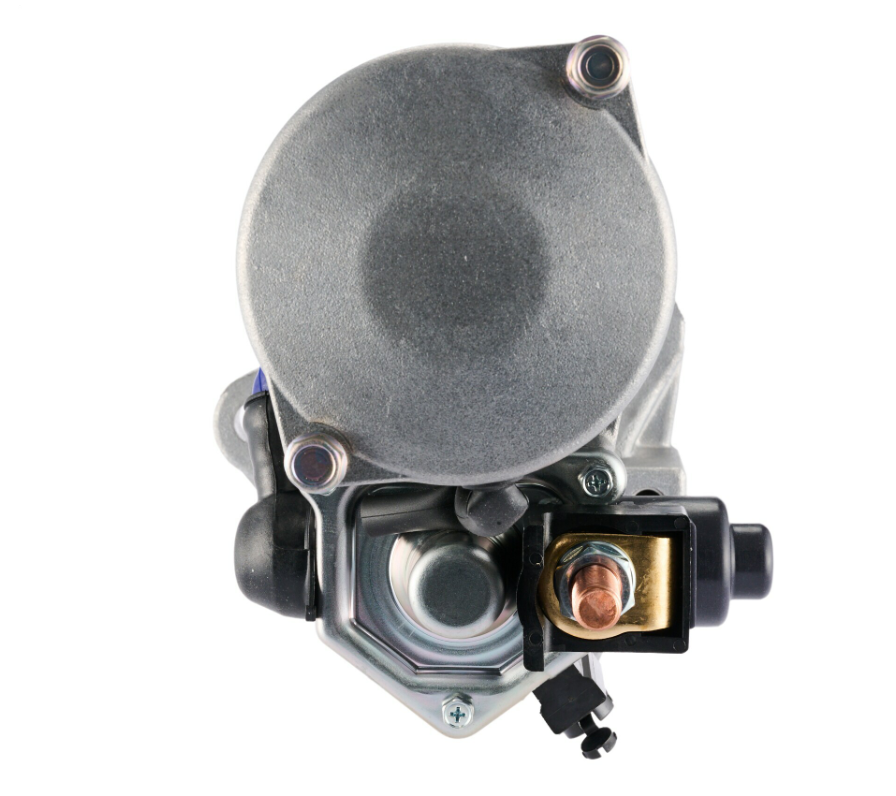

The Denso Gear Reduction Starter Motor is a 12V, 5.0kW starter with an 11-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M12) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing an extensive range of John Deere OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting an extensive range of John Deere large-frame tractors and combines across the 9R, 7000, 8000, 9000, 9030, S, and STS series.
Fitment
| Brand | Series / Type |
|---|---|
| John Deere | 9410R, 9420R, 9460R, 9460RT, 9470R, 9470RT, 9470RX, 9510R, 9510RT, 9520R, 9520RT, 9520RX, 9560R, 9560RT, 9570R, 9570RT, 9570RX |
| John Deere | 7350, 7450, 7550, 7750 |
| John Deere | 7280, 7380, 7480, 7580, 7780 |
| John Deere | 8300, 8400, 8500, 8600 |
| John Deere | 9600 |
| John Deere | 9330, 9430, 9430T, 9530, 9530T, 9630, 9630T |
| John Deere | S 680, S 685, S 690 |
| John Deere | STS 9870 |
Key Features
- 12V, 5.0kW gear reduction starter motor
- 11-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M12) and terminal 50 (M5)
- Fits an extensive range of John Deere large-frame tractors and combines
- Cross-references four OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2019 | Reference number |
| RE539584 | John Deere |
| RE536498 | John Deere |
| RE533091 | John Deere |

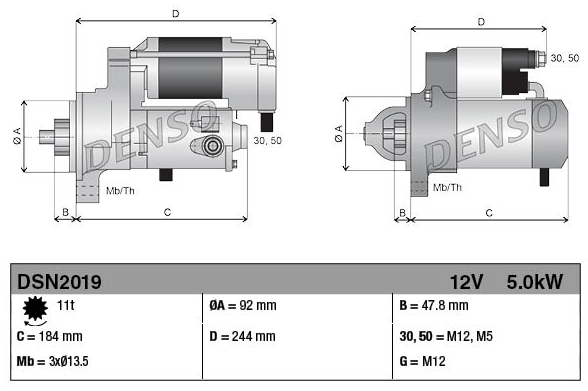

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 5.0 kW |
| No. of pinion teeth | 11 |
| Holes / PCD | 3 x 13.5mm |
| Spacing flange to flywheel | 47.8 mm |
| Installation length | 244.0 mm |
| Fitting diameter | 92.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M12), Terminal 50 (M5) |
| Part number | 3780010112 |
| Weight | 11.37 kg |
| Condition | New |
