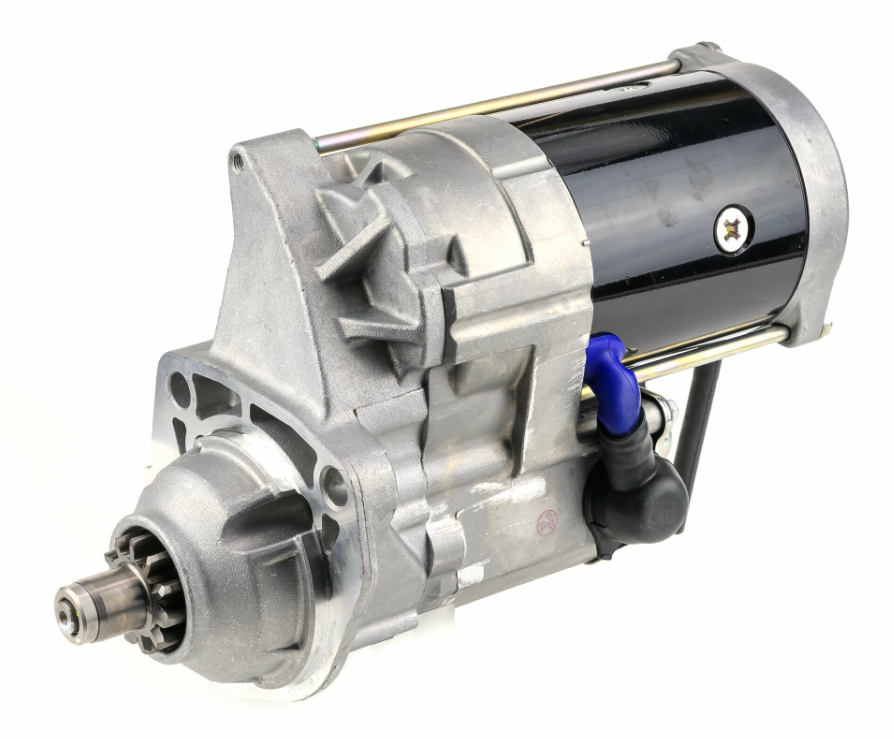

Denso Gear Reduction Starter Motor 12V 5.0kW - JD 7000/8000 Series
Denso Gear Reduction Starter Motor 12V 5.0kW - JD 7000/8000 Series is backordered and will ship as soon as it is back in stock.
Delivery and Shipping info
Delivery and Shipping info
- Standard delivery (2-4 working days) - £4.99 on eligible UK mainland orders under £50.
- Express delivery - £6.99 on eligible UK mainland orders placed before 2pm.
- Large equipment including international orders are subject to different delivery rates and timescales.
Returns
Returns
Start Your Return Online (Recommended)
- Log In: Sign into your account on our website.
- Select Order: Navigate to your order history and select the item you wish to return.
- Initiate Return: Follow the simple prompts to start your return.
The Denso Gear Reduction Starter Motor is a 12V, 5.0kW starter with an 11-tooth pinion, type GR, supplied with clockwise rotation. It connects via terminal 30 (M12) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing an extensive range of Denso and John Deere OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting an extensive range of John Deere tractors and combines across the 8R, 9R, and legacy 22, 6010, 6050, 7000, 8000, 9030, C, CTS, S, STS, T, W, WTS, and Z series.
Fitment
| Brand | Series / Type |
|---|---|
| John Deere | 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8295RT, 8310R, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8370R, 8370RT |
| John Deere | 9370R |
| John Deere | 2256, 2258, 2264, 2266 |
| John Deere | 6610 |
| John Deere | 6650 |
| John Deere | 7200, 7300, 7400, 7500, 7600 |
| John Deere | 7405 |
| John Deere | 7610, 7710, 7810 |
| John Deere | 7720, 7820, 7920 |
| John Deere | 7730, 7830, 7930 |
| John Deere | 7180 |
| John Deere | 7210 |
| John Deere | 8100, 8200 |
| John Deere | 8100T, 8200T, 8300, 8300T, 8400, 8400T |
| John Deere | 8110, 8110T, 8210, 8210T, 8310, 8310T, 8410, 8410T |
| John Deere | 8120, 8120T, 8220, 8220T, 8320, 8320T, 8420, 8420T, 8520, 8520T |
| John Deere | 8130, 8230, 8230T, 8330, 8330T, 8430, 8430T, 8530 |
| John Deere | 9230 |
| John Deere | C 670 |
| John Deere | CTS, CTS 9650, CTS 9780, CTS II |
| John Deere | S 560, S 660, S 670, S7 700 |
| John Deere | STS 9560, STS 9670, STS 9770 |
| John Deere | T550, T560, T660, T670 |
| John Deere | W540, W550, W650, W660 |
| John Deere | WTS 9540, WTS 9540i, WTS 9560, WTS 9560i, WTS 9580, WTS 9580i, WTS 9640, WTS 9660, WTS 9680 |
| John Deere | 2056, 2058, 2064, 2066 |
Key Features
- 12V, 5.0kW gear reduction starter motor
- 11-tooth pinion
- Type GR
- Clockwise rotation
- Dual terminal connection: terminal 30 (M12) and terminal 50 (M5)
- Fits an extensive range of John Deere tractors and combines
- Cross-references ten OE part numbers
OE Reference Numbers
| Part Number | Brand |
|---|---|
| DSN2021 | Reference number |
| RE529661 | John Deere |
| RE528619 | John Deere |
| TY25968 | John Deere |
| SE501422 | John Deere |
| RE70959 | John Deere |
| RE65191 | John Deere |
| RE42670 | John Deere |
| SE501403 | John Deere |
| TY6796 | John Deere |

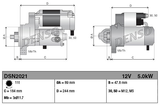

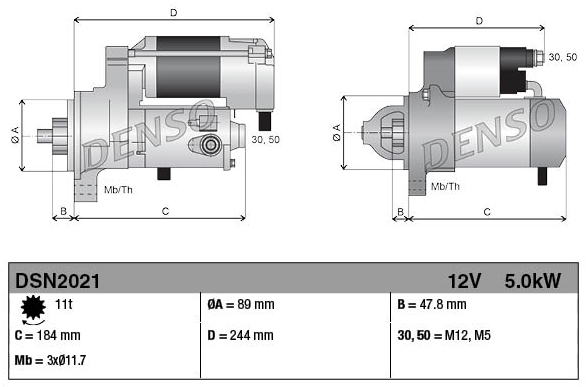

Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 5.0 kW |
| No. of pinion teeth | 11 |
| Holes / PCD | 3 x 11.7mm / - |
| Spacing flange to flywheel | 47.8 mm |
| Installation length | 244.0 mm |
| Fitting diameter | 89.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M12), Terminal 50 (M5) |
| Part number | 3780010114 |
| Weight | 11.20 kg |
| Condition | New |
