Geared Starter Motor - Denso 12V 5.0kW 12T - Cat C9 C9.3 C13
£1,769.95 excl VAT
Geared Starter Motor - Denso 12V 5.0kW 12T - Cat C9 C9.3 C13 is ordered in from the supplier and will be dispatched as soon as it arrives.

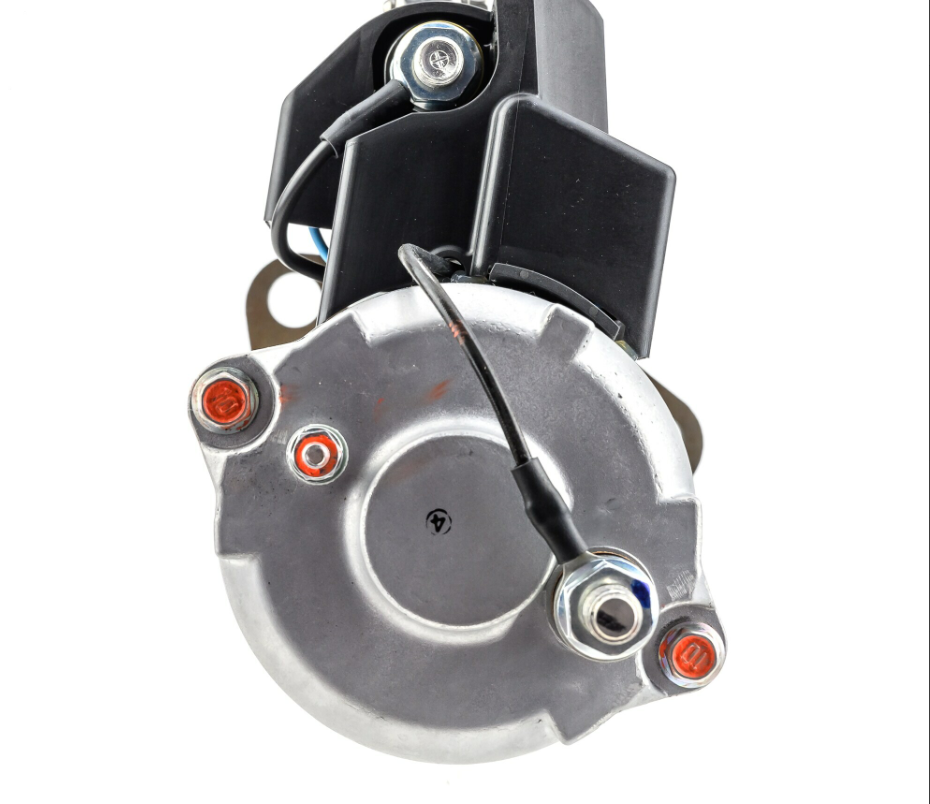

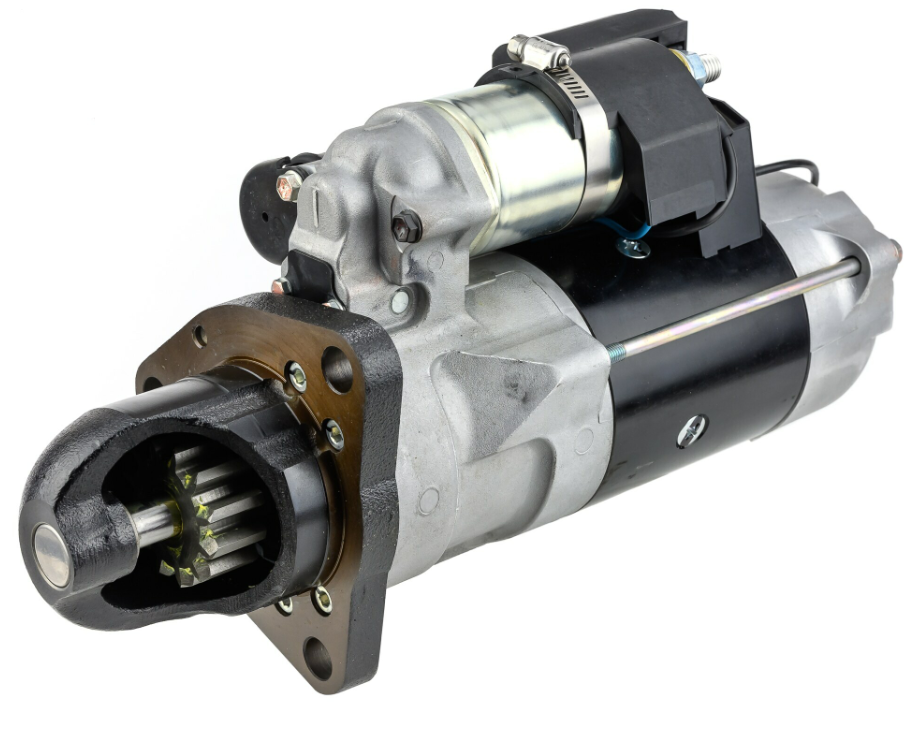

The Denso Gear Reduction Starter Motor is a 12V, 5.0kW starter with a 12-tooth pinion, supplied with clockwise rotation. It connects via terminal 30 (M14) and terminal 50 (M5), and is a direct fit replacement using original manufacturer specifications for mounting and installation dimensions.
Cross-referencing Denso and Caterpillar OE part numbers, this starter is engineered to original fitment standards for reliable, high-torque starting performance, suiting the Caterpillar C13, C9, and C9.3 engine range.
Key Features
- 12V, 5.0kW gear reduction starter motor
- 12-tooth pinion
- Clockwise rotation
- Dual terminal connection: terminal 30 (M14) and terminal 50 (M5)
- Fits Caterpillar C13, C9, and C9.3 engines
- Cross-references two OE part numbers
Fitment
| Brand | Engine | Power |
|---|---|---|
| Caterpillar | C13 | 388kW (519PS) |
| Caterpillar | C9 | 280kW (375PS) |
| Caterpillar | C9.3 | 298kW (400PS) |
OE Reference Numbers
| Part Number | Brand |
|---|---|
| 249-3681 | Caterpillar |
| 428000-3630 | Denso |
| 428080-3630 | Denso |
Specifications
| Specification | Detail |
|---|---|
| Type | Gear Reduction Starter Motor |
| Nominal voltage | 12 V |
| Nominal power | 5.0 kW |
| No. of pinion teeth | 12 |
| Holes / PCD | 3 x 16.7mm / - |
| Spacing flange to flywheel | 46.8 mm |
| Installation length | 242.0 mm |
| Fitting diameter | 92.0 mm |
| Direction of rotation | Clockwise |
| Connection | Terminal 30 (M14), Terminal 50 (M5) |
| Part number | 3780010152 |
| Reference number | DSN2070 |
| Weight | 19.01 kg |
| EAN | 8717613113851 |
| Condition | New |
